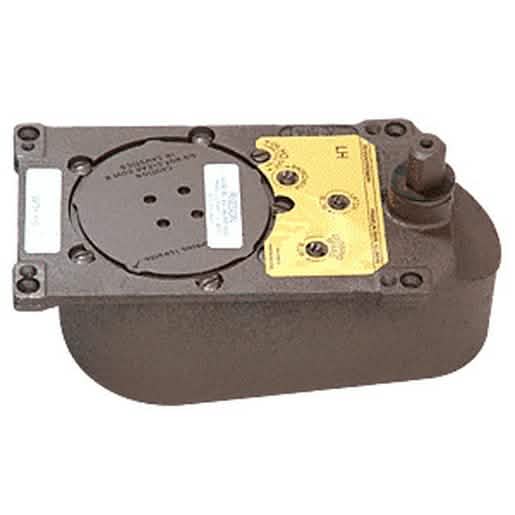

Rixson® 27 Series Left Hand 3/4" Offset 105º Selective Hold Open Floor Mounted Closer Body Only
Rixson® 27 Series Left Hand 3/4" Offset 105º Selective Hold Open Floor Mounted Closer Body Only
Regular price
$2,432.49 CAD
Regular price
Sale price
$2,432.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 27105SH0LHB0DY
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable | Hydraulic Backcheck Yes |
| Body Height 4-1/16 in. | (103.2 mm) |
| Body Length 11-1/8 in. | (282.6 mm) |
| Body Width 5-7/8 in. | (149.2 mm) |
| Brand | Rixson |
| Built | In Positive Dead Stop Yes |
| Certification ANSI | 156.4 Grade 1 |
| Closer | Body Only Yes |
| Closer | Type Floor Closer |
| Door | Height May Require Intermediate Pivots Yes |
| Door Opening | 105 ° |
| Handing | Left Hand |
| Hold Open | 105 |
| Independent | Closing and Latching Valves Yes |
| Interior | Or Exterior Doors Yes |
| Maximum Door Width - Exterior 48 in. | (1219.2 mm) |
| Maximum Door Width - Interior 48 in. | (1219.2 mm) |
| Maximum Weight Center Hung 450 lbs. | (204.1 kg) |
| Non | Stocked Parts and Acessories Special Order Yes |
| Recommended | Door Type Aluminum, Hollow Metal |
| Selective | Hold Open Yes |
| Series | 27 |
| Similar CRL | 8370, CRL8372, J993HOD, J994HOD, J990NHOD |
| U | L Listed Yes |
Overview
The Rixson® Model 27 Offset Floor Mounted Door Closer is the ultimate solution for effectively managing doors, supporting both exterior and interior doors weighing up to 450 lbs.
(204 kg) and 48" (1.22 m) wide.
This high-performance door closer features a direct connection between the bottom arm and the floor closer spindle, enhancing closing efficiency significantly compared to surface or overhead concealed closers.
Key features include selective on or off hold open, built-in positive dead stop, and separate independent valves for precise adjustments.
As a trusted Rixson® Specialty Door Control Distributor, CRL offers optional accessories and additional finishes upon request.
For expert assistance, contact our Technical Sales Department.
(204 kg) and 48" (1.22 m) wide.
This high-performance door closer features a direct connection between the bottom arm and the floor closer spindle, enhancing closing efficiency significantly compared to surface or overhead concealed closers.
Key features include selective on or off hold open, built-in positive dead stop, and separate independent valves for precise adjustments.
As a trusted Rixson® Specialty Door Control Distributor, CRL offers optional accessories and additional finishes upon request.
For expert assistance, contact our Technical Sales Department.
Specifications
Templates
