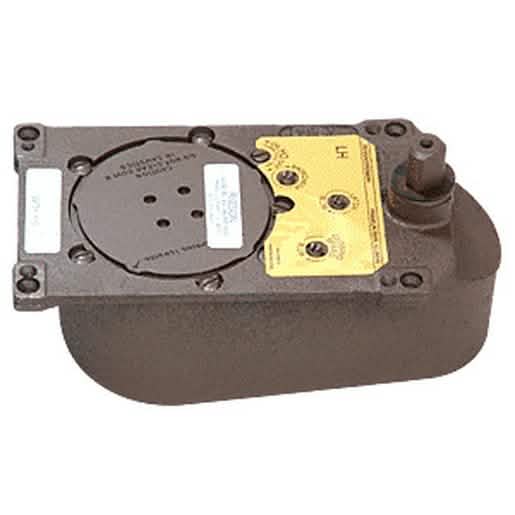

Rixson® 27 Series Left Hand 3/4" Offset 90º Selective Hold Open Floor Mounted Closer Body Only
Rixson® 27 Series Left Hand 3/4" Offset 90º Selective Hold Open Floor Mounted Closer Body Only
Regular price
$2,412.01 CAD
Regular price
Sale price
$2,412.01 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2790SH0LHB0DY
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable | Hydraulic Backcheck Yes |
| Body Height 4-1/16 in. | (103.2 mm) |
| Body Length 11-1/8 in. | (282.6 mm) |
| Body Width 5-7/8 in. | (149.2 mm) |
| Brand | Rixson |
| Built | In Positive Dead Stop Yes |
| Certification ANSI | 156.4 Grade 1 |
| Closer | Body Only Yes |
| Closer | Type Floor Closer |
| Door | Height May Require Intermediate Pivots Yes |
| Door Opening | 90 ° |
| Handing | Left Hand |
| Hold Open | 90 |
| Independent | Closing and Latching Valves Yes |
| Interior | Or Exterior Doors Yes |
| Maximum Door Width - Exterior 48 in. | (1219.2 mm) |
| Maximum Door Width - Interior 48 in. | (1219.2 mm) |
| Maximum Weight Center Hung 450 lbs. | (204.1 kg) |
| Non | Stocked Parts and Acessories Special Order Yes |
| Recommended | Door Type Aluminum, Hollow Metal |
| Selective | Hold Open Yes |
| Series | 27 |
| Similar CRL | 8370, CRL8372, J993HOD, J994HOD, J990NHOD |
| U | L Listed Yes |
Overview
The Rixson® Model 27 Offset Floor Mounted Door Closer is an ideal solution for controlling heavy doors, supporting both exterior and interior doors up to 450 lbs.
(204 kg) and 48" (1.22 m) wide.
This powerful door closer features a direct connection between the bottom arm and floor closer spindle, significantly boosting closing efficiency over traditional surface or overhead concealed closers.
Key features include selectable on or off hold open, a built-in positive dead stop, and independent valves for precise adjustments of closing, latching, and backcheck functions.
As a trusted Rixson® Specialty Door Control Distributor, CRL provides technical sales support and a variety of optional accessories such as floor closer cement cases and offset arms to enhance installation.
For additional finishes and accessories, contact us for a quotation.
(204 kg) and 48" (1.22 m) wide.
This powerful door closer features a direct connection between the bottom arm and floor closer spindle, significantly boosting closing efficiency over traditional surface or overhead concealed closers.
Key features include selectable on or off hold open, a built-in positive dead stop, and independent valves for precise adjustments of closing, latching, and backcheck functions.
As a trusted Rixson® Specialty Door Control Distributor, CRL provides technical sales support and a variety of optional accessories such as floor closer cement cases and offset arms to enhance installation.
For additional finishes and accessories, contact us for a quotation.
Specifications
Templates
