Rixson® 27 Series Right Hand 3/4" Offset 105º Selective Hold Open Floor Mounted Closer Body Only
Rixson® 27 Series Right Hand 3/4" Offset 105º Selective Hold Open Floor Mounted Closer Body Only
Regular price
$2,679.79 CAD
Regular price
Sale price
$2,679.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 27105SH0RHB0DY
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height May Require Intermediate Pivots
Yes
Door Opening
105 °
Handing
Right Hand
Hold Open
105
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 in. (1219.2 mm)
Maximum Door Width - Interior
48 in. (1219.2 mm)
Maximum Weight 3/4 Offset
450 Pounds
Maximum Weight Center Hung
450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Selective Hold Open
Yes
Series
27
Similar
CRL8370, CRL8372, J993HOD, J994HOD, J990NHOD
UL Listed
Yes
Overview
- For exterior or interior doors weighing up to 450 lbs. (204 kg) and 48" (1.22 m) wide
- Selective on/off hold open
- Built-in positive dead stop

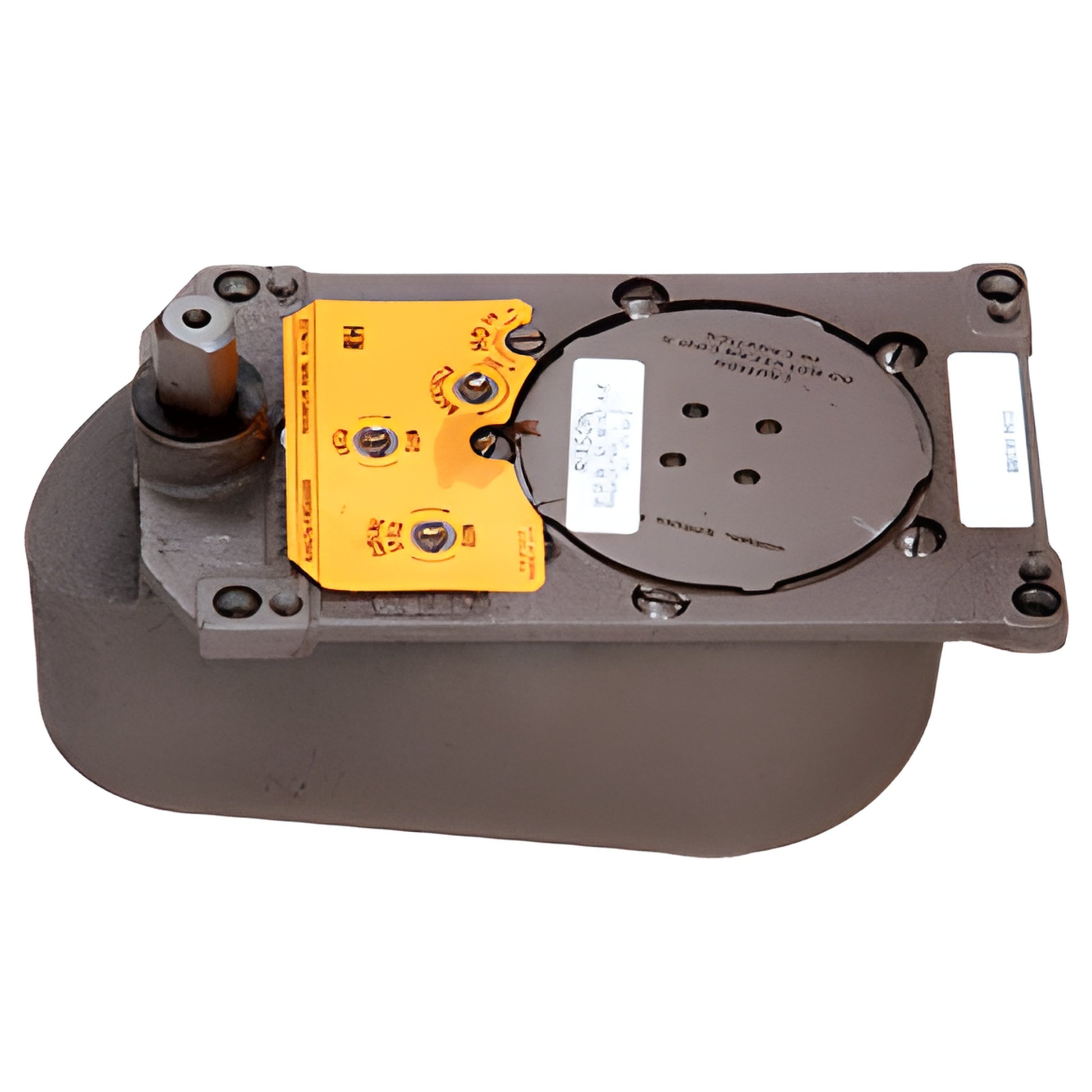

Rixson® Model 27 Offset Floor Mounted Door Closer (SKU: 27105SH0RHB0DY) is a high-efficiency offset floor closer engineered for heavy commercial and residential doors. The bottom arm connects directly to the floor closer spindle so the door weight is supported at the floor, providing superior closing efficiency compared to surface or overhead concealed closers. Ideal as a commercial exterior door closer or interior heavy-door solution where reliable mechanical control is required.
Standard features include selective on/off hold open, built-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments—making this closer a durable choice for high-traffic entrances and heavy-duty applications.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. For Rixson® products or assistance selecting the right finish and accessories, contact our Technical Sales Department.
Optional accessories that may be needed:
- 253000 Floor Closer Cement Case
- 274750RH Closer Cover
- 252050RH Bottom Offset Arm
- R180 Top Offset Pivot
- M19RH Intermediate Offset Pivots
Additional finishes and accessories are available upon request for quotation.
Need help specifying the right Rixson Model 27 offset floor mounted door closer for your project? Contact our Technical Sales Department or add to cart to request a quote.
