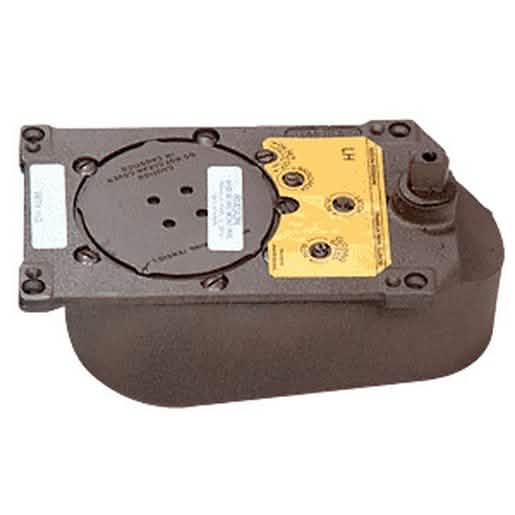

Rixson® 28 Series Center-Hung Left Hand 105º Selective Hold Open Floor Mounted Closer Body Only
Rixson® 28 Series Center-Hung Left Hand 105º Selective Hold Open Floor Mounted Closer Body Only
Regular price
$2,414.57 CAD
Regular price
Sale price
$2,414.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 28105SH0LHB0DY
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Adjustable | Hydraulic Backcheck Yes |
Body Height | 4-1/16 |
Body Length | 11-1/8 |
Body Width | 5-7/8 |
Brand | Rixson |
Built | In Positive Dead Stop Yes |
Certification ANSI | 156.4 Grade 1 |
Closer | Body Only Yes |
Closer | Type Floor Closer |
Door Opening | 105 |
Handing | Left Hand |
Hold Open | 105 |
Independent | Closing and Latching Valves Yes |
Interior | Or Exterior Doors Yes |
Maximum Door Width - Exterior | 48 Inches |
Maximum Door Width - Interior | 48 Inches |
Maximum Weight Center Hung | 350 Pounds |
Non | Stocked Parts and Acessories Special Order Yes |
Recommended | Door Type Aluminum, Hollow Metal |
Selective | Hold Open Yes |
Series | 28 |
Similar CRL | 8370, CRL8372, J993HOD, J994HOD, J990NHOD |
U | L Listed Yes |
Overview
The Rixson® Model 28 Center-Hung Floor Mounted Door Closer is an ideal solution for managing both exterior and interior doors weighing up to 350 lbs.
(158 kg) and measuring 48" (1.22 m) wide.
This door closer boasts features like selective on or off hold open, a built-in positive dead stop, and separate independent valves for closing, latch, and backcheck adjustments, ensuring optimal door control.
The efficient design, which supports the door's weight through a direct connection between the bottom arm and the floor closer spindle, significantly enhances closing efficiency over surface or overhead concealed closers.
As a proud distributor of Rixson® Specialty Door Controls, CRL provides optional accessories such as the Floor Closer Cement Case and Closer Cover.
For further inquiries or additional finishes and accessories, please contact CRL's Technical Sales Department.
(158 kg) and measuring 48" (1.22 m) wide.
This door closer boasts features like selective on or off hold open, a built-in positive dead stop, and separate independent valves for closing, latch, and backcheck adjustments, ensuring optimal door control.
The efficient design, which supports the door's weight through a direct connection between the bottom arm and the floor closer spindle, significantly enhances closing efficiency over surface or overhead concealed closers.
As a proud distributor of Rixson® Specialty Door Controls, CRL provides optional accessories such as the Floor Closer Cement Case and Closer Cover.
For further inquiries or additional finishes and accessories, please contact CRL's Technical Sales Department.
