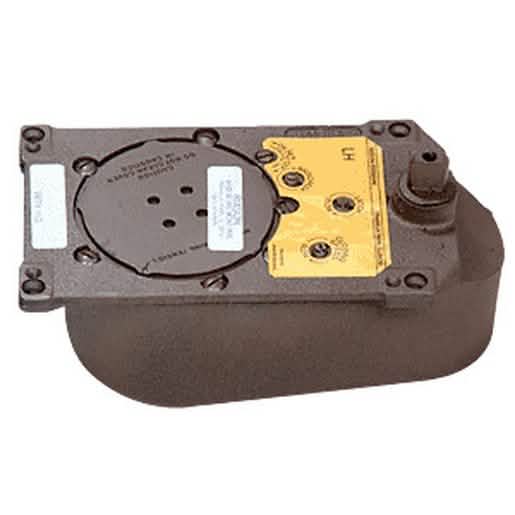

Rixson® 28 Series Center-Hung Left Hand 90º Selective Hold Open Floor Mounted Closer Body Only
Rixson® 28 Series Center-Hung Left Hand 90º Selective Hold Open Floor Mounted Closer Body Only
Regular price
$2,414.57 CAD
Regular price
Sale price
$2,414.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2890SH0LHB0DY
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable | Hydraulic Backcheck Yes |
| Body Height 4-1/16 in. | (103.2 mm) |
| Body Length 11-1/8 in. | (282.6 mm) |
| Body Width 5-7/8 in. | (149.2 mm) |
| Brand | Rixson |
| Built | In Positive Dead Stop Yes |
| Certification ANSI | 156.4 Grade 1 |
| Closer | Body Only Yes |
| Closer | Type Floor Closer |
| Door Height 102 in. | (2590.8 mm) |
| Door Opening | 90 ° |
| Handing | Left Hand |
| Hold Open | 90 |
| Independent | Closing and Latching Valves Yes |
| Interior | Or Exterior Doors Yes |
| Maximum Door Width - Exterior 48 in. | (1219.2 mm) |
| Maximum Door Width - Interior 48 in. | (1219.2 mm) |
| Maximum Weight Center Hung 350 lbs. | (158.8 kg) |
| Non | Stocked Parts and Acessories Special Order Yes |
| Recommended | Door Type Aluminum, Hollow Metal |
| Selective | Hold Open Yes |
| Series | 28 |
| Similar CRL | 8370, CRL8372, J993HOD, J994HOD, J990NHOD |
| U | L Listed Yes |
Overview
The Rixson® Model 28 Center-Hung Floor Mounted Door Closer is engineered for optimal performance, adeptly controlling exterior or interior doors up to 350 lbs.
(158 kg) and 48" (1.22 m) wide.
Its design features a direct connection between the bottom arm and floor closer spindle, significantly enhancing closing efficiency over surface or overhead concealed closers.
Standard features include selective on/off hold open, a built-in positive dead stop, and independent valves for closing, latch, and backcheck adjustments.
For inquiries on Rixson® products or additional finishes and accessories, contact our CRL Technical Sales Department.
Optional accessories like the Floor Closer Cement Case and Closer Cover are also available to complement your installation needs.
(158 kg) and 48" (1.22 m) wide.
Its design features a direct connection between the bottom arm and floor closer spindle, significantly enhancing closing efficiency over surface or overhead concealed closers.
Standard features include selective on/off hold open, a built-in positive dead stop, and independent valves for closing, latch, and backcheck adjustments.
For inquiries on Rixson® products or additional finishes and accessories, contact our CRL Technical Sales Department.
Optional accessories like the Floor Closer Cement Case and Closer Cover are also available to complement your installation needs.
Specifications
Templates
