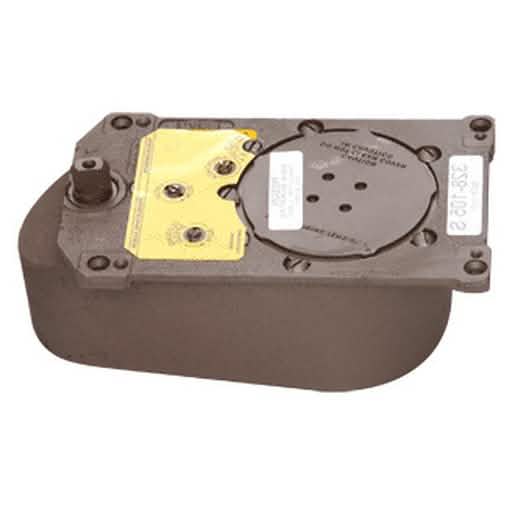

Rixson® 328 Series Center-Hung Right Hand 105 Degree Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
Rixson® 328 Series Center-Hung Right Hand 105 Degree Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
Regular price
$1,745.16 CAD
Regular price
Sale price
$1,745.16 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 328105SH0RHB0D
Shipping Weight: 19.1 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 19.1 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable | Hydraulic Backcheck Yes |
| Body Height 4-1/16 in. | (103.2 mm) |
| Body Length 11-1/8 in. | (282.6 mm) |
| Body Width 5-7/8 in. | (149.2 mm) |
| Brand | Rixson |
| Built | In Positive Dead Stop Yes |
| Certification ANSI | 117.1 |
| Closer | Body Only Yes |
| Closer | Type Floor Closer |
| Door Height 96 in. | (2438.4 mm) |
| Door Opening | 105 ° |
| Handing | Right Hand |
| Hold Open | 105 |
| Independent | Closing and Latching Valves Yes |
| Interior | Or Exterior Doors Yes |
| Maximum Door Width - Exterior 38 in. | (965.2 mm) |
| Maximum Door Width - Interior 38 in. | (965.2 mm) |
| Maximum Weight Center Hung 325 lbs. | (147.4 kg) |
| Non | Stocked Parts and Acessories Special Order Yes |
| Patch | Fitting Usage Yes |
| Recommended | Door Type Patch Fittings |
| Selective | Hold Open Yes |
| Series | 328 |
| Similar BTS | 75VBFNHO, BTS7510CPBS, BTS7510CPDU |
| Tapered | Spindle Design Yes |
| U | L Listed Yes |
Overview
The Rixson® Model 328 Center-Hung Floor Mounted Door Closer offers optimal mechanical control for doors, specifically designed for use with tapered spindle inserts and patch fittings.
Suitable for both exterior and interior doors, this door closer can support weights up to 325 lbs.
(147 kg) and widths of 42" (1.07 m).
It features a selective on or off hold open, built-in positive dead stop, and separate valves for precise adjustments in closing, latch, and back check.
CRL, a stocking distributor of Rixson® Specialty Door Controls, provides additional finishes and accessories upon request.
For inquiries or assistance with Rixson® products, contact our Technical Sales Department.
Optional accessories include the Floor Closer Cement Case and Closer Cover.
Suitable for both exterior and interior doors, this door closer can support weights up to 325 lbs.
(147 kg) and widths of 42" (1.07 m).
It features a selective on or off hold open, built-in positive dead stop, and separate valves for precise adjustments in closing, latch, and back check.
CRL, a stocking distributor of Rixson® Specialty Door Controls, provides additional finishes and accessories upon request.
For inquiries or assistance with Rixson® products, contact our Technical Sales Department.
Optional accessories include the Floor Closer Cement Case and Closer Cover.
