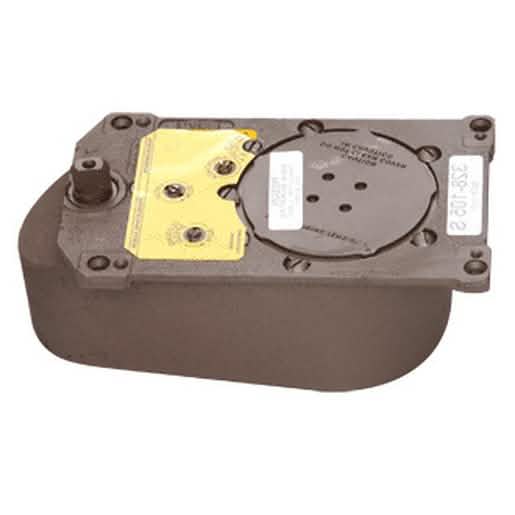

Rixson® 328 Series Center-Hung Right Hand 90º Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
Rixson® 328 Series Center-Hung Right Hand 90º Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
Regular price
$2,394.09 CAD
Regular price
Sale price
$2,394.09 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 32890SH0RHB0DY
Shipping Weight: 19.295 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 19.295 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable | Hydraulic Backcheck Yes |
| Body Height 4-1/16 in. | (103.2 mm) |
| Body Length 11-1/8 in. | (282.6 mm) |
| Body Width 5-7/8 in. | (149.2 mm) |
| Brand | Rixson |
| Built | In Positive Dead Stop Yes |
| Certification ANSI | 117.1 |
| Closer | Body Only Yes |
| Closer | Type Floor Closer |
| Door Height 96 in. | (2438.4 mm) |
| Door Opening | 90 ° |
| Handing | Right Hand |
| Hold Open | 90 |
| Independent | Closing and Latching Valves Yes |
| Interior | Or Exterior Doors Yes |
| Maximum Door Width - Exterior 38 in. | (965.2 mm) |
| Maximum Door Width - Interior 38 in. | (965.2 mm) |
| Maximum Weight Center Hung 325 lbs. | (147.4 kg) |
| Non | Stocked Parts and Acessories Special Order Yes |
| Patch | Fitting Usage Yes |
| Recommended | Door Type Patch Fittings |
| Selective | Hold Open Yes |
| Series | 328 |
| Similar BTS | 75VBF90HO, J993HOD, J904HOD |
| Tapered | Spindle Design Yes |
| U | L Listed Yes |
Overview
The Rixson® Model 328 Center-Hung Floor Mounted Door Closer is a top choice for effectively controlling doors, thanks to its tapered spindle design specifically intended for patch fittings.
Ideal for both exterior and interior doors, this robust closer can handle doors weighing up to 325 lbs (147 kg) and measuring 42 inches (1.07 m) wide.
Key features include a selective on or off hold open function, a built-in positive dead stop, and independent valves for precise closing, latch, and back check adjustments.
As a CRL stocking distributor of Rixson® Specialty Door Controls, we invite you to contact our Technical Sales Department for assistance with Rixson® products and optional accessories like the Floor Closer Cement Case and Closer Cover.
Additional finishes and accessories are available upon request.
Ideal for both exterior and interior doors, this robust closer can handle doors weighing up to 325 lbs (147 kg) and measuring 42 inches (1.07 m) wide.
Key features include a selective on or off hold open function, a built-in positive dead stop, and independent valves for precise closing, latch, and back check adjustments.
As a CRL stocking distributor of Rixson® Specialty Door Controls, we invite you to contact our Technical Sales Department for assistance with Rixson® products and optional accessories like the Floor Closer Cement Case and Closer Cover.
Additional finishes and accessories are available upon request.
