Rixson 27 LH 3/4" Offset Floor Door Closer Body Only 90° Hold-Open

• For exterior or interior doors weighing up to 450 lbs. (204 kg) and up to 48" (1.22 m) wide
• Selective on/off hold-open
• Built-in positive dead stop

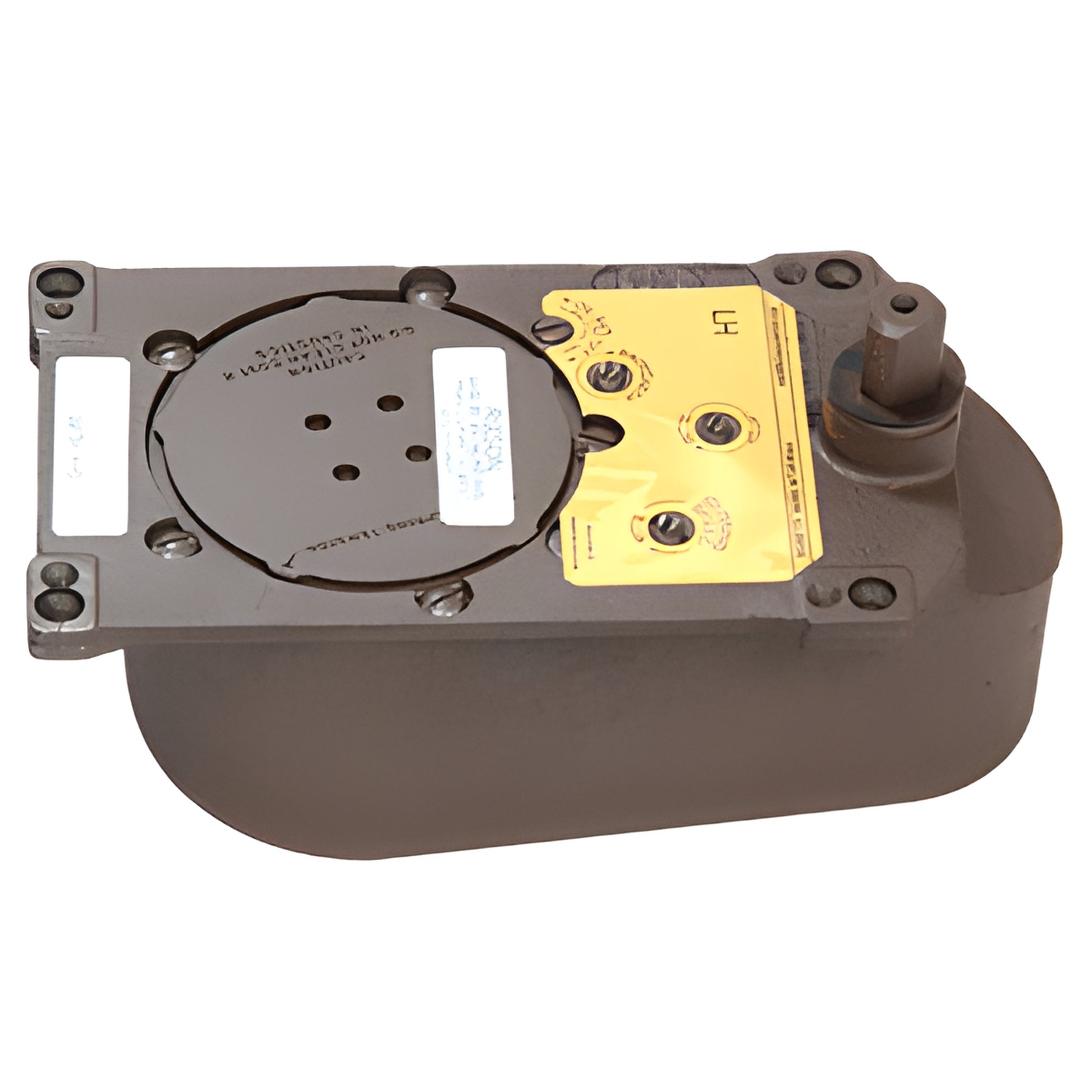

This Rixson® Model 27 Offset Floor Mounted Door Closer (SKU: 2790SH0LHB0DY) is an offset floor-mounted door closer engineered for heavy doors and commercial entrances. The bottom arm connects directly to the floor closer spindle, supporting door weight at the floor and delivering greater closing efficiency than surface or overhead concealed closers. Ideal for heavy exterior or interior doors up to 450 lbs (204 kg) and 48" (1.22 m) wide, the Model 27 is built for durability and reliable operation.

Standard features include selective on/off hold-open, a built-in positive dead stop, and separate independent valves for closing, latching and backcheck adjustments—useful for precise control on high-traffic entryways and ADA-compliant installations.

Key differentiators:

• Floor-mounted design transfers load to floor for superior closing efficiency compared to overhead closers
• Independent adjustment valves for closing, latch and backcheck for fine-tuned performance
• Selective hold-open and positive dead stop for controlled open positions

Optional accessories that may be needed:
253000 Floor Closer Cement Case
274750LH Closer Cover
252050LH Bottom Offset Arm
R180 Top Offset Pivot
M19LH Intermediate Offset Pivots.

Additional finishes and accessories are available upon request for quotation.

If you need Rixson® products or assistance selecting the correct floor closer for your project, contact our Technical Sales Department or CRL Customer Service. Add the SKU 2790SH0LHB0DY to your inquiry for fastest support.
