CRL
Rixson® 27 RH Floor-Mounted Door Closer 3/4" Offset 90° Hold-Open
Rixson® 27 RH Floor-Mounted Door Closer 3/4" Offset 90° Hold-Open
Regular price
$2,679.79 CAD
Regular price
Sale price
$2,679.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2790SH0RHB0DY
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height May Require Intermediate Pivots
Yes
Door Opening
90 °
Handing
Right Hand
Hold Open
90
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 in. (1219.2 mm)
Maximum Door Width - Interior
48 in. (1219.2 mm)
Maximum Weight Center Hung
450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Selective Hold Open
Yes
Series
27
Similar
CRL8370, CRL8372, J993HOD, J994HOD, J990NHOD
UL Listed
Yes
Overview
- For exterior or interior doors weighing up to 450 lbs (204 kg) and 48" (1.22 m) wide
- Selective on/off hold open
- Built-in positive dead stop

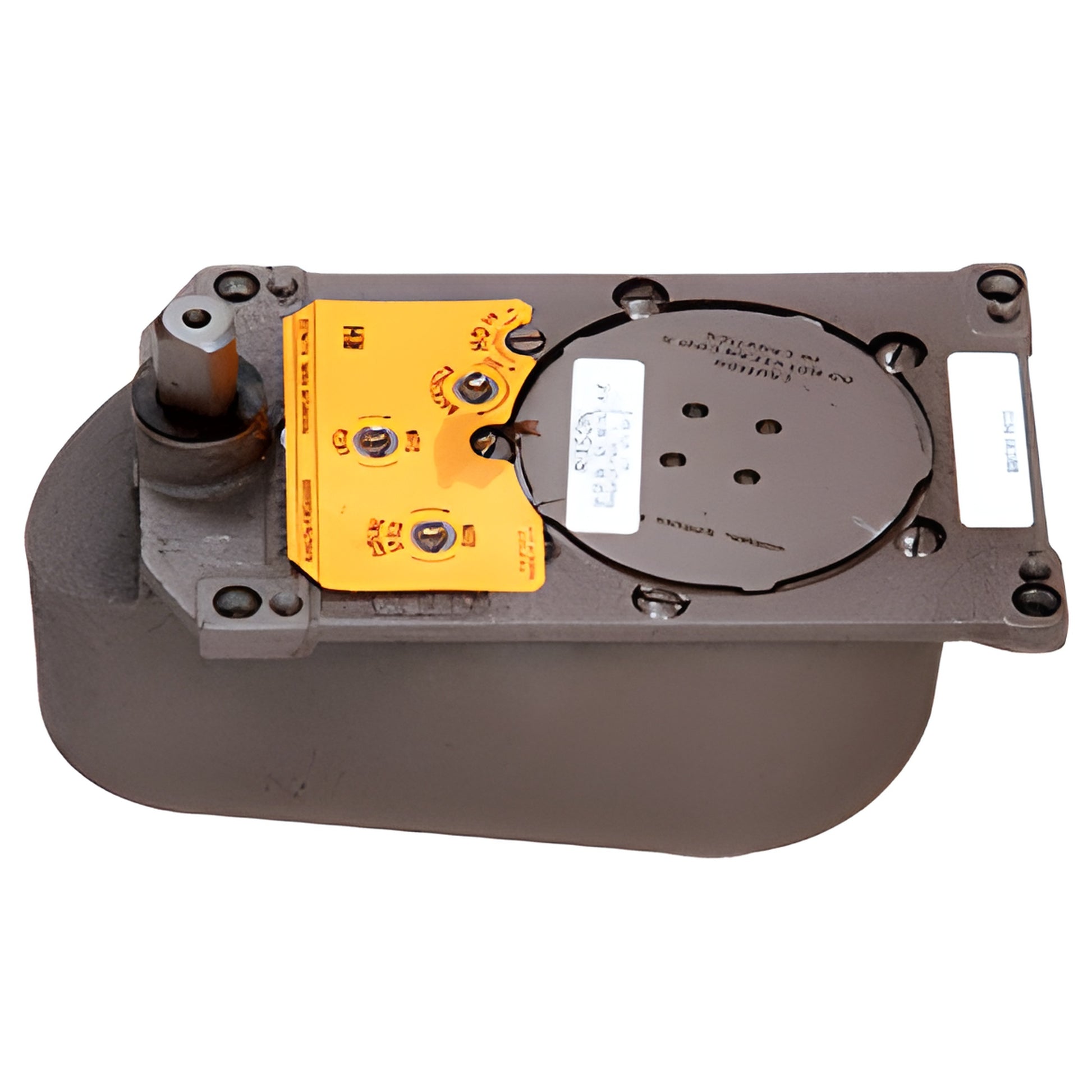

This Rixson® Model 27 Offset Floor Mounted Door Closer (SKU: 2790SH0RHB0DY) is an offset floor-mounted door closer engineered for heavy doors. The bottom arm directly connects to the floor closer spindle, supporting door weight at the hinge point and delivering higher closing efficiency than surface or overhead concealed closers. Ideal for high-traffic exterior or interior applications requiring reliable closing performance for doors up to 450 lbs and 48" wide.
Standard features: selective on/off hold open, built-in positive dead stop, plus separate independent valves for closing, latching and backcheck adjustments — offering precise control for heavy-duty commercial doors.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. For Rixson® products or help selecting the correct Model 27 configuration, contact our Technical Sales Department for assistance.
Optional accessories that may be needed:
- 253000 Floor Closer Cement Case
- 274750RH Closer Cover
- 252050RH Bottom Offset Arm
- R180 Top Offset Pivot
- M19RH Intermediate Offset Pivots
Additional finishes and accessories are available upon request for quotation.
Need assistance selecting parts or quoting a Model 27 offset floor mounted door closer? Contact our Technical Sales team to get started.
Specifications
Templates
