Rixson® Center-Hung Top Pivot with Satin Chrome Cover Plate

Item # 340SC

$151.96 CAD

Finish (4)

Overview

SKU340SC
Sold As1 Each
Bottom Door Clearance Adjustment1-3/4 in. (44.5 mm)
Bottom Door Rail Depth1-3/4
BrandRixson
Finish/ColorSatin Chrome
HandingNon Handed
MaterialAluminum
Pivot TopYes
Pivot TypeCenter Hung
Recommended Door TypeAluminum Store Front

Description

  • Regular Duty 1/2" (13 mm) Diameter Pivot Pin with Sintered Bronze Bearing
  • Finished Cover Plates, Wood, and Machine Screws are Included
  • Heavy-Duty 11/16" (17 mm) Diameter Pivot Pin With Needle Bearing
  • Pivots are Non-Handed

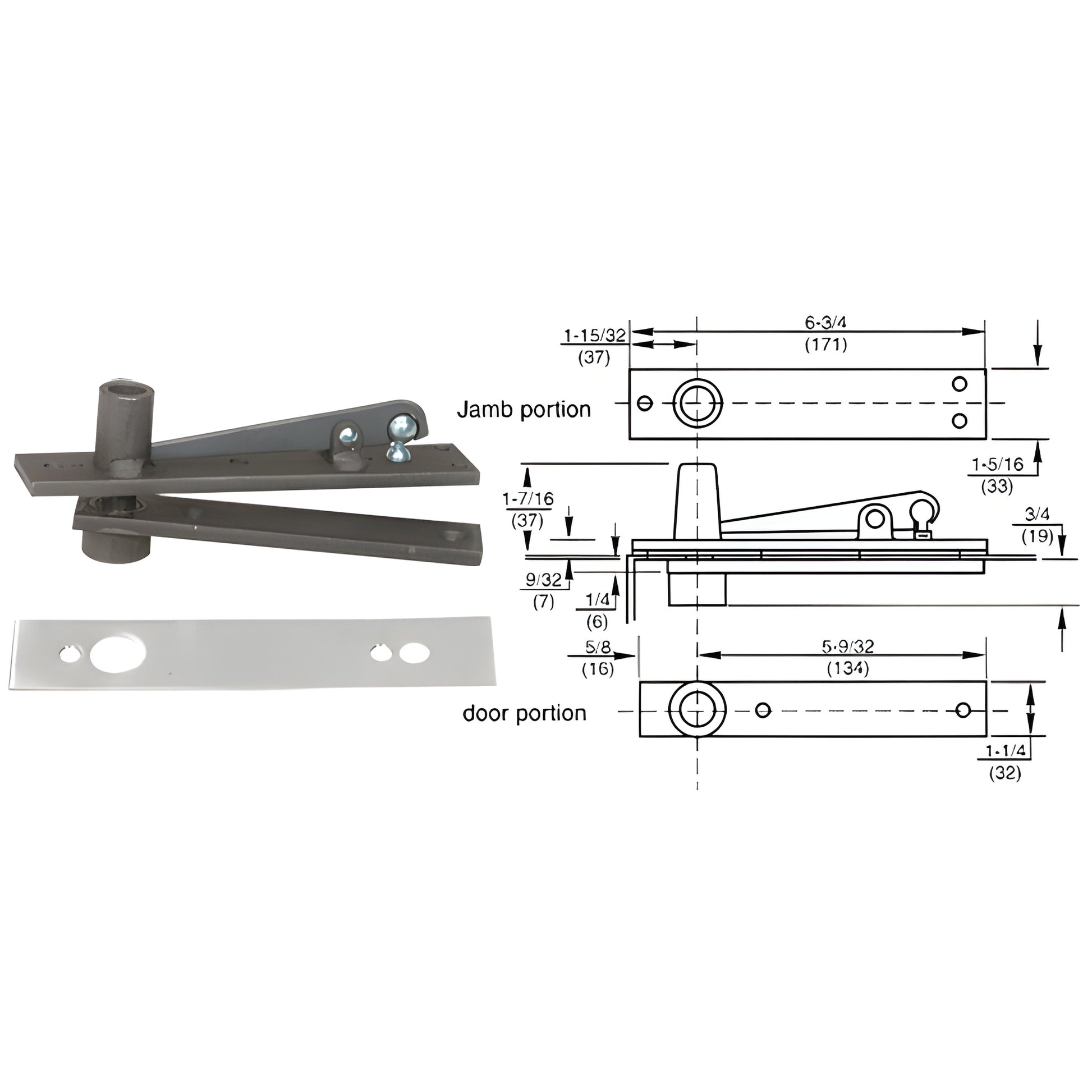

This Rixson® Center-Hung Top Pivot is a "walking beam" type pivot with a 1/2" (12.7 mm) pivot pin. The supplied door receiver provides a 3/4" (19 mm) deep engagement. These Pivots are fully mortised and non-handed. Supplied with finished cover plate, plus wood and machine screws.
