Rixson® Center-Hung Top Door Pivot with Polished Brass Cover
Rixson® Center-Hung Top Door Pivot with Polished Brass Cover
Regular price
$282.60 CAD
Regular price
Sale price
$282.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 340PB
Shipping Weight: 1.78 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.78 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Clearance Adjustment
1-3/4 in. (44.5 mm)
Bottom Door Rail Depth
1-3/4
Brand
Rixson
Finish/Color
Polished Brass
Handing
Non Handed
Material
Aluminum
Pivot Top
Yes
Pivot Type
Center Hung
Recommended Door Type
Aluminum Store Front
Overview
- Regular-duty 1/2" (13 mm) diameter pivot pin with sintered bronze bearing
- Finished cover plate, wood screws, and machine screws included
- Heavy-duty 11/16" (17 mm) diameter pivot pin with needle bearing
- Pivots are non-handed (fully mortised)

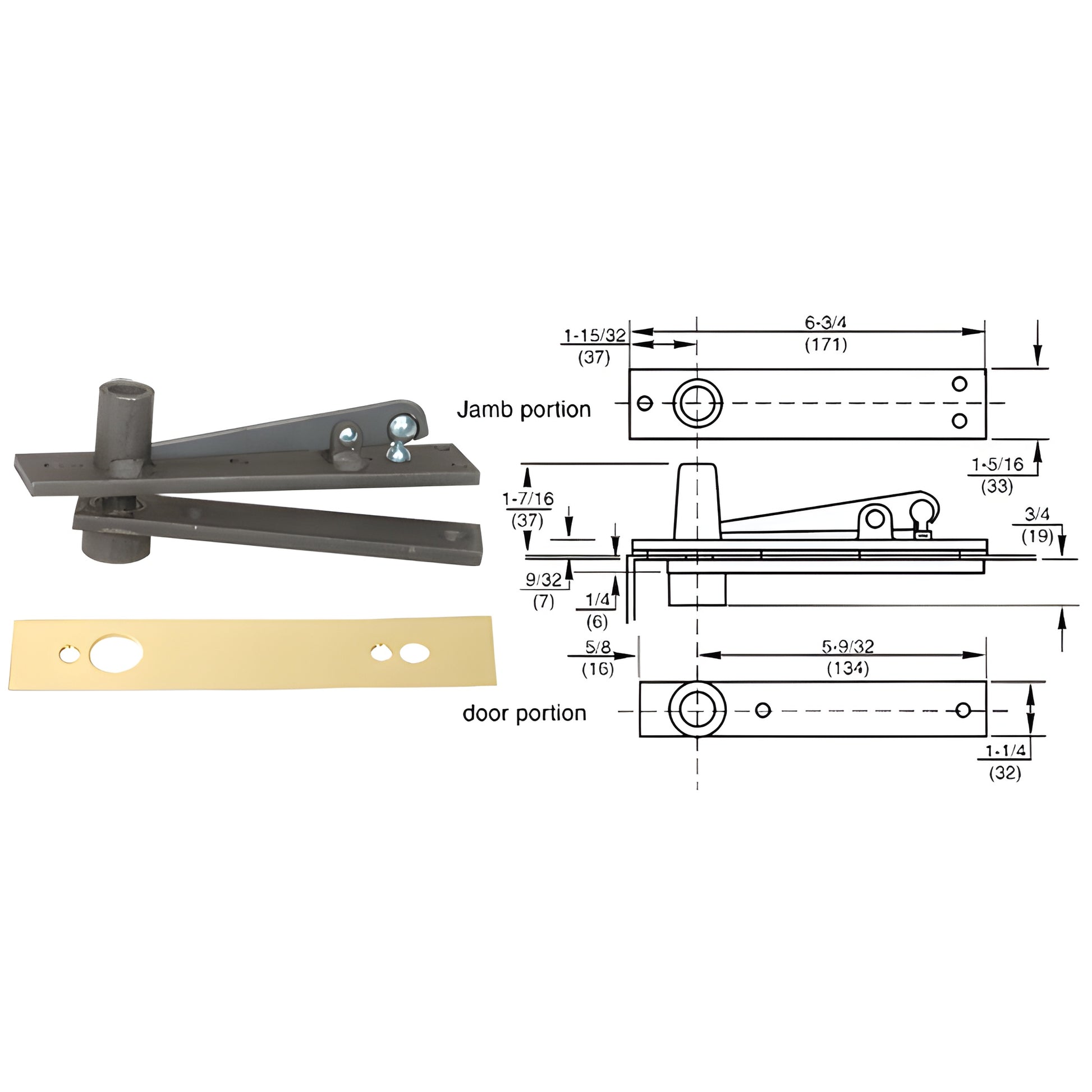

This Rixson® Center-Hung Top Pivot (SKU 340PB) is a walking-beam style center-hung pivot designed for reliable door rotation and long service life. Supplied door receiver provides 3/4" (19 mm) deep engagement. Included finished cover plate and both wood and machine screws simplify installation. Ideal for commercial and architectural doors where non-handed, durable center-hung top pivots are required.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time, regardless of initial packaging or storage. For more details, see the Brass Finish Disclaimer in the Technical References section.
Shop or request a quote for the Rixson 340PB center-hung top pivot today.
