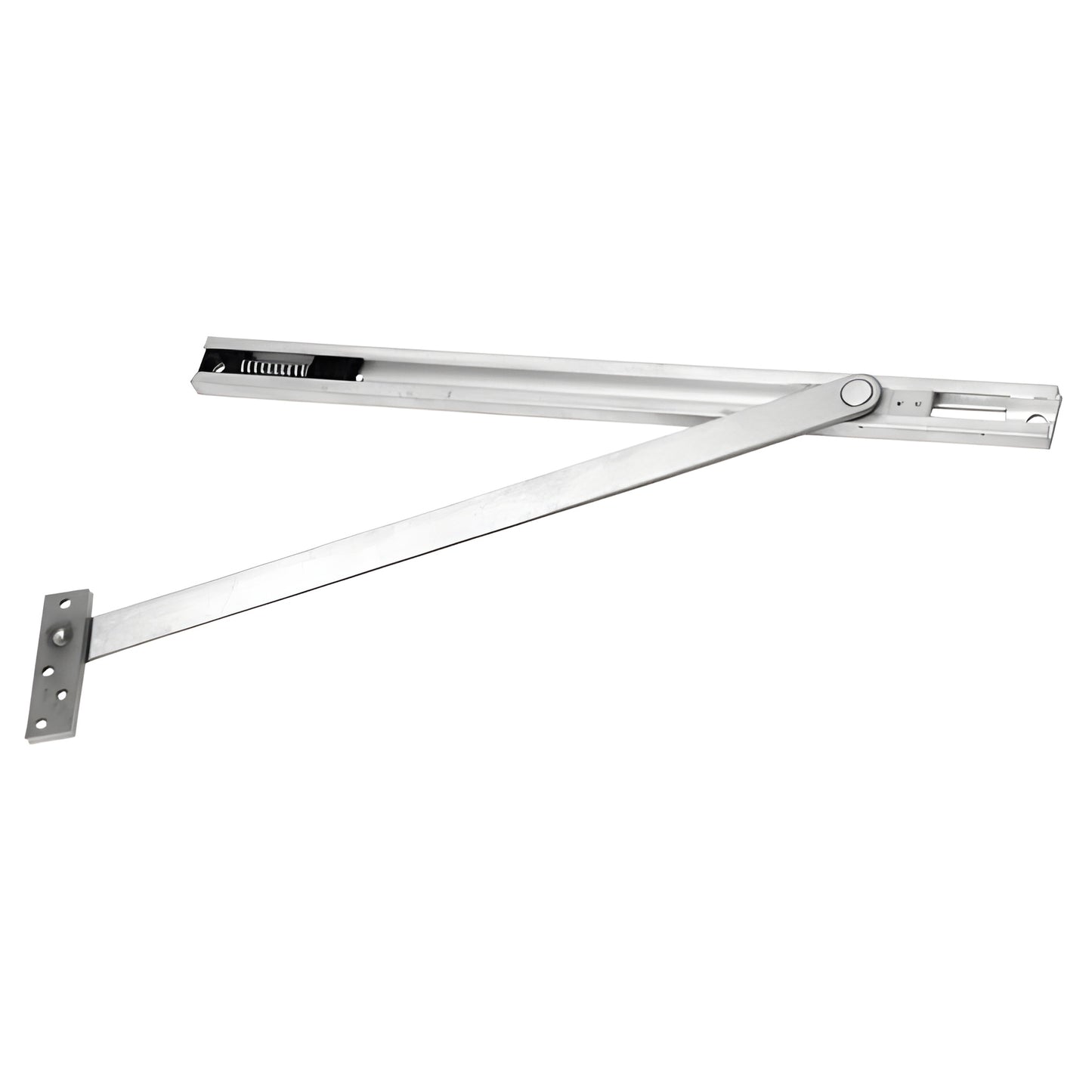

Rixson® 6 Concealed Overhead Door Stop Satin Stainless 38–46 in
Rixson® 6 Concealed Overhead Door Stop Satin Stainless 38–46 in
Regular price
$724.27 CAD
Regular price
Sale price
$724.27 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 6436SS
Shipping Weight: 3.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Rixson
Certification
ANSI 156.8 Grade 1
Finish/Color
Brushed Stainless Steel
Handing
Non Handed
Opening Degree
110°
Series
Rixson 6 Series Overhead Stops
Overview
- Protects door and entryway from violent openings
- Recommended for moderate-traffic, medium-weight doors
- Suitable for exterior and interior doors
- Concealed slide track in top door rail; also surface mountable
- Non-handed design
- ANSI 156.8 Grade 1
Rixson® Overhead Stops (SKU: 6436SS) protect doors and entryways from damage caused by wind gusts, heavy traffic, abuse, and vandalism. By limiting door travel, these overhead door stops prevent damage to frames, closers, hinges, and pivots. The heavy shock-absorbing spring provides 5º–7º compression before a dead-stop, with a 110º maximum opening. Furnished with fasteners for wood or metal doors and frames.
FEATURES AND SPECIFICATIONS:
Door Type Offset Pivots/Hinges: 38-1/16" to 43" (967 to 1.09 m)
Door Type Center-Hung Pivots: 41-1/16" to 46" (1.04 to 1.17 m)
- Low-profile concealed channel slide track for top rail installation
- Designed for installation in aluminum door webbing and door rails
- Engineered for moderate traffic and medium-weight doors
- Heavy shock-absorbing spring with 5º–7º compression before dead-stop
- Furnished with fasteners for both wood and metal door/frame
- Non-metal slide block
- 110º maximum opening
- Non-handed for flexible installation
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For full details, see the Stainless Steel Disclaimer in the Technical References section.
Buy or request a quote for the Rixson 6436SS overhead stop today to protect your exterior or interior doors.
