Black Bronze Anodized Low-Profile Patch Rail Lock for 1/2" Glass, 8"

• 8" (203 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

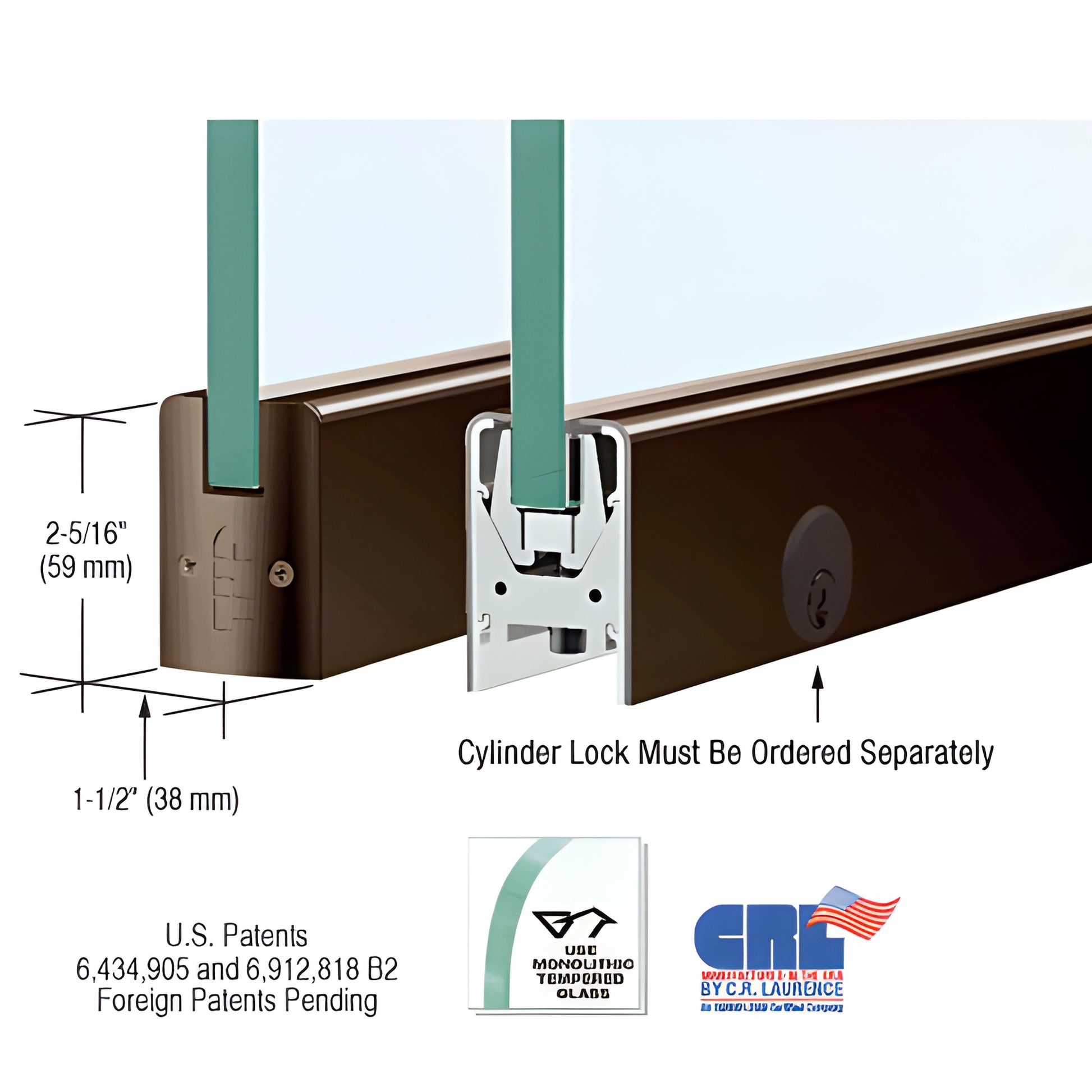

CRL Low Profile Door Rail (SKU: DR2SDU12PL) measures just 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails ship ready-to-install with End Caps, installation instructions, and adjustment wrenches.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® Glass Securing System delivers fast, secure glass attachment for low-profile doors — experienced installers can prepare a door in under ten minutes. Rails come completely fabricated; after installation, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System provides +/-1/8" (3 mm) adjustment toward or away from the jamb without removing the door. Adjustment is standard on both top and bottom rails. To adjust after installation, remove the End Cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts provide the 1/8" (3 mm) in/out adjustment. The low-profile slide allows pivot placement other than the American Standard Setback of 2-3/4" (69.8 mm), enabling fabrication for vertically out-of-square openings.

Other benefits of Wedge-Lock® Door Rails:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing resists shifting and maintains adjustment
• Internal components remain in place during installation
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in Jamb Alignment Block. Arms and pivots are not included and must be ordered separately to meet job requirements.

Finishes: available in several standard architectural finishes; custom finishes and widths quoted upon request. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.
