DRS Brushed Stainless Low-Profile Patch Rail w/ Lock, 8" for 1/2" Glass

• 8" (203 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails — 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes; Custom Finishes Available
• Available Without Locks
• Matching Sidelite Rails Available

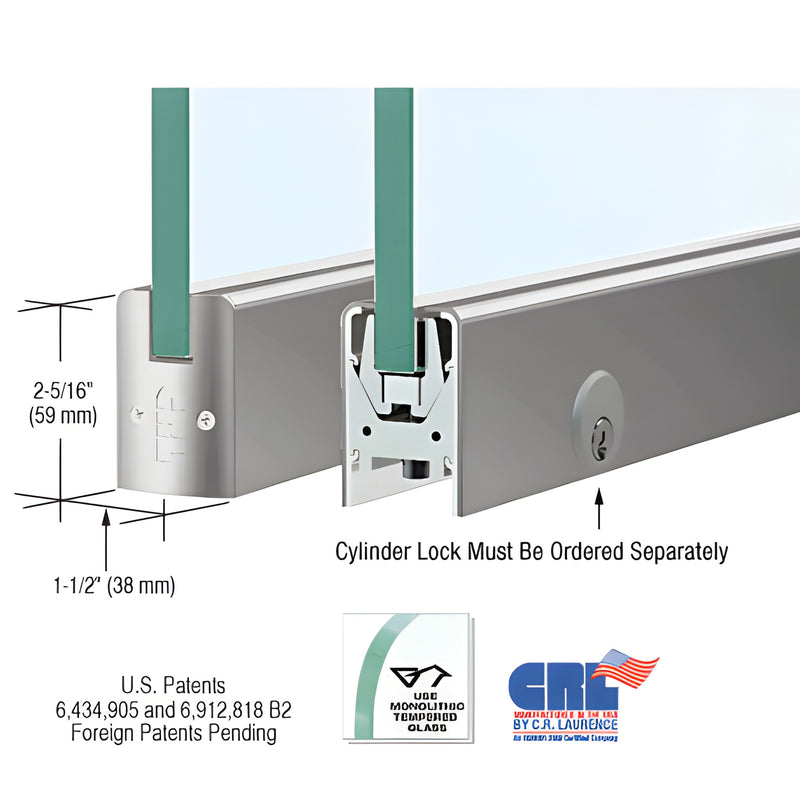

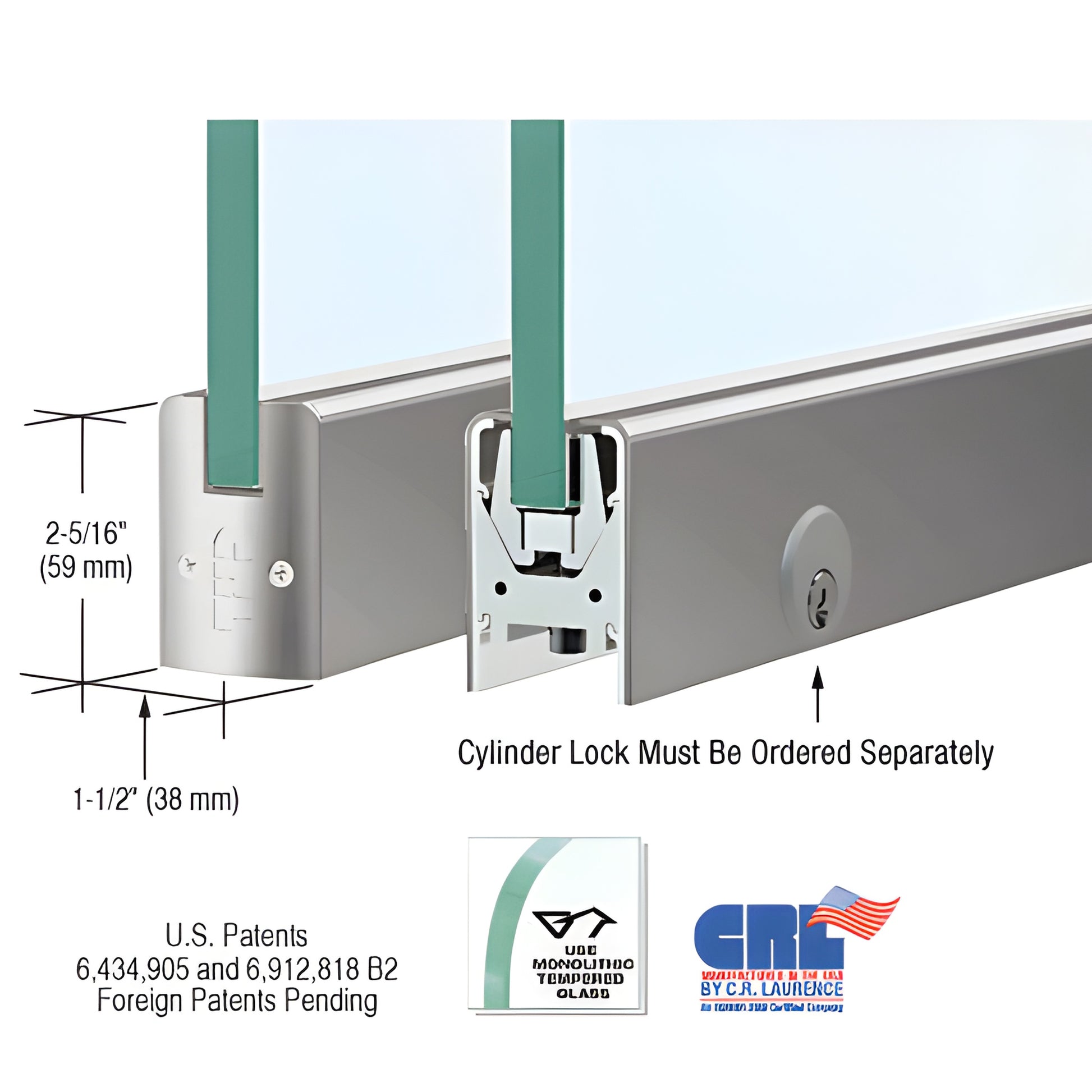

Our CRL Low Profile Door Rail measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent No. EP 1 404 939 B1). Rails include End Caps, installation instructions, and adjustment wrenches for fast, on-site installation.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system provides a secure attachment to the glass and the fastest installation time among modern door rail systems—experienced installers can prepare a door in under ten minutes. Rails arrive completely fabricated and ready-to-install; after mounting the rail, simply attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide.

The Adjustable Door Alignment System (standard on both top and bottom rails) allows up to 1/8" (3 mm) adjustment toward or away from the jamb without removing the door. To access adjustments after installation, remove the End Cap to reveal three socket head cap bolts: the center bolt locks the slide; the two outer bolts permit the 1/8" (3 mm) in/out adjustment. The low-profile slide also enables pivot placement other than the American Standard Setback of 2-3/4" (69.8 mm), allowing fabrication for vertically out-of-square openings.

Other reasons to choose Wedge-Lock® Door Rails:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing resists shifting and long-term misalignment
• Internal components remain installed during installation—no removal required
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.
