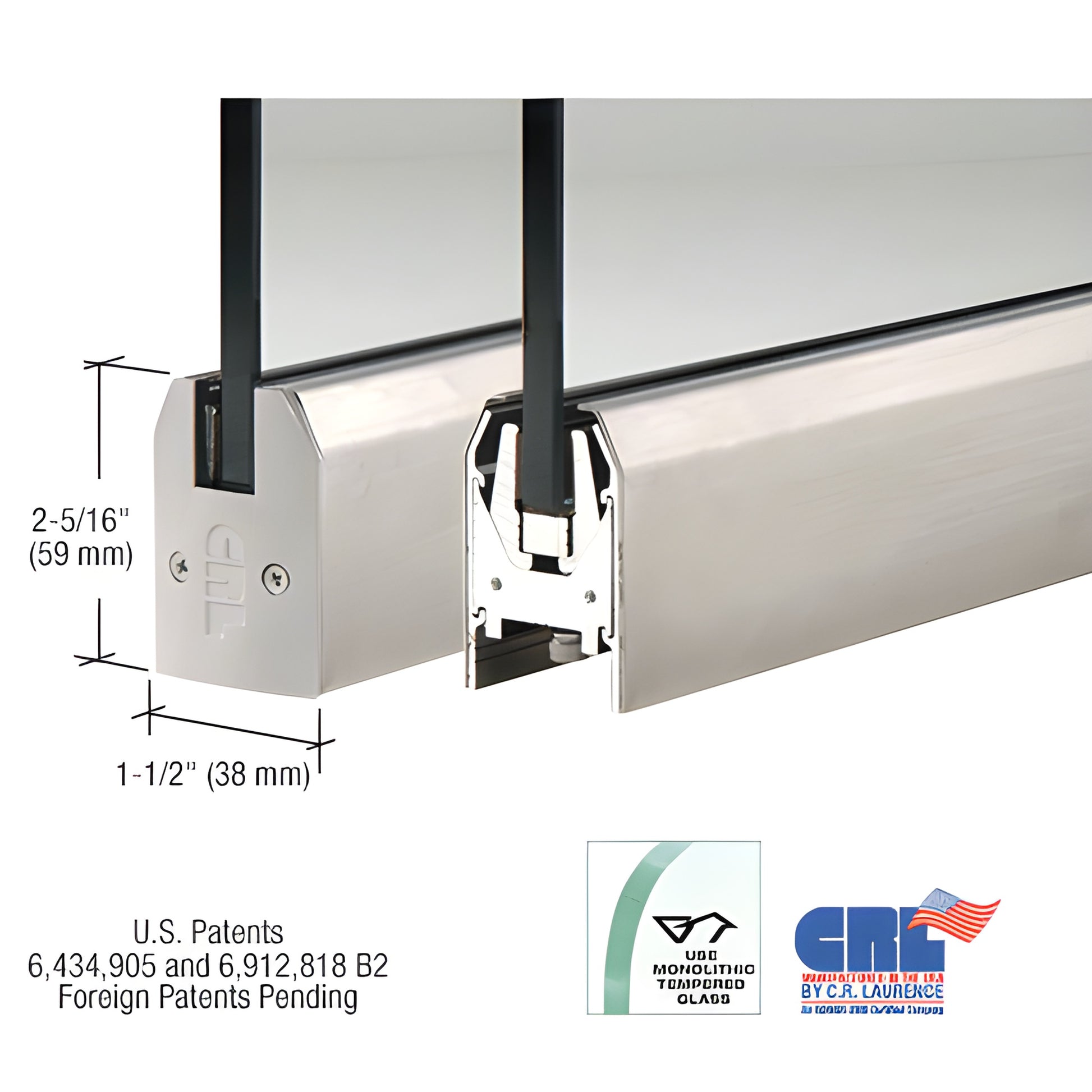

• Brushed stainless low-profile 8" door rail for 1/2" glass (2-5/16" H x 1-1/2" W) with Wedge-Lock, SKU DR2TBS12P
1 1

CRL

DRS 8in Brushed Stainless Tapered Patch Rail for 1/2in Glass - No Lock

DRS 8in Brushed Stainless Tapered Patch Rail for 1/2in Glass - No Lock

$468.95 CAD
$468.95 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DR2TBS12P
Shipping Weight: 2.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Includes Lock
No
Length
8 in. (203 mm)
Material
Aluminum Clad with Stainless Steel
Nominal Height
2-5/16 in. (59 mm)
Profile
Tapered
Removable Covers
Yes
Width
1-1/2 in. (38 mm)

Overview

  • 8" (203 mm) Length for 1/2" (12 mm) Glass
  • Use Monolithic Tempered Glass
  • Patented Wedge-Lock® Glass Securing System
  • Low Profile Rails are Only 2-5/16" (59 mm) Tall
  • Available in Several Stock Architectural Finishes - Custom Finishes Available
  • Available Without Locks Only
  • Matching Sidelite Rails Available

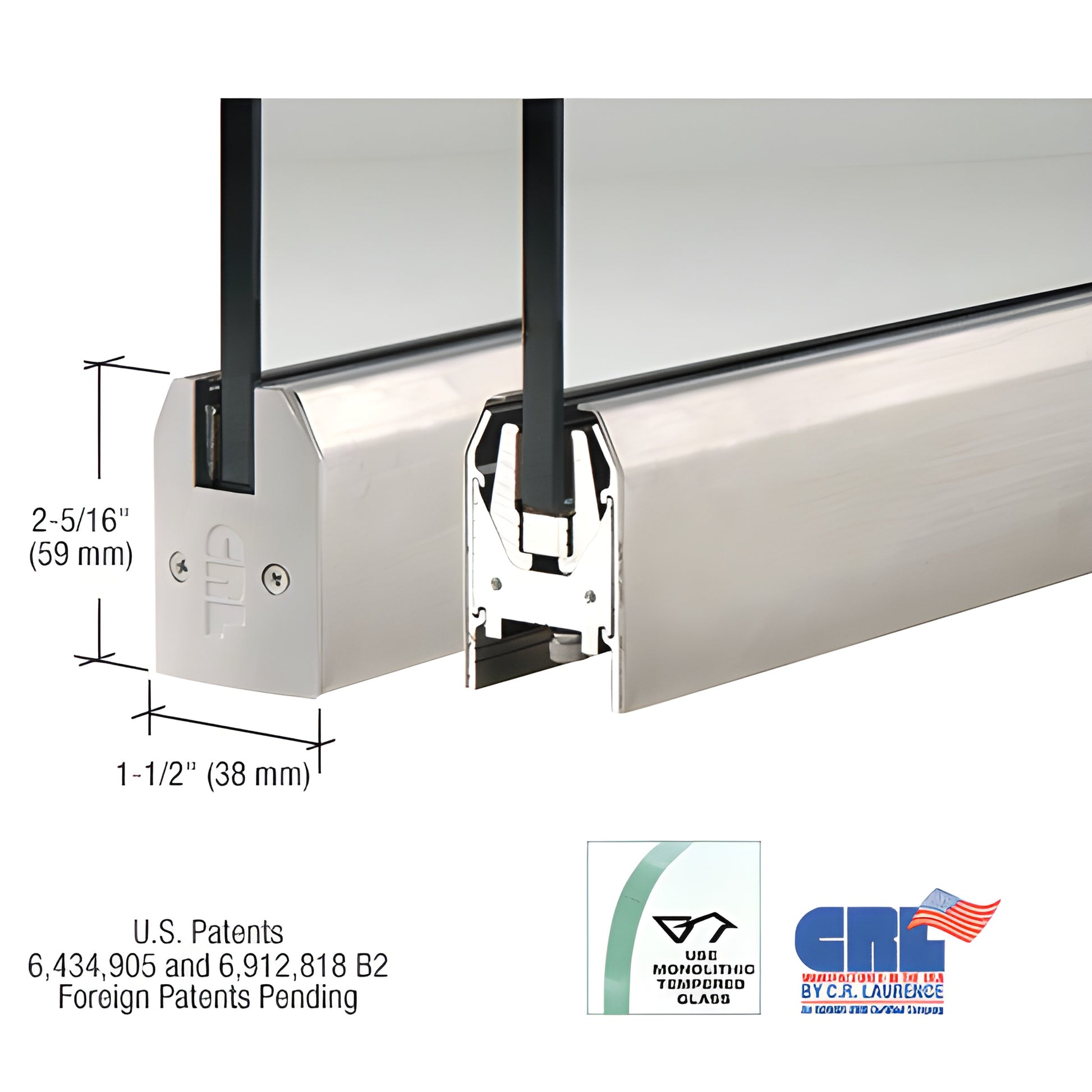

Our CRL Low Profile Door Rail (SKU: DR2TBS12P) is a compact, ready-to-install door rail for frameless glass doors and commercial storefronts. Measuring 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide, it uses the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) for fast, secure attachment to monolithic tempered glass.

NOTE: Actual product height: 2-5/16" (59 mm).

The Wedge-Lock® system is engineered for speed and reliability—the fastest installation time of any door rail system we offer. Experienced installers can prepare a door in less than ten minutes. Rails ship complete with End Caps, installation instructions, and adjustment wrenches so they are ready-to-install out of the carton.

After installation, attach a door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The Adjustable Door Alignment System allows 1/8" (3 mm) in/out adjustment without removing the door. This adjustment is standard on both top and bottom rails and is accessed by removing the End Cap to reveal three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3 mm).

The low-profile adjustable slide supports pivots with slotted grooves and can be fabricated for vertically out-of-square openings, offering installation flexibility for commercial glass doors and storefront applications.

Key differentiators:

  • Wedge-Lock® Glass Securing System for fastest installation and secure glass retention
  • Rigid single-component housing—won’t shift or fall out of adjustment over time
  • Pre-assembled internal components—no internal removal required before installation
  • Glass securing pads designed for longevity in extreme environments
  • Accommodates 3/8" to
