Door Patch Rail 8in Black Powder-Coat for 1/2in Glass, No Lock

• 8" (203 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Low profile rails are only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

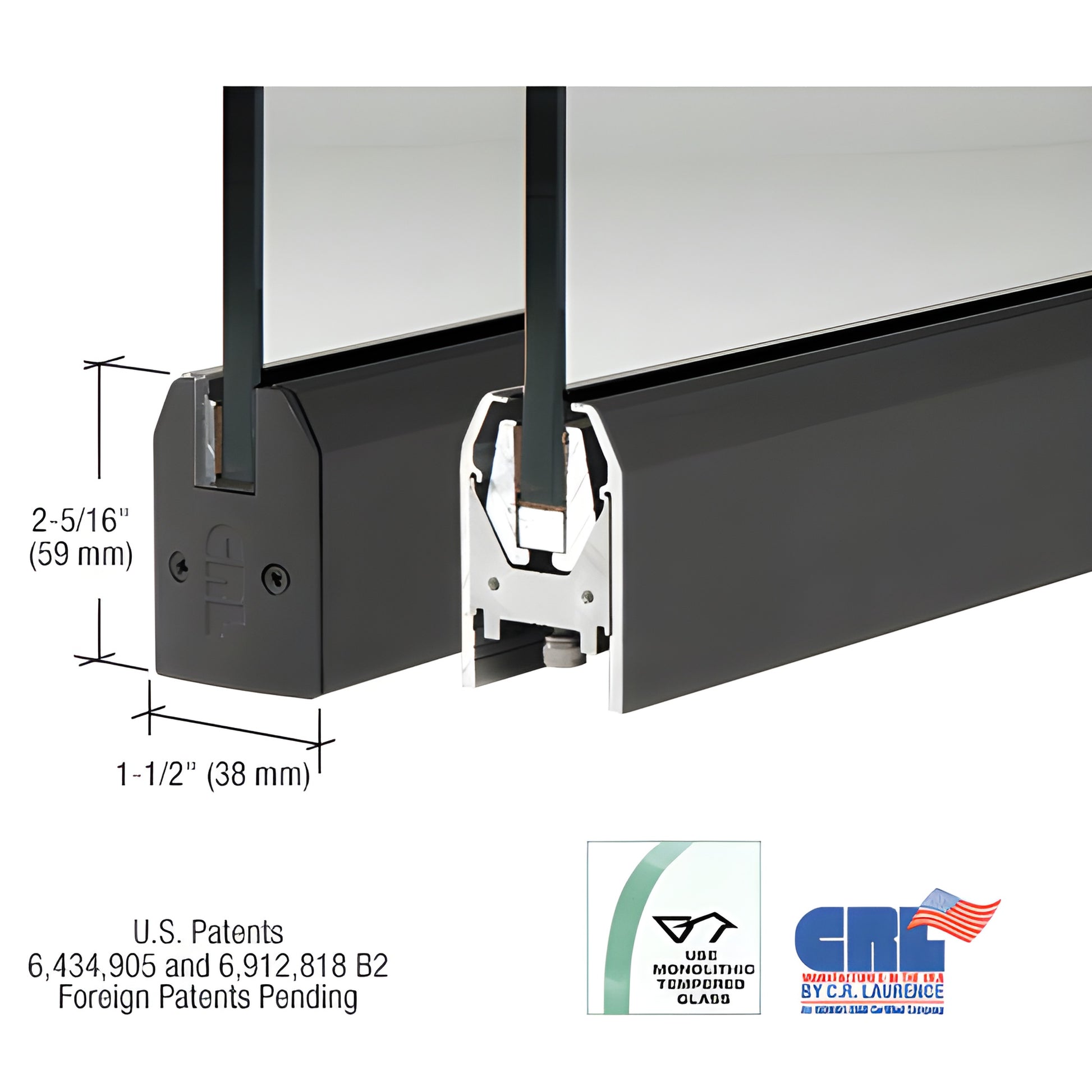

CRL Low Profile Door Rail (SKU: DR2TBL12P) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and includes the patented Wedge-Lock® Glass Securing System. Rails come complete with end caps, installation instructions, and adjustment wrenches—ready to install for commercial and residential glass doors.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system delivers a faster, more secure installation for glass door rails—experienced installers can prepare a door in under ten minutes. Rails ship completely fabricated with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The adjustable door alignment system (standard on top and bottom rails) allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door. To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide position. The low-profile slide accommodates pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Key differentiators:

• Fastest installation time of any door rail system offered to the industry
• Rigid single-component housing—won’t shift or fall out of adjustment over time
• Internal components do not require removal before installation
• Glass securing pads designed for longevity in extreme environments
• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass

NOTE: All Wedge-Lock® door rails include a built-in jamb alignment block; arms and pivots must be ordered separately.

Finishes: Several standard finishes available; custom finishes and widths can be quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering information:

• All door rails supplied with standard Kwik-Adjust™ pivot alignment system. Closer arms and floor or overhead pivots must be ordered separately.
• Models with locks
