8in Black Powder Coat Low-Profile Patch Rail for 1/2" Glass - No Lock

• 8" (203 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

SKU: DR2SBL12P

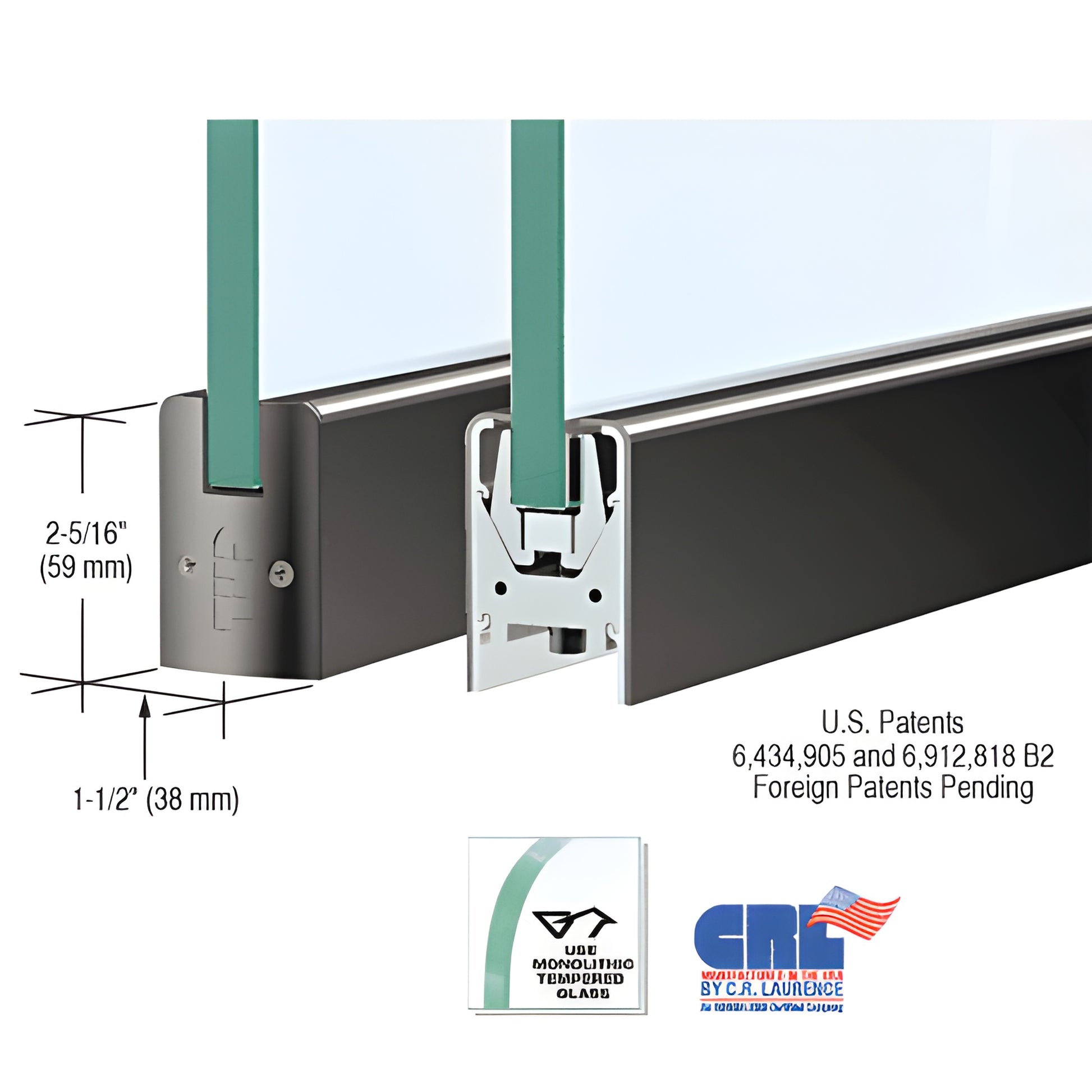

CRL Low Profile Door Rail—compact at 2-5/16" (59 mm) tall and 1-1/2" (38 mm) wide—features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile door rails for 1/2" (12 mm) monolithic tempered glass ship complete with End Caps, installation instructions, and adjustment wrenches for fast, reliable installation.

Key differentiators:

• Fastest installation time in the industry—experienced installers can prepare a door in under ten minutes.
• Integrated Wedge-Lock® secures glass without disassembling internal components.
• Rigid single-component housing resists shifting and stays in adjustment over time.
• Adjustable Door Alignment System (standard top and bottom)—adjust door 1/8" (3 mm) toward or away from jamb without removing the door.
• Durable glass securing pads designed for longevity in extreme environments.

How it installs and adjusts: Rails come fabricated and ready-to-install with End Caps installed. After mounting the rail, attach the door arm or pivot (not included) to the preassembled adjustable alignment slide. To fine-tune alignment, remove the end cap to access three socket head cap bolts—the center bolt secures the slide; the outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide accommodates non-standard setback positions for vertically out-of-square openings.

Compatibility & options:

• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass.
• All rails include the built-in Jamb Alignment Block; arms and pivots sold separately to meet job requirements.
• Closer arms and floor or overhead pivots must be ordered separately; pivot inserts 1NT701, 1NT703, and 1NT704 are sold separately.
• Models with locks are supplied with the lock mechanism installed; matching keyed cylinders or thumbturns must be ordered separately.
• Standard finishes available; custom finishes and custom widths quoted on request.
