Black Bronze Low-Profile Square Patch Rail 8in for 1/2in Glass - No Lock

• 8" (203 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

SKU: DR2SDU12P

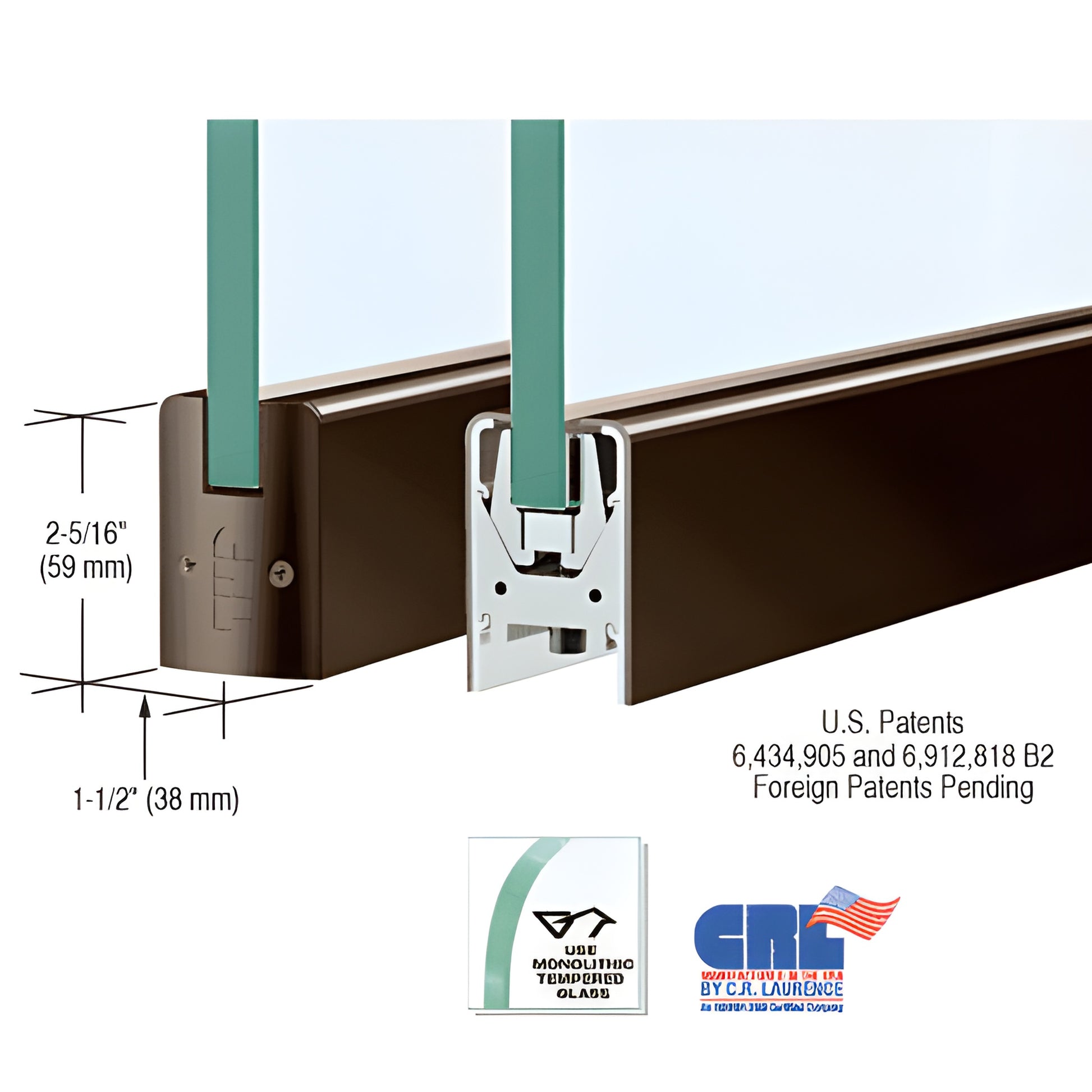

CRL Low Profile Door Rail measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and is engineered for 1/2" (12 mm) monolithic tempered glass. It features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) for fast, secure installation. Rails come complete with End Caps, installation instructions, and adjustment wrenches—ready to install right out of the carton.

Key differentiators:

• Fast installation for commercial door projects—experienced installers can prepare a door in under ten minutes.
• Integrated Kwik-Adjust™ Pivot Alignment System with adjustable door alignment slide standard on top and bottom rails—adjust door ±1/8" (3 mm) without removing the door.
• Rigid single-component housing resists shifting and long-term misalignment; internal components do not require removal for installation.
• Glass-securing pads designed for longevity in extreme environments.
• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass for other CRL rail families.

Installation & adjustment overview: After mounting the rail and attaching the door arm or pivot (not included) to the adjustable alignment slide, access the three socket head cap bolts by removing the End Cap. The center bolt secures the slide; the outer bolts provide ±1/8" (3 mm) adjustment. Low-profile slide design allows pivot placement other than the American Standard Setback (2-3/4" / 69.8 mm) for out-of-square openings.

Finishes & customization: Available in several standard architectural finishes; custom finishes and custom widths available to quote. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

<
