8" Polished Stainless DRS Low-Profile Square Patch Rail for 1/2" Glass - No Lock

• 8" (203 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (fastest installation)
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

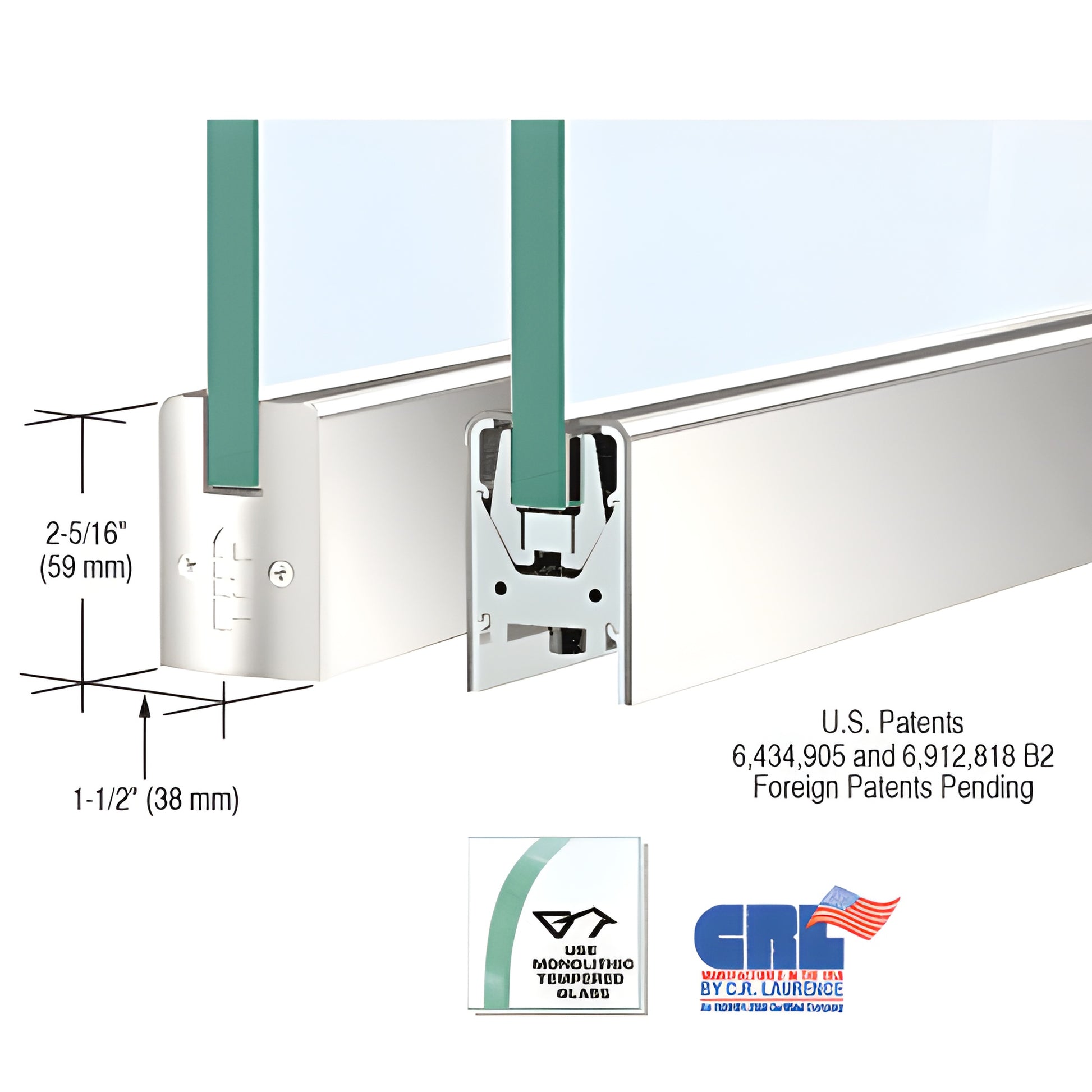

CRL Low Profile Door Rail (SKU: DR2SPS12P) measures 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide and integrates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails ship complete with End Caps, installation instructions and adjustment wrenches — ready to install for commercial glass doors using 1/2" (12 mm) monolithic tempered glass.

Key differentiators & long-tail keywords:

• Wedge-Lock® door rail for tempered glass — provides a secure, rigid single-component housing that resists shifting and long-term misalignment.
• Fast-install glass door rail system — experienced installers can prepare a door in under ten minutes.
• Adjustable door alignment slide (top and bottom rails standard) — allows +/-1/8" (3 mm) adjustment toward or away from the jamb without removing the door.
• Durable glass securing pads designed for longevity in extreme environments.
• Supports optional configurations: models accept 3/8" to 3/4" (10 to 19 mm) glass; pivots and arms ordered separately.

After installation, remove the End Cap to access three socket-head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide permits pivot placement beyond the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Finish & ordering notes: Rails are offered in several standard finishes and can be quoted in custom finishes and widths. Models with locks ship with the lock mechanism installed; matching keyed cylinders or thumbturns must be ordered separately. End Caps and Kwik-Adjust™ Pivot Alignment System are included; closer arms and floor/overhead pivots (pivot inserts 1NT701, 1NT703, 1NT704) are sold separately. Rail specs, templates and hardware packages available from CRL Technical
