DRS Low-Profile Square Patch Rail 8in for 1/2in Glass No Lock

• 8" (203 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (fastest installation)
• Low profile rails: 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

SKU: DR2SSA12P

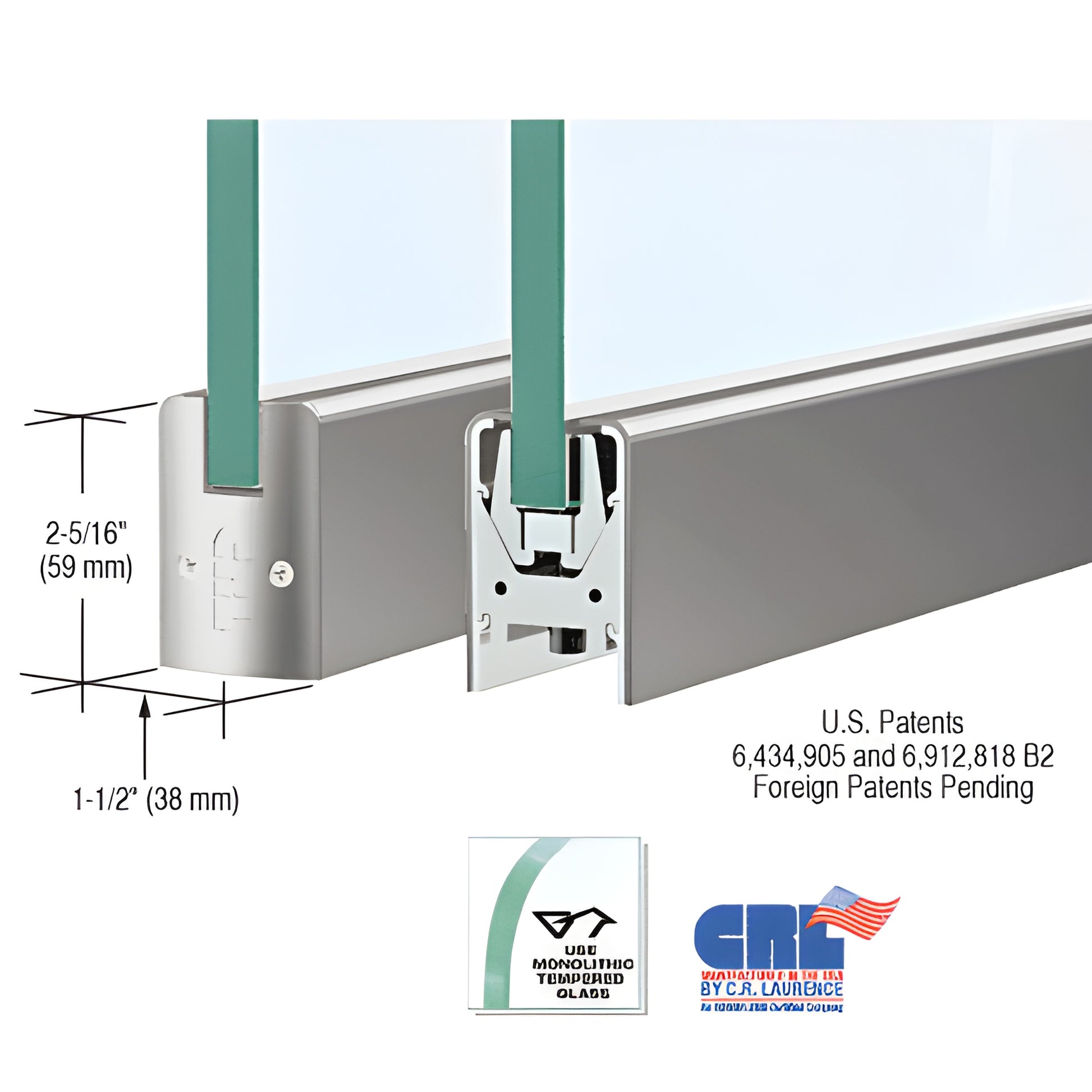

CRL Low Profile Door Rail measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile door rails are complete with end caps, installation instructions, and adjustment wrenches—ready to install for commercial glass doors, storefronts, and interior glass partitions.

Key differentiators:

• Wedge-Lock® system: secure attachment plus the fastest installation time for door rails—experienced installers can prepare a door in under ten minutes
• Integrated Adjustable Door Alignment System: ±1/8" (3 mm) adjustment top and bottom without removing the door
• Rigid, single-component housing prevents shift or loss of adjustment over time
• Internal components remain in place during installation; glass pads are engineered for longevity in extreme environments
• Available models accept 3/8" to 3/4" (10 to 19 mm) glass

Installation & adjustment: Rails come completely fabricated with end caps installed. After rail installation, attach the door arm or pivot (not included) to the preassembled adjustable alignment slide. To adjust the door after hanging, remove the end cap to access three socket-head cap bolts: the center secures the slide; the outer bolts adjust the slide ±1/8" (3 mm). The low-profile slide accommodates non-standard pivot setback positions for vertically out-of-square openings.

Ordering notes:

• All door rails include the standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor/overhead pivots sold separately
• Models with locks include the latch mechanism; keyed cylinders or thumbturns ordered separately
• End caps included in stock lengths; specify total rail length (including end caps) for custom lengths
• Pivot inserts (1NT701, 1NT703, 1NT704) sold separately

Finishes & support: Available in standard architectural finishes; custom finishes and widths
