Satin Anodized Low-Profile DRS Patch Rail 8" No Lock for 3/8" Glass

• 8" (203 mm) Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

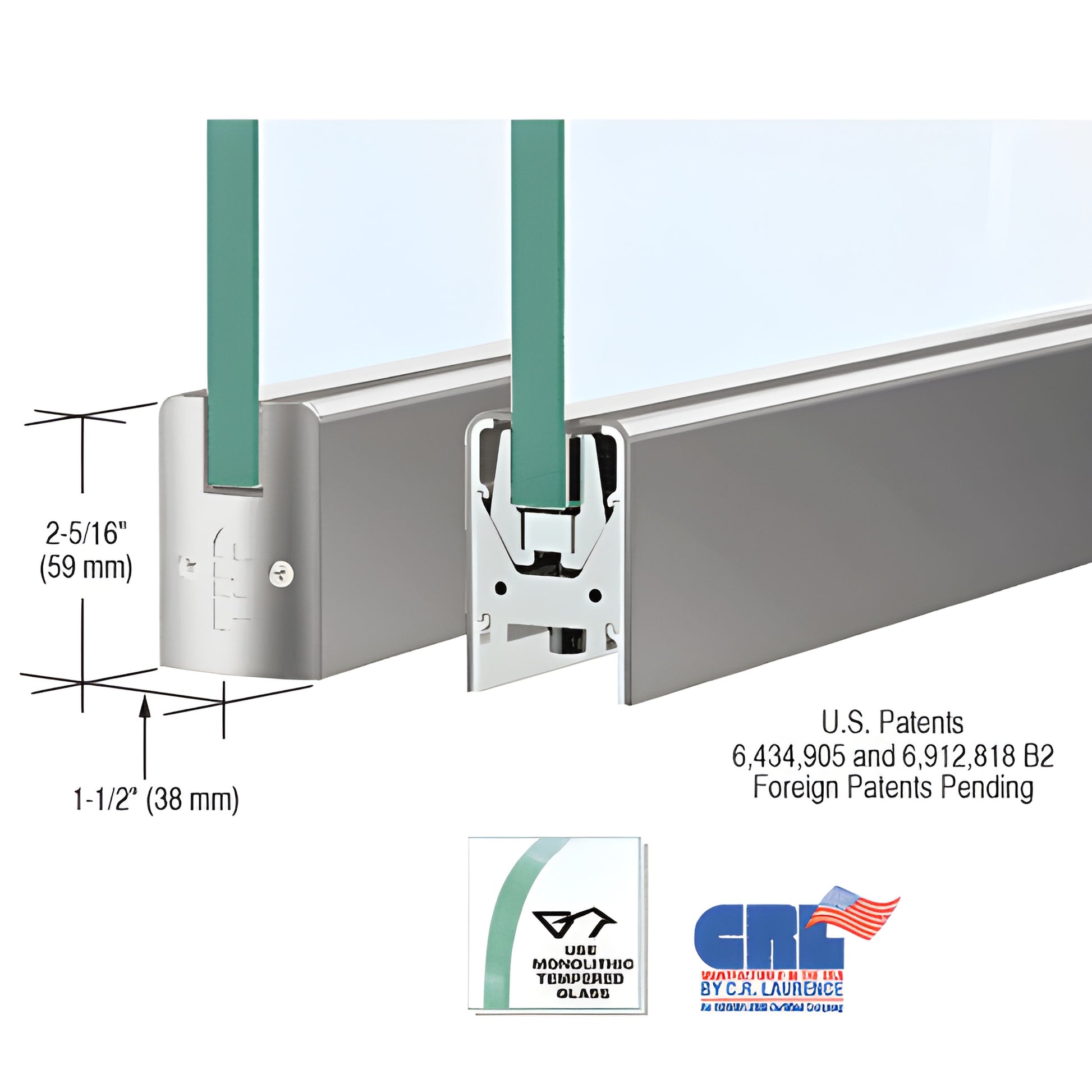

Our CRL Low Profile Door Rail measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Each low profile door rail ships ready-to-install with End Caps, installation instructions, and adjustment wrenches—ideal for glass door and storefront applications requiring a slim-profile rail for 3/8" glass.

NOTE: Actual product height: 2-5/16" (59 mm).

CRL Wedge-Lock® Door Rails arrive completely fabricated and ready to install. After rail installation, attach the door arm or pivot (not included) to the adjustable door alignment slide preassembled in the rail. The adjustable door alignment system allows +/- 1/8" (3 mm) adjustment toward or away from the jamb without removing the door; this is standard on both top and bottom rails.

To adjust the door after installation, remove the End Cap to expose three socket head cap bolts: the center bolt locks the slide, while the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile adjustable slide accommodates pivots with slotted grooves and can be fabricated for vertically out-of-square openings—useful for retrofit and custom glass door applications.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 or 19 mm) glass (models vary)
• Rigid single-component housing resists shifting or loss of adjustment over time
• Internal components remain in place—no removal required before installation
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails feature a built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard finishes; custom finishes and widths can be quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All door rails are supplied with the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
