Polished Stainless Square Door Patch Rail 3/8 in Glass No Lock 8 in

• 8" (203 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

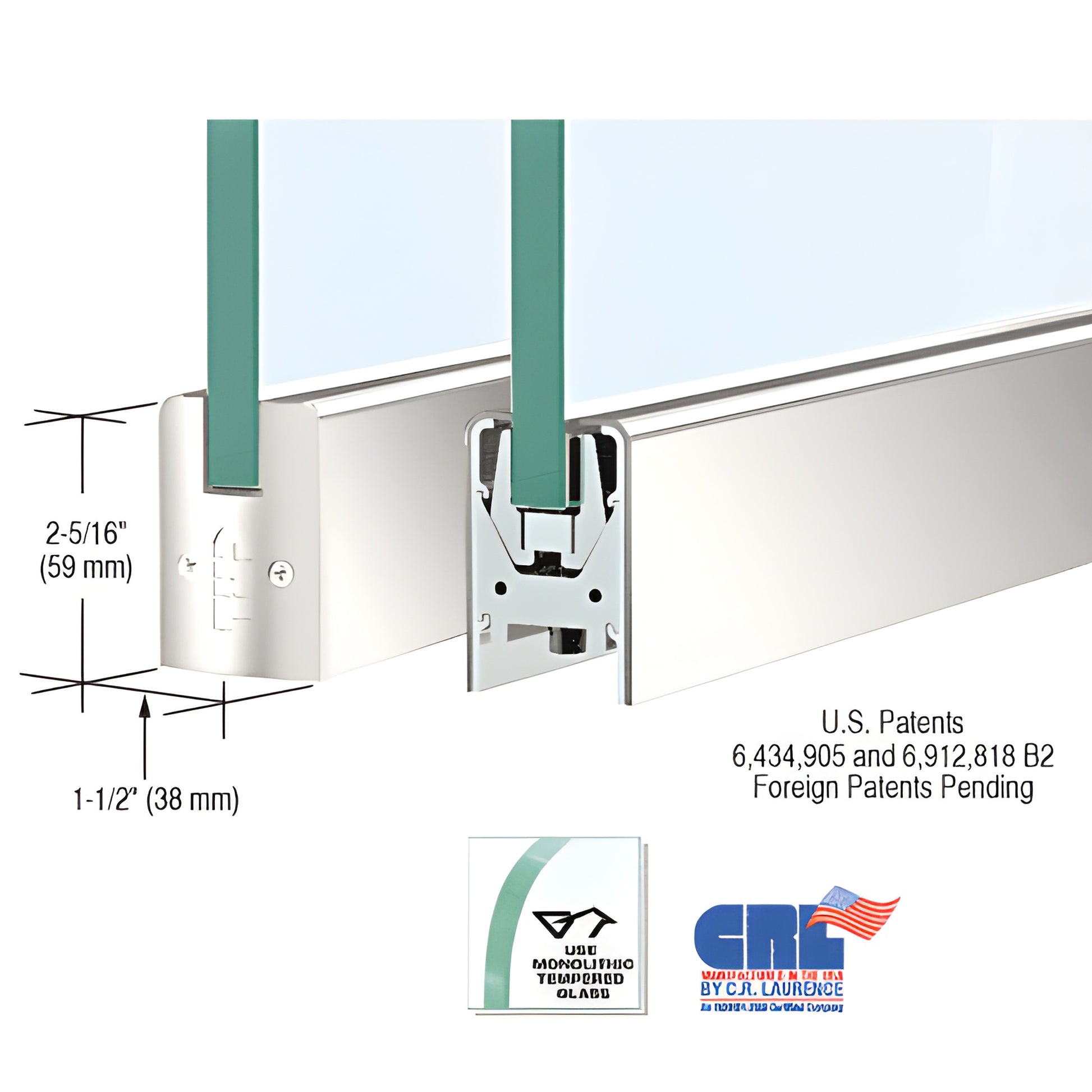

Our CRL Low Profile Door Rail (SKU: DR2SPS38P) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails come complete with End Caps, installation instructions, and adjustment wrenches for fast, ready-to-install operation.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system provides a secure attachment and the fastest installation time among door rail systems for glass doors. Experienced installers can prepare a door in under ten minutes. Rails arrive fabricated with End Caps installed; after rail installation, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The adjustable door alignment system allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door. This feature is standard on both top and bottom rails. To access adjustments, remove the End Cap to reveal three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide in or out. The low-profile slide lets pivots with slotted grooves be positioned off the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other benefits of Wedge-Lock® Door Rails:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid, single-component housing resists shifting and loss of adjustment over time
• Internal components remain in-place—no removal required before installation
• Durable glass-securing pads designed for longevity in extreme environments
• Built-in jamb alignment block (arms and pivots ordered separately to meet job requirements)

Rails are offered in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales — e-mail.

Ordering information:

• All door rails supplied with standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead
