Brushed Stainless Square Door Patch Rail 8in for 3/8in Glass w/o Lock

• 8" (203 mm) Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

SKU: DR2SBS38P

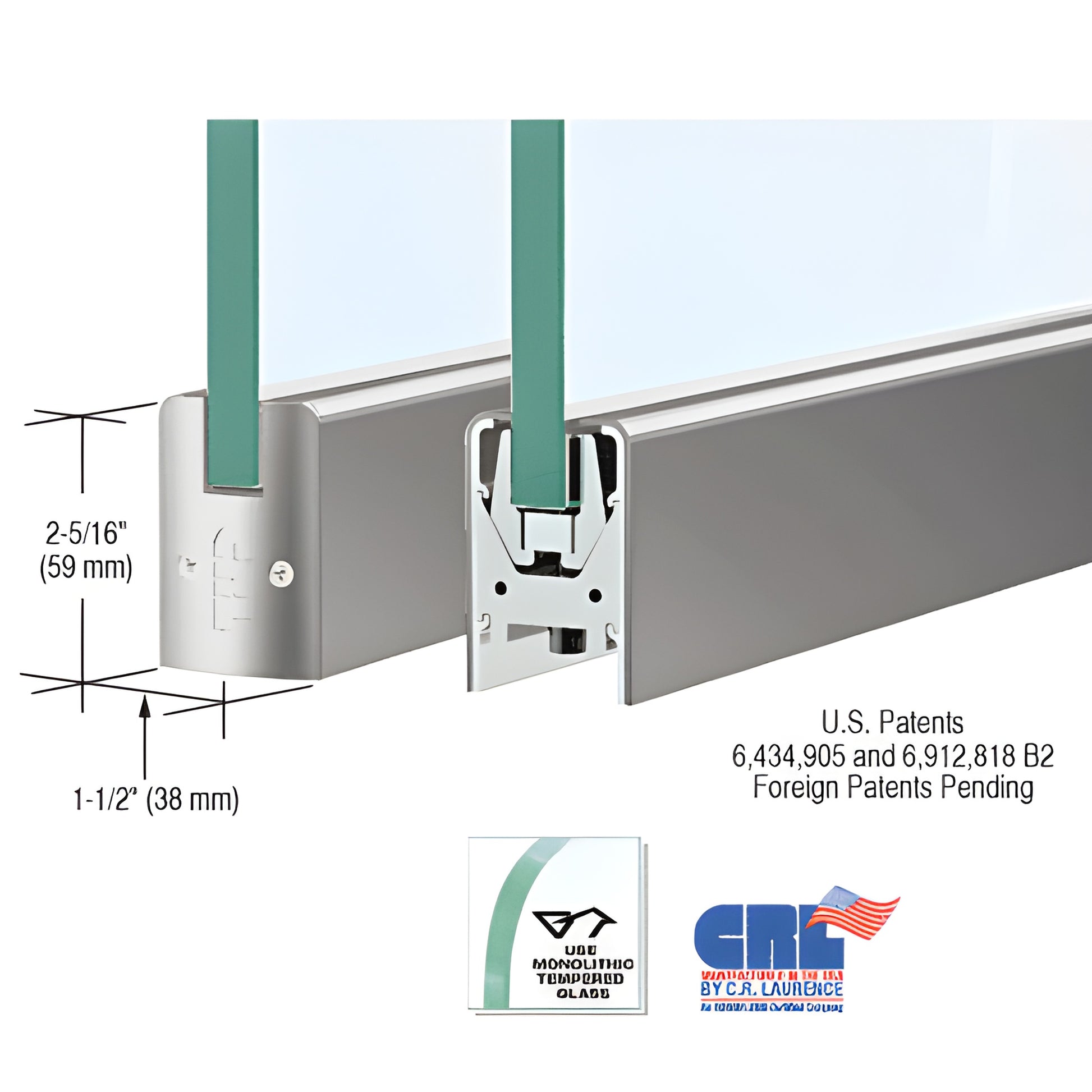

CRL Low Profile Door Rail — compact at 2-5/16" (59 mm) high and 1-1/2" (38 mm) wide, this low profile door rail for 3/8" glass features CRL’s patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails ship ready-to-install with End Caps, installation instructions, and adjustment wrenches.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system provides a faster, more secure attachment for glass than conventional door rail systems—experienced installers can prepare a door in under ten minutes. Rails come fully fabricated with the adjustable door alignment slide assembled, so the only on-site step before hanging is attaching the door arm or pivot (not included).

The adjustable door alignment system (standard on both top and bottom rails) allows 1/8" (3 mm) adjustment toward or away from the jamb without removing the door. To fine-tune alignment after installation, remove the End Cap to access three socket head cap bolts: the center secures the slide, the two outer bolts adjust +/-1/8" (3 mm). The low-profile slide also enables nonstandard pivot setback positions for vertically out-of-square openings.

Key differentiators

• Fastest installation time for a door rail system — saves labor on commercial glass doors
• Rigid single-component housing — resists shifting and long-term misalignment
• Internal components remain installed during fitting — no pre-removal required
• Durable glass securing pads designed for extreme environments
• Models accept 3/8" to 3/4" (10 to 19 mm) glass (verify model for glass thickness)
• Built-in Jamb Alignment Block (arms and pivots sold separately)

Rails are available in multiple standard architectural finishes; custom finishes and widths are available by quote. Templates, rail specifications, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering information
