8in Satin Anodized Low-Profile Door Patch Rail 1/2in Glass - No Lock

• 8" (203 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

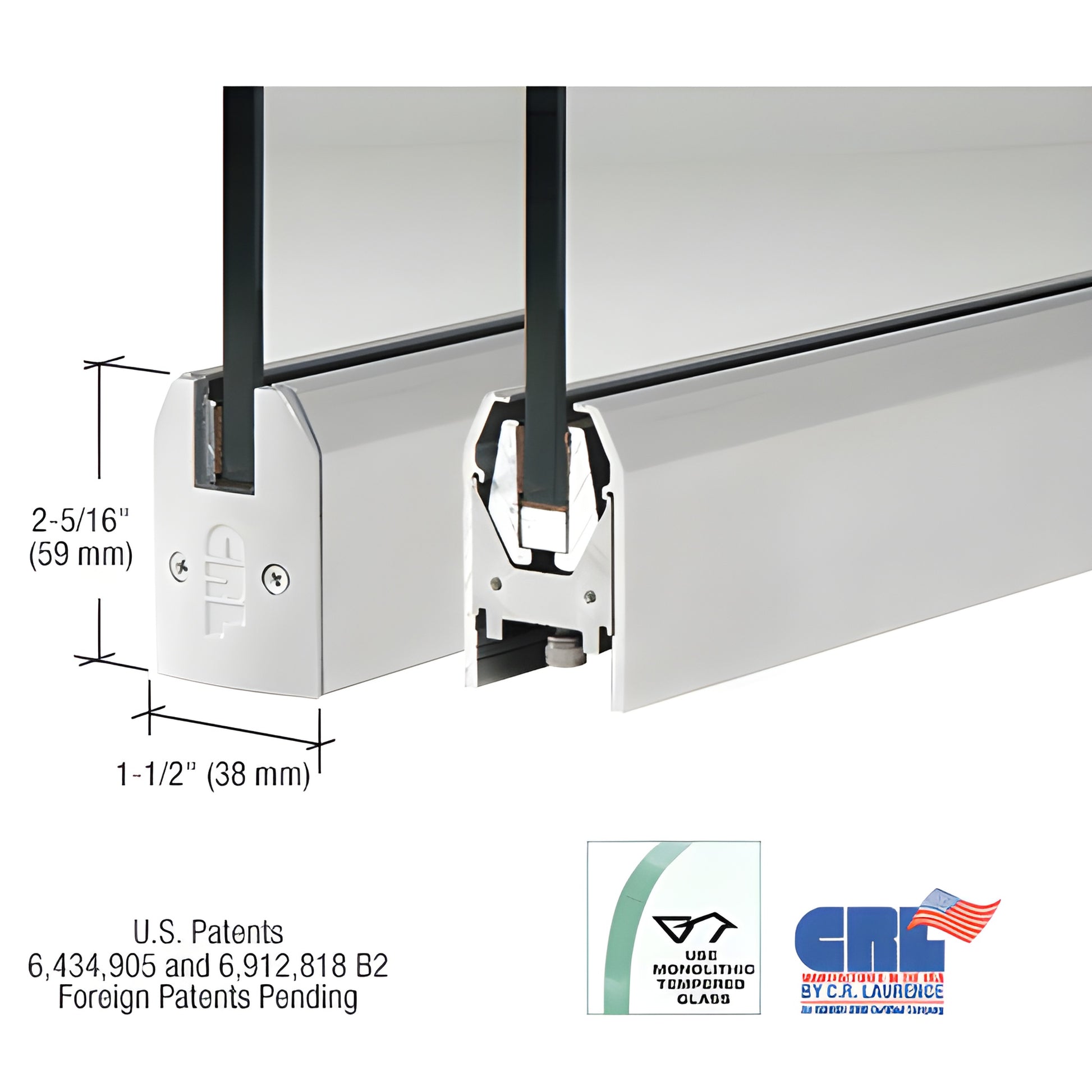

Our CRL Low Profile Door Rail measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). CRL Low Profile Door Rails ship complete with End Caps, installation instructions, and adjustment wrenches for fast, ready-to-install performance.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system delivers a secure attachment to 1/2" (12 mm) glass with the fastest installation time among door rail systems—experienced installers can prepare a door for installation in less than ten minutes. Rails are completely fabricated with the End Caps installed; after mounting the rail the only remaining step before hanging the door is to attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System provides ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door. This standard feature is included on both top and bottom rails. To access adjustments after installation, remove the End Cap to reveal three socket head cap bolts: the center bolt secures the adjustable slide; the two outer bolts adjust the slide in or out by 1/8" (3 mm).

Because of the low profile slide, pivots with slotted grooves can be positioned other than the American Standard Setback of 2-3/4" (69.8 mm), allowing fabrication for vertically out-of-square openings.

Other Wedge-Lock® Door Rail benefits:

• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing resists shifting and loss of adjustment
• Internal components remain assembled—no removal required for installation
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in Jamb Alignment Block; arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are offered in several standard architectural finishes and can be quoted in custom finishes
