Satin Anodized Tapered DRS Patch Rail for 1/2in Glass Door w/ Lock 8in

• 8" (203 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (fastest installation)
• Low profile rails are only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

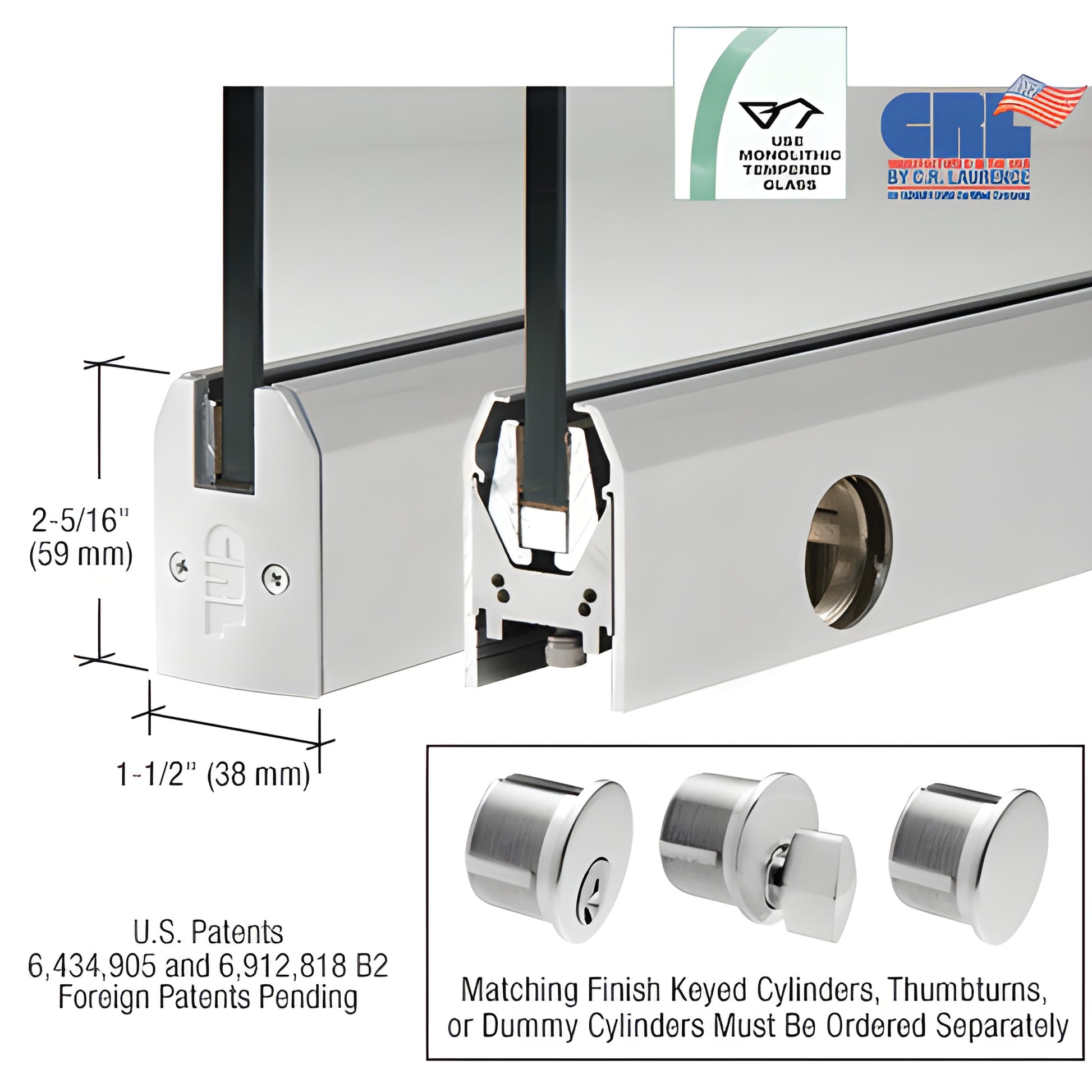

Our CRL Low Profile Door Rail (SKU: DR2TSA12PL) measures 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Low profile door rails ship ready-to-install with end caps, installation instructions, and adjustment wrenches.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system provides a secure, single-component housing that won’t shift out of adjustment and installs faster than competing door rail systems—experienced installers can prepare a door in less than ten minutes. Internal components do not require removal before installation, and glass securing pads are designed for longevity in extreme environments.

CRL rails include an adjustable door alignment slide pre-assembled into both top and bottom rails, allowing 1/8" (3 mm) in/out adjustment toward or away from the jamb without removing the door. After installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide, and the outer bolts provide the 1/8" (3 mm) adjustment. The low-profile slide also allows pivots with slotted grooves to be located off the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other product highlights:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-piece housing—no two-part rail that can fall out of adjustment
• Internal components remain in place for faster installation
• Built-in jamb alignment block standard (arms and pivots sold separately)

Rails with locks are supplied with the latch mechanism installed; matching finish keyed cylinders or thumbturns must be ordered separately. Pivot inserts (1NT701, 1NT703, 1NT704) and closer arms/floor or overhead pivots are sold separately.

CRL Wedge-Lock® Low Profile Door Rails are available in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e
