DRS 8in Polished Stainless Door Patch Rail w/ Lock for 1/2in Glass

• 8" (203 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

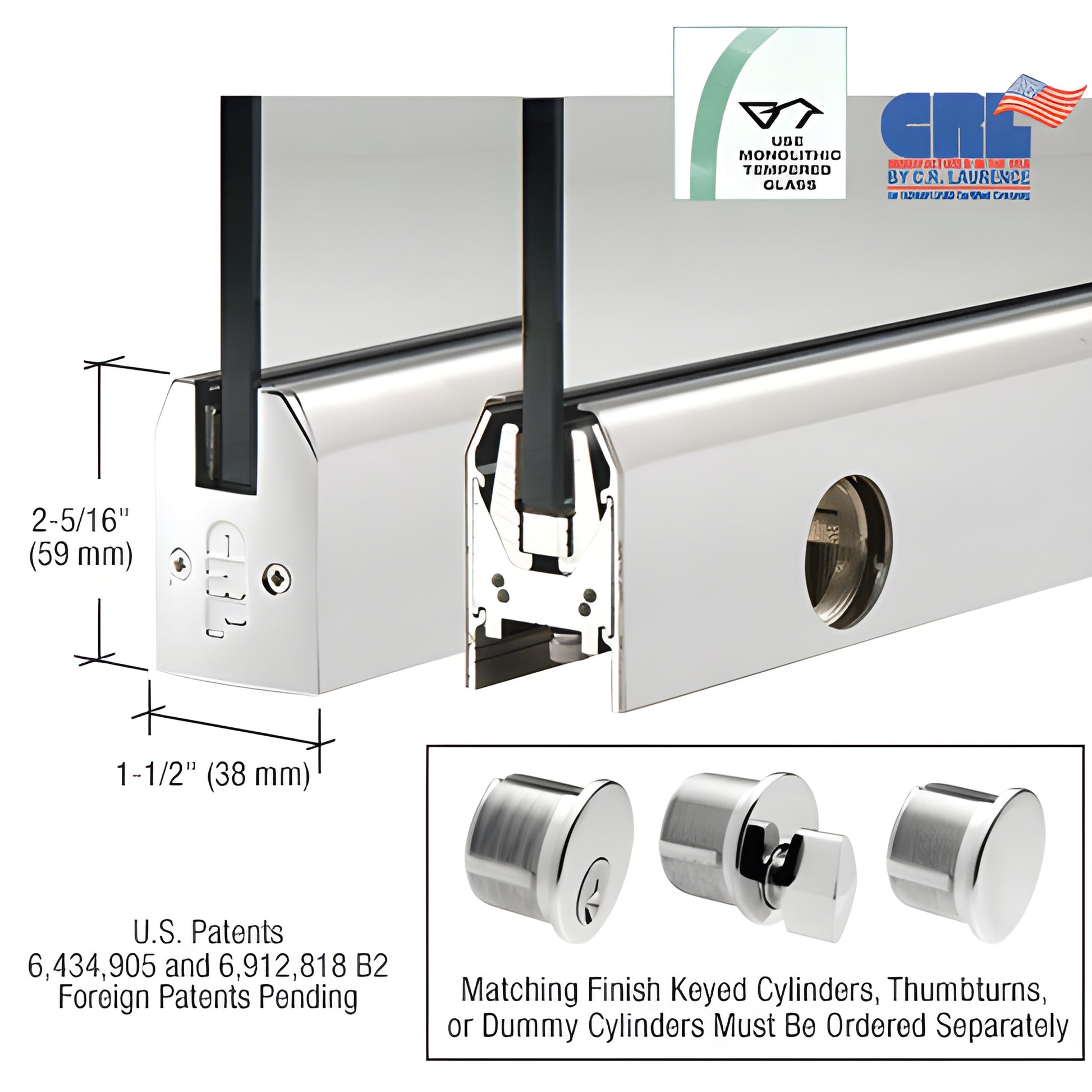

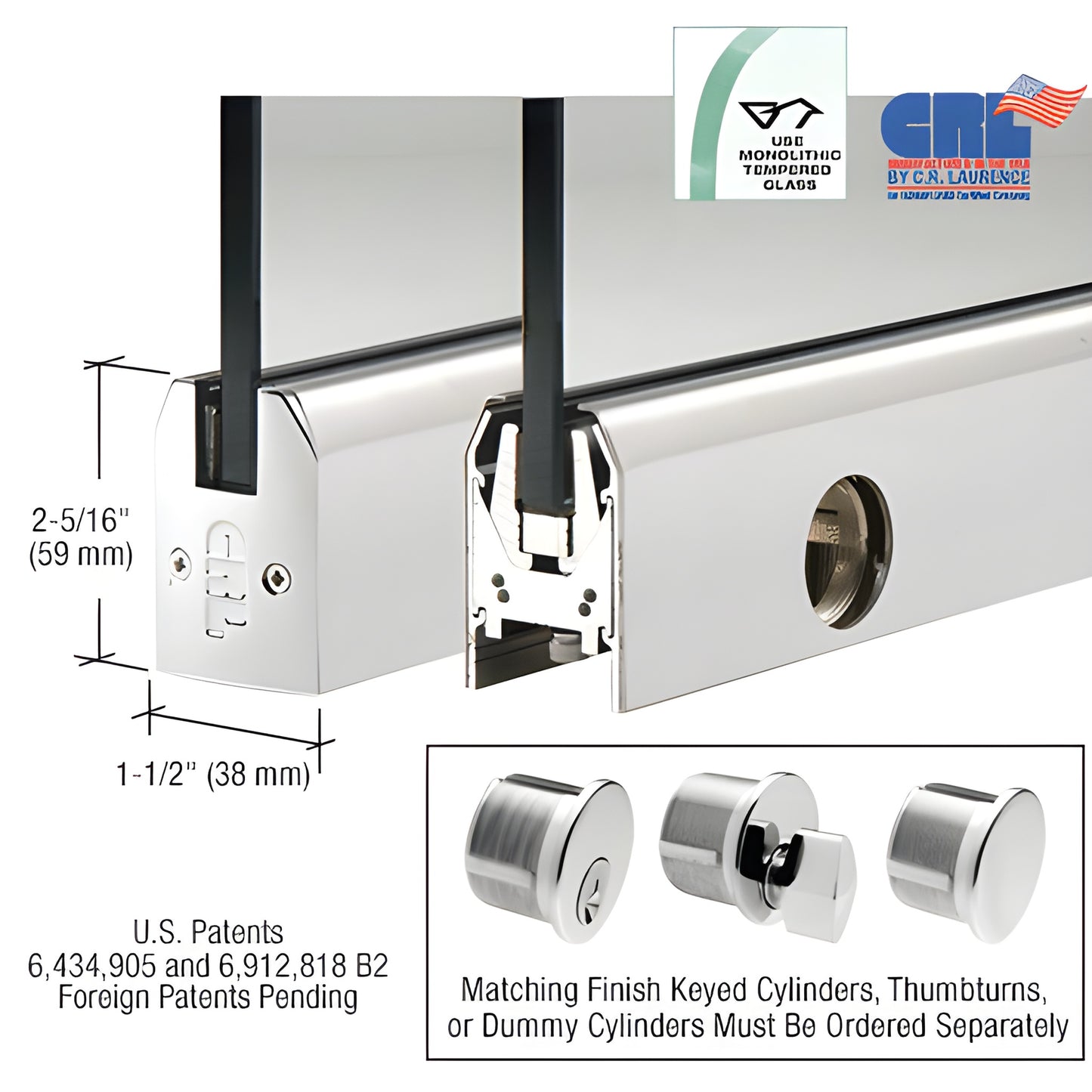

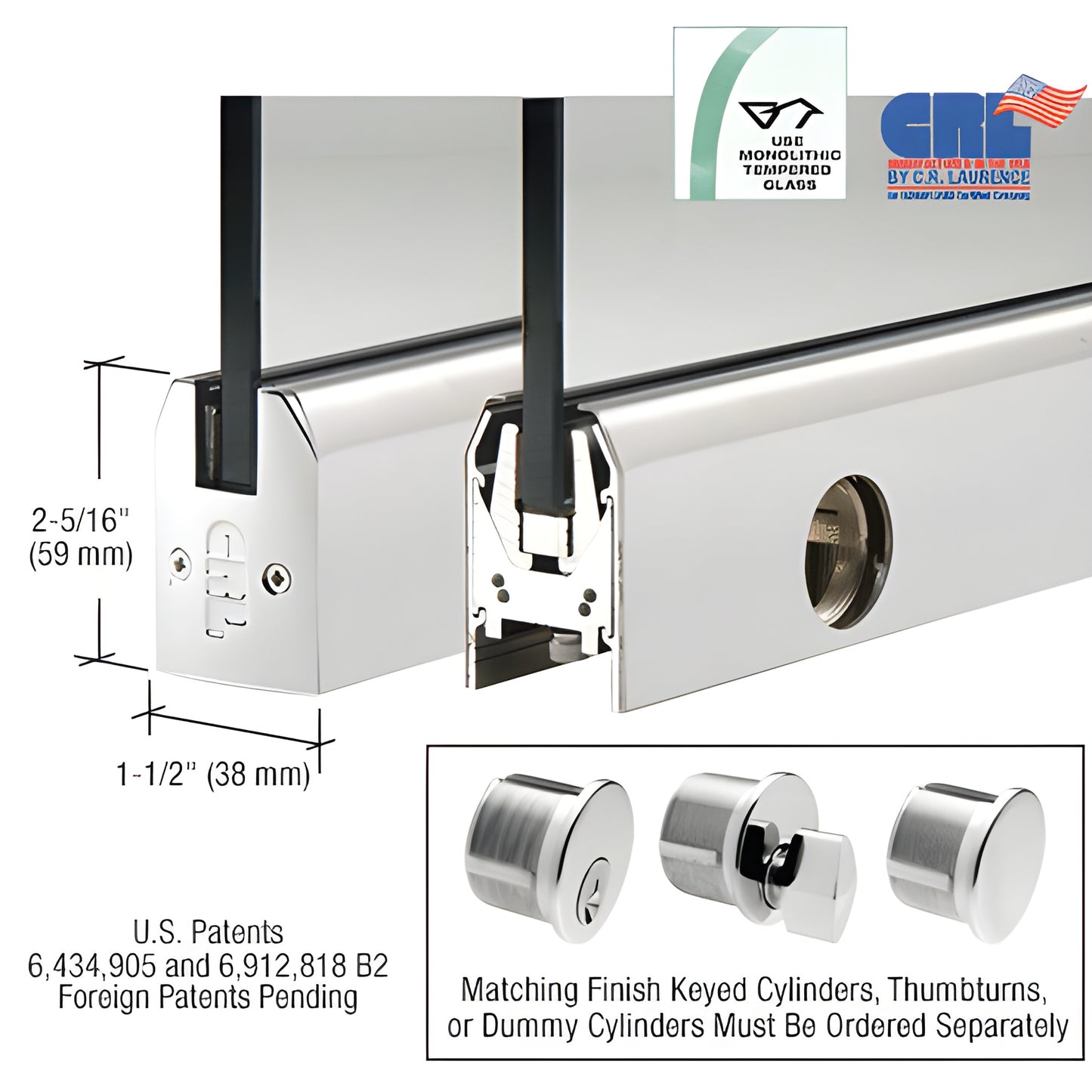

Our CRL Low Profile Door Rail (SKU: DR2TPS12PL) is a compact, ready-to-install door rail measuring 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide. It features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) for fast, secure attachment to 1/2" (12 mm) glass panels. Rails ship complete with End Caps, installation instructions, and adjustment wrenches for quick field installation.

NOTE: Actual Product Height: 2-5/16" (59 mm).

The Wedge-Lock® system delivers industry-leading installation speed—experienced installers can prepare a door in under ten minutes—and reliable long-term performance. CRL rails arrive fabricated and assembled; after mounting the rail, simply attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. The Adjustable Door Alignment System provides 1/8" (3 mm) in/out adjustment without removing the door and is standard on both top and bottom rails.

To make final adjustments, remove the End Cap to access three socket-head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide allows pivots with slotted grooves to be positioned off the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other benefits of Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass in select models
• Rigid, single-component housing—won’t shift or fall out of adjustment
• Internal components remain in place during installation
• Durable glass securing pads designed for extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard architectural finishes and can be quoted in custom finishes
