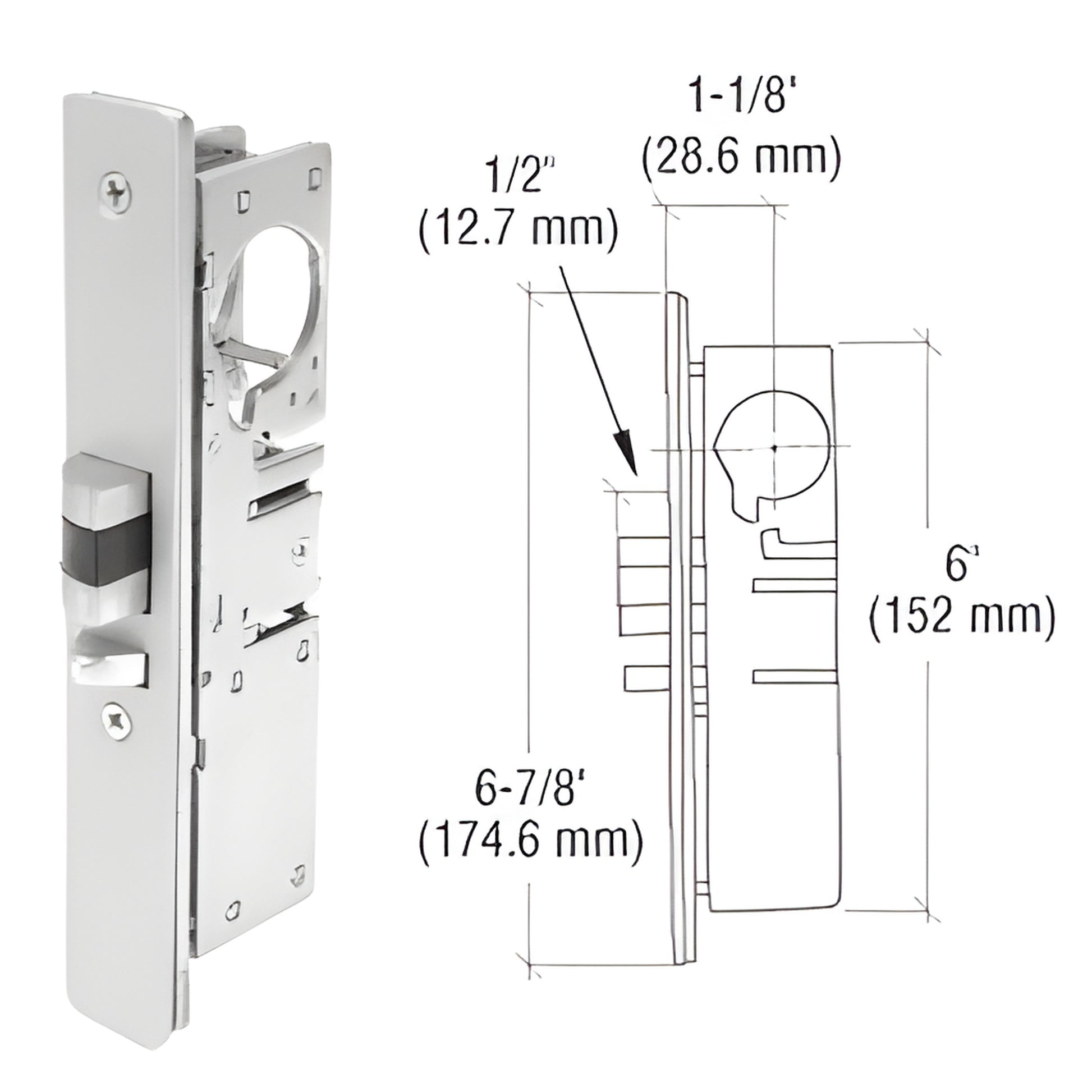

• CRL DL2140BLH narrow-stile aluminum door deadlock, steel body, 1/2" throw, 6-7/8" tall, left-hand.
1 1

CRL

CRL Deadlatch Door Lock 1-1/8" Backset Narrow Stile Left-Hand

CRL Deadlatch Door Lock 1-1/8" Backset Narrow Stile Left-Hand

$18.74 CAD
$18.74 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DL2140BLH
Shipping Weight: 7.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Cylinder Backset
1-1/8 in. (29 mm)
Finish/Color
Aluminum
Handing
Left Hand
Material
Steel
Throw Latch
1/2 in. (13 mm)

Overview

  • 1/2" (13 mm) throw dead latch
  • Cylinder backsets: 31/32" or 1-1/8" (25 or 29 mm)
  • Field reversible for opposite hand
  • Key-controlled dogging
  • Accepts standard 1-5/32" (29 mm) diameter mortise key or thumbturn cylinders with AR MS-type cam
  • Faceplate and strike sold separately (see Cat. Nos. DL4515, DL4540, DL4545)

CRL Narrow Stile Aluminum Door Deadlock (SKU: DL2140BLH) delivers high-security locking for narrow stile aluminum doors. With a hardened-steel 1/2" (13 mm) throw and choice of 31/32" or 1-1/8" (25 or 29 mm) backsets, this deadlock is ideal for storefronts and commercial aluminum frame doors requiring a compact, reliable dead latch. Field reversible design and key-controlled dogging increase installation flexibility and user control. Fits standard 1-5/32" mortise key cylinders or thumbturn cylinders using an AR MS-type cam.

NOTE: Faceplates and strikes are sold separately. For strikes use Cat. Nos. DL4515, DL4540, or DL4545.

Most shipping weights are approximate and have not been verified. If exact weight is required for shipping-cost calculation, request this prior to ordering by contacting CRL Customer Service. Product images represent the actual product or a close representation; colors may vary by monitor.


Ordering: Available now — check stock for SKU DL2140BLH or contact CRL Customer Service to purchase.
