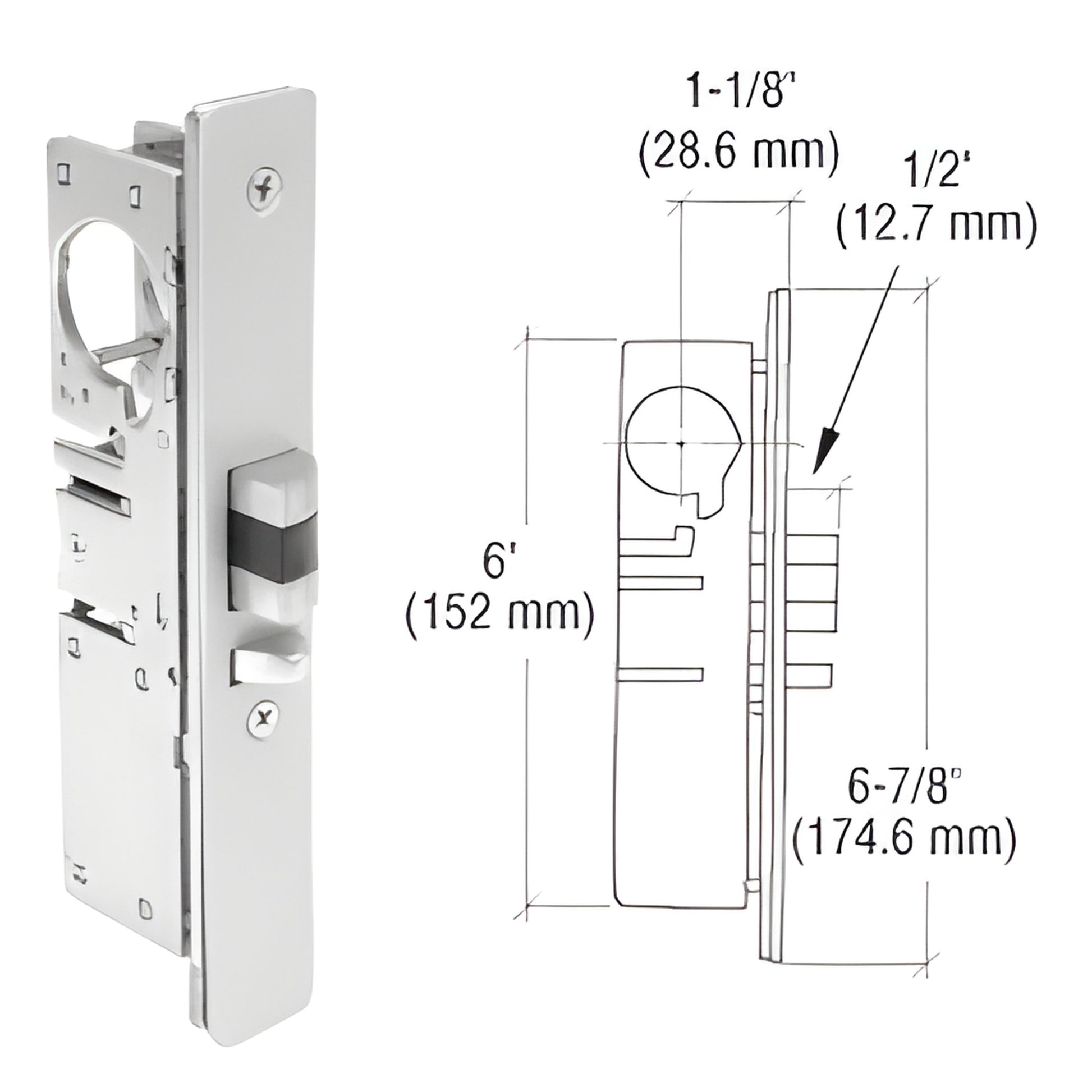

• CRL DL2140BRH narrow-stile aluminum door deadlock, 1/2" throw hardened steel latch with dimensional diagram
1 1

CRL

CRL 1-1/8in Backset Narrow-Stile Right-Hand Deadlatch Door Lock

CRL 1-1/8in Backset Narrow-Stile Right-Hand Deadlatch Door Lock

$18.74 CAD
$18.74 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DL2140BRH
Shipping Weight: 1.04 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Cylinder Backset
1-1/8 in. (29 mm)
Finish/Color
Aluminum
Handing
Right Hand
Material
Steel
Throw Latch
1/2 in. (13 mm)

Overview

  • 1/2" (13 mm) throw dead latch — hardened steel for durable security
  • Cylinder backsets: 31/32" or 1-1/8" (25 or 29 mm)
  • Field reversible for opposite hand installation
  • Key-controlled dogging for propped-open function
  • Accepts standard 1-5/32" (29 mm) diameter mortise key or thumbturn cylinders with AR MS-type cam
  • Faceplate and strike sold separately (optional)

This CRL Narrow Stile Aluminum Door Deadlock (SKU: DL2140BRH) delivers secure, compact locking for narrow stile aluminum doors. Designed for a 1/2" (13 mm) throw and available with either a 31/32" (25 mm) or 1-1/8" (29 mm) backset, the dead latch is made of hardened steel and accepts standard mortise keys or compatible thumbturn cylinders. Ideal for commercial storefronts and aluminum-framed doors requiring a narrow backset deadlock with key-controlled dogging and field-reversible installation.

NOTE: Faceplates and strikes are sold separately. Compatible strike Cat. Nos.: DL4515, DL4540, DL4545.

Most shipping weights are approximate and have not been verified. If an exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are of the actual product or a close representation; colors may vary by monitor and video card settings.
