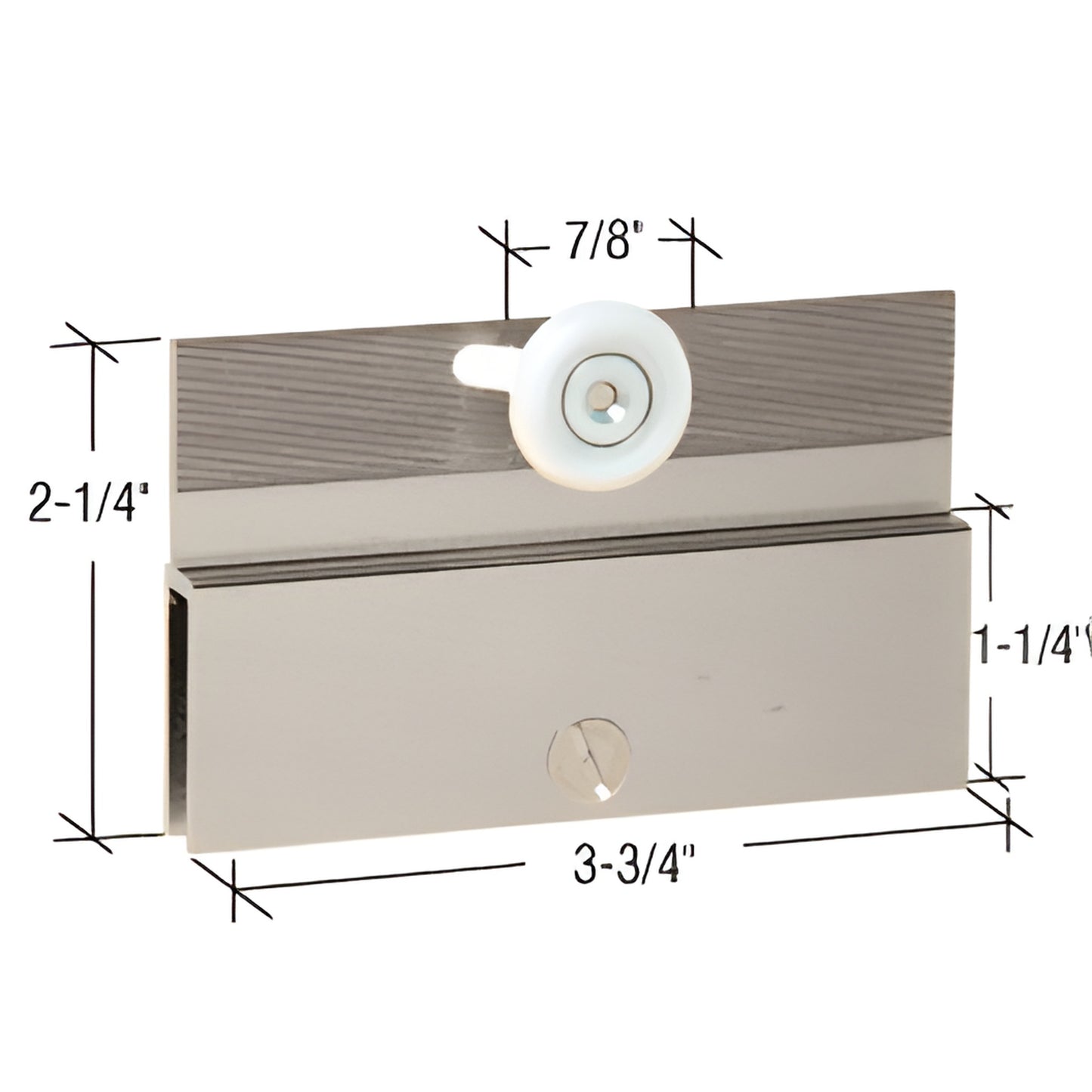

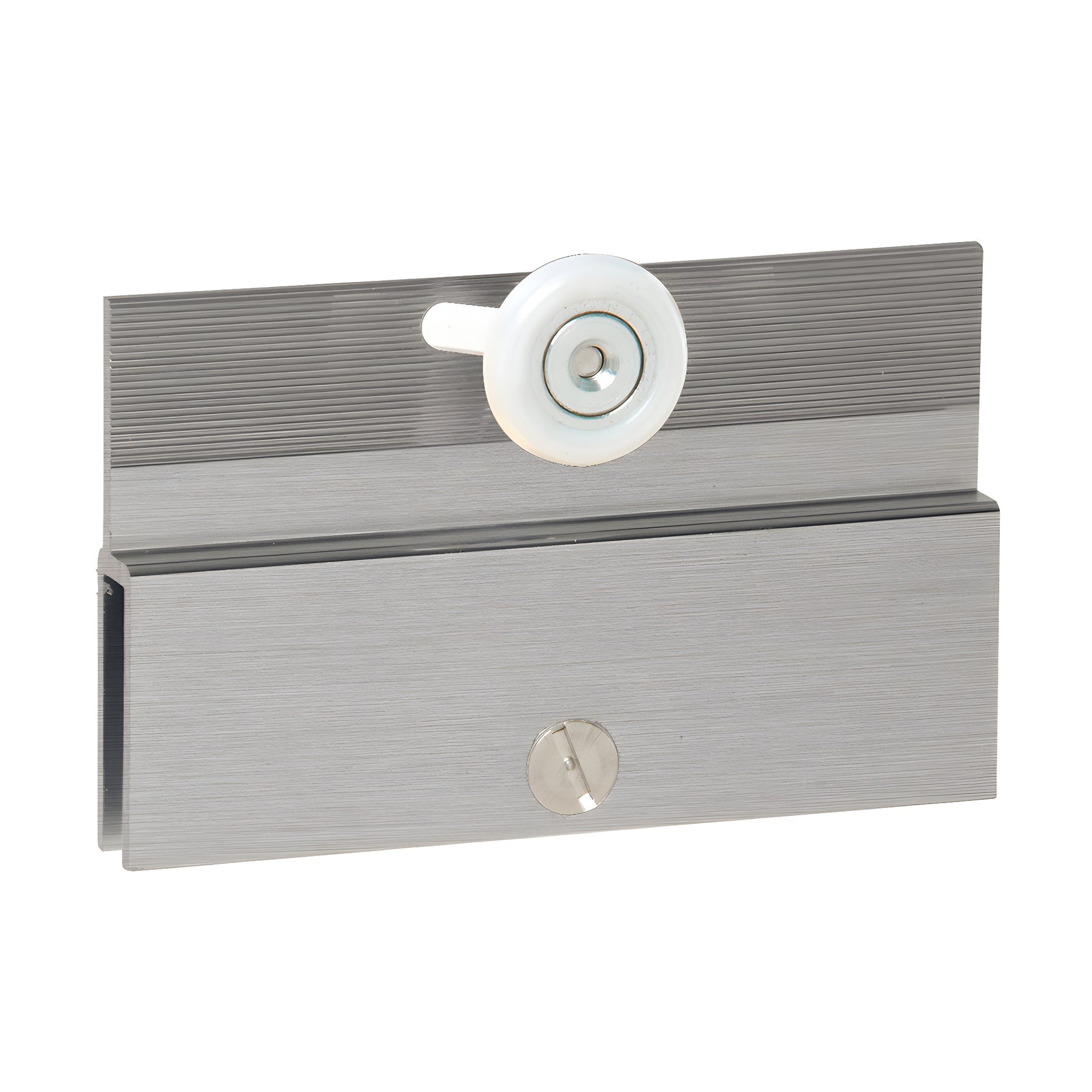

CRL 1/4" Brushed Nickel Top Hanger Bracket for CK/DK Cottage Sliders

• Roller Bracket Assembly for Cottage Series sliding shower doors—fits 1/4" (6 mm) glass
• Finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, Oil Rubbed Bronze—match our shower door kits
• DIY-friendly or send us a drawing to customize a unit (dimensions required)
• Designed for monolithic tempered glass panels

CRL Top Hanger for CK/DK Cottage Series Sliders — SKU: DK67BN components add versatility to our frameless sliding shower door kits. Use to add panels and create a designer enclosure or build a custom sliding unit by combining compatible parts. Stock lengths of headers, header fillers, bottom sills, sidelite sills, side jambs, top hangers and accessory items complete the selection.

Use these components to build the enclosure you need, or send a drawing (with dimensions) and we will assemble a customized kit that includes everything required except glass and silicone. Installation instructions are included with each custom kit.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (aluminum); Towel Bar (brass tubing); Knob (solid brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) — glass not included
Recommended Maximum Slider Sizes: 1/4" (6 mm) glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob – one 1/2" (12 mm) diameter hole; Top Hangers – four 1/2" (12 mm) diameter holes (two per glass panel)

Product Warning:

Hardware package includes corners and header bracket required to convert an inline shower door kit into an angled enclosure when used with the appropriate extrusions listed above. Must be ordered separately. Polycarbonates are translucent in color.
