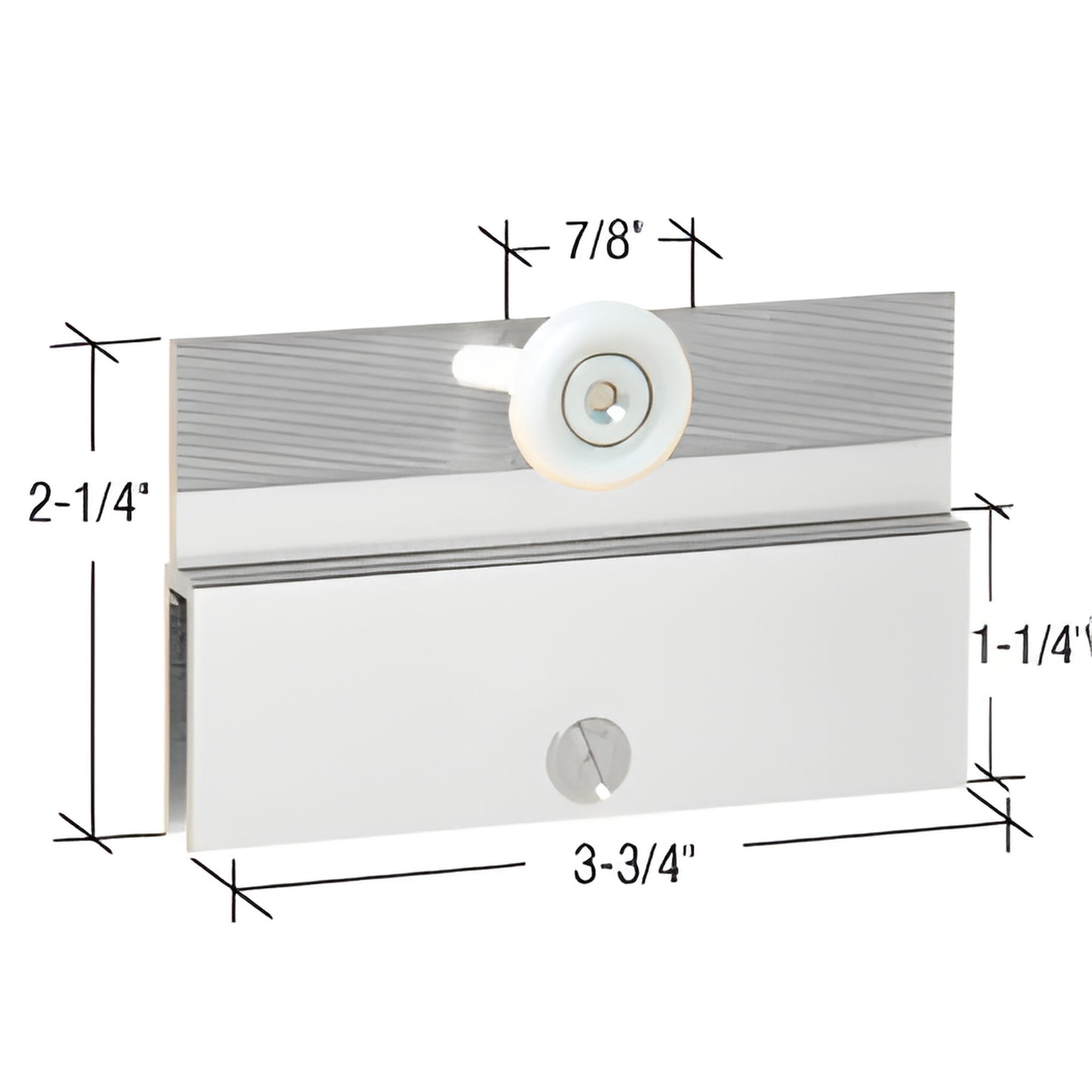

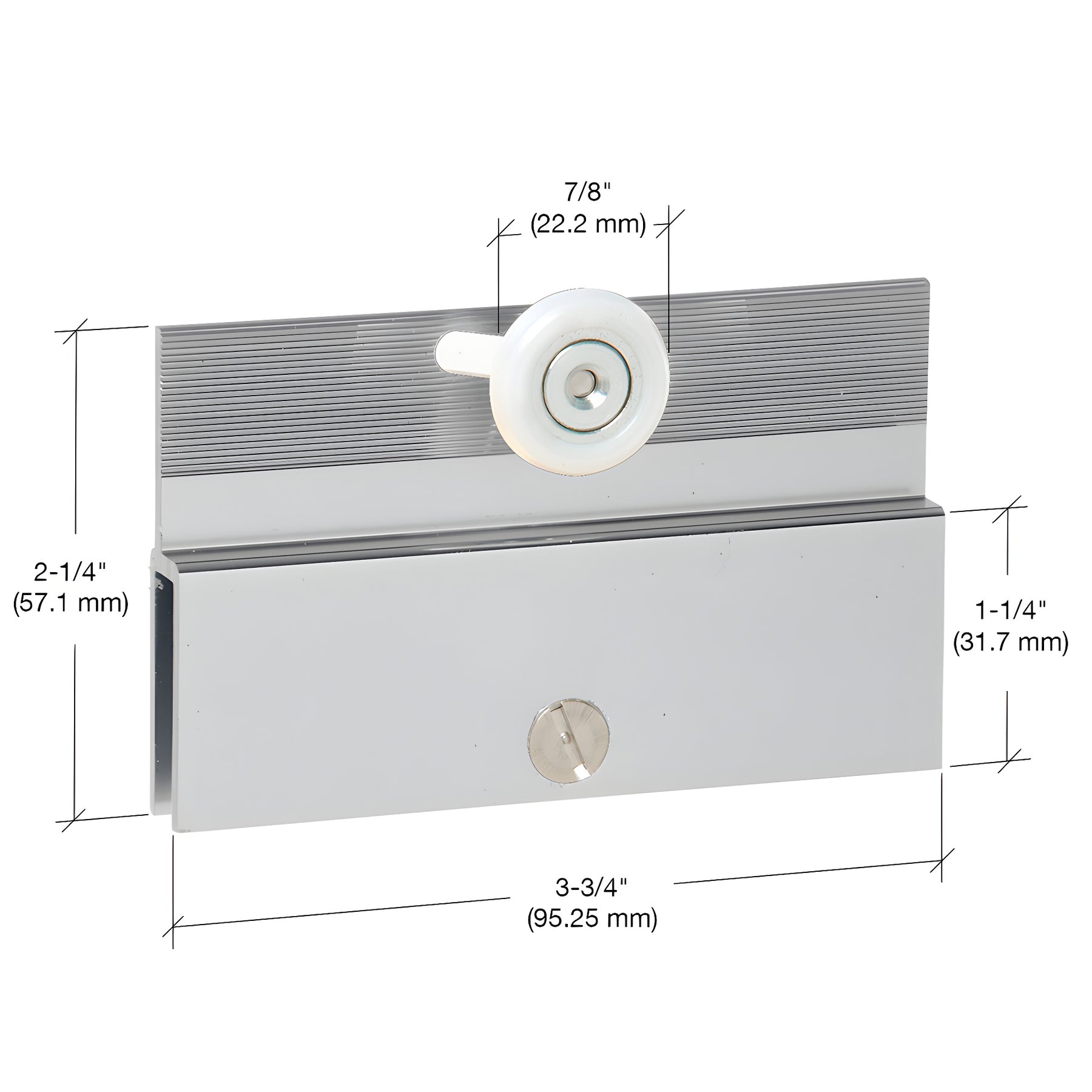

CRL Brite Anodized 1/4 in Top Hanger Bracket for Cottage Sliding Door

• Roller Bracket Assembly for CK/DK Cottage Series—fits 1/4" (6 mm) glass for frameless sliding shower doors
• Available finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, Oil Rubbed Bronze to match complete kits
• DIY installation or send drawing for custom configuration
• Use with monolithic tempered glass

CRL Top Hanger for CK/DK Cottage Series Sliders components add versatility to our frameless sliding shower door hardware. Use DK67BA parts to add panels, build a custom sliding unit, or expand a designer enclosure. Stock lengths of headers, header fillers, bottom sills, sidelite sills, side jambs, top hangers and related accessories complete the selection.

Use these components to build the shower enclosure you need, or email/fax a drawing with dimensions and we will assemble a customized kit (glass and silicone not included). Installation instructions are included with each custom kit.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
SKU: DK67BA
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass not included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob – One 1/2" (12 mm) diameter hole; Top Hangers – Four 1/2" (12 mm) diameter holes (two per glass panel)

Product Warning:

Hardware package includes corners and header bracket required to convert inline shower door kit into an angled enclosure when used with the appropriate extrusions listed above (must be ordered separately). Polycarbonates are translucent in color.
