Product Details
- For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
- High Grade Alloy 316 Stainless Steel Standard
- Designed to Mount to Wood, Concrete or Steel
- Custom Sizes and Finishes Available

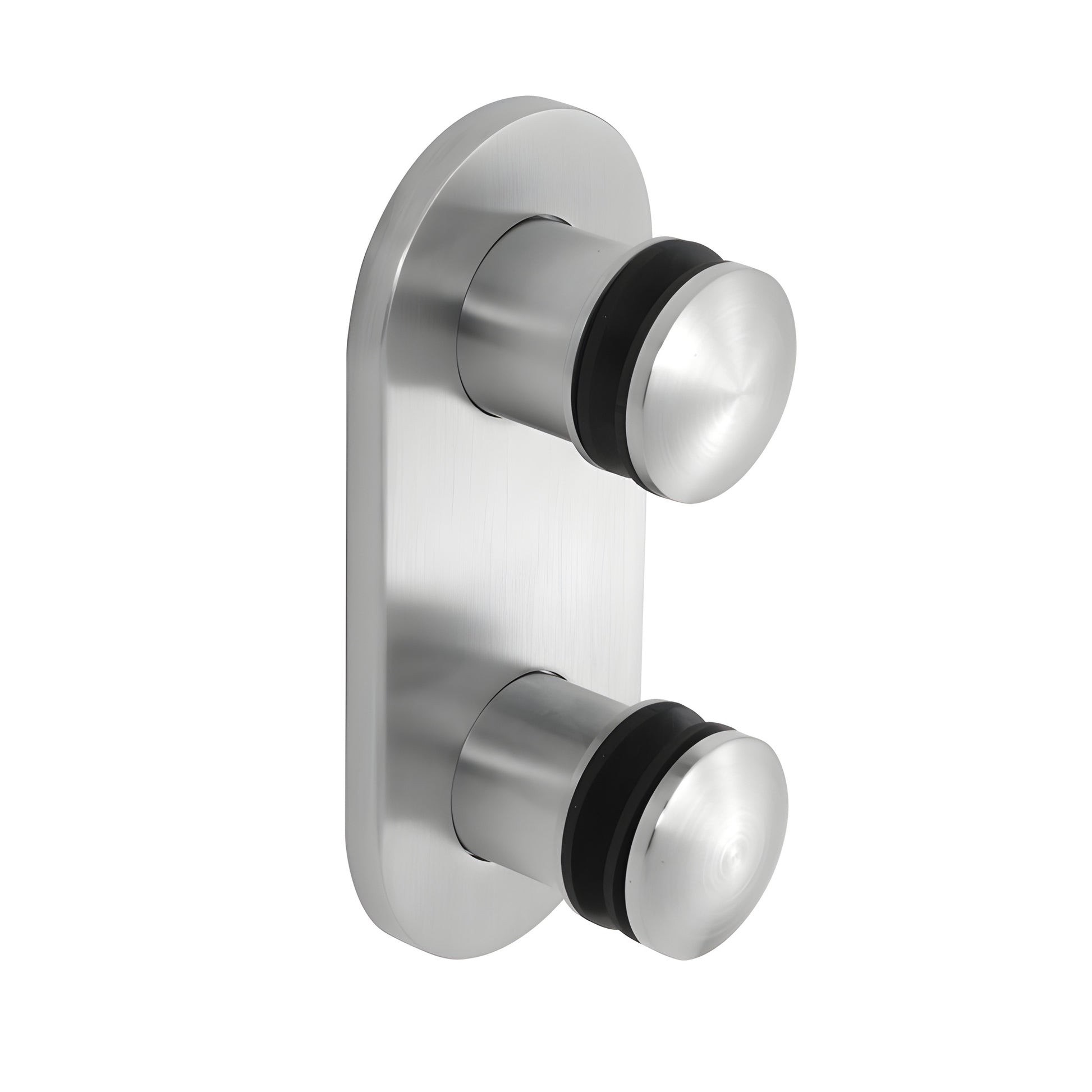

This CRL Point Supported Standoff Fitting has a 4" x 9-1/4" (102 x 235 mm) back plate giving the installer more adjustment, and four anchor points during installation for those tricky job site mounting conditions. The steel back plate can be fastened directly to steel, concrete, or wood substrates and includes a cover plate. This versatile Standoff Fitting features a 2-3/8" (60 mm) diameter domed cap with a 3/8"-16 threaded stainless steel rod to secure the glass panel.

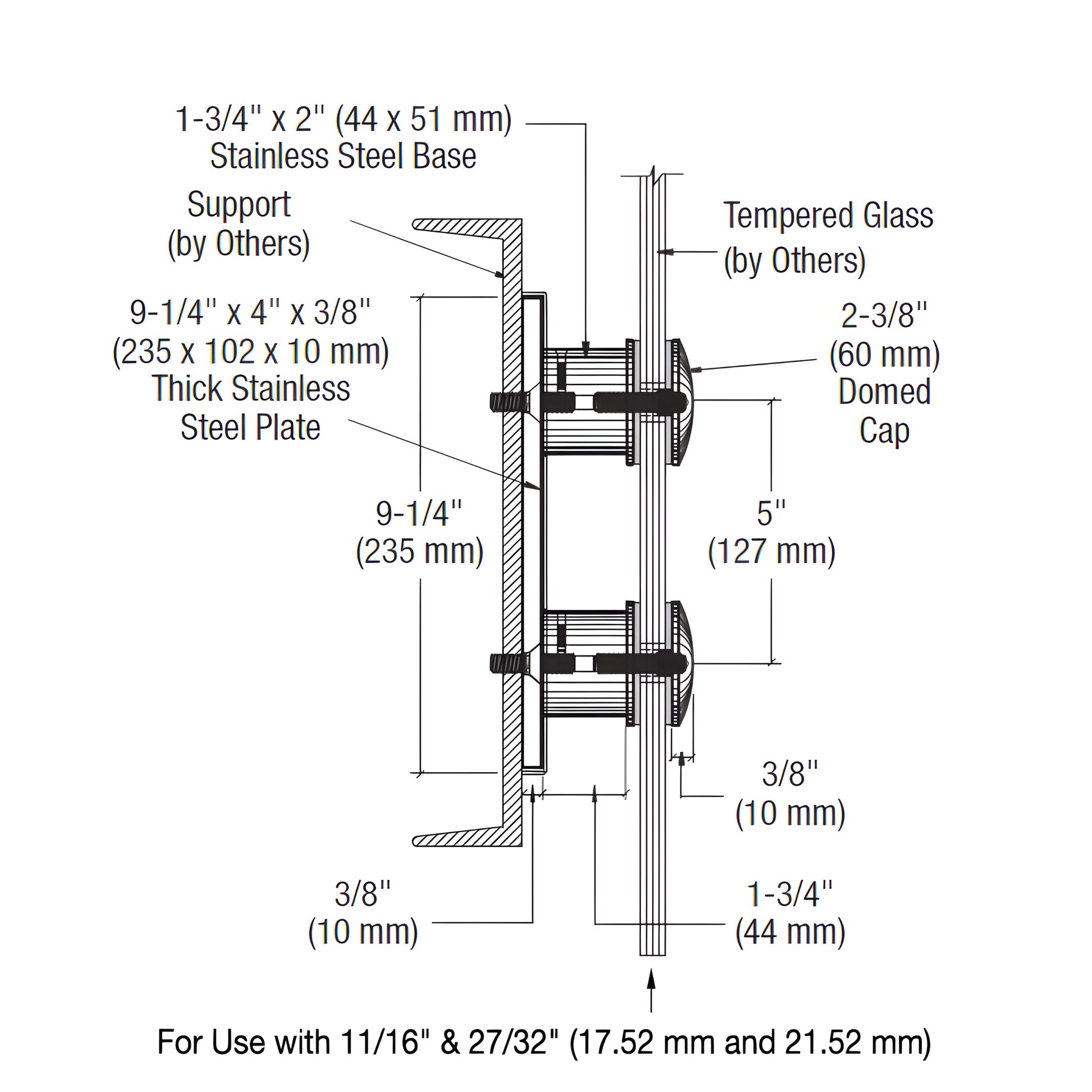

The 2-3/8" (60 mm) diameter Standoffs are mechanically fastened to a 3/8" (10 mm) thick Alloy 316 grade stainless steel back plate that is pre-drilled for mounting. Two popular stainless steel finishes are available from stock. If your customer has a special job site condition, custom diameters and lengths are also available. Attachment anchors for wood, concrete or steel are sold separately.
SPECIFICATIONS:
For use with 1/2" or 3/4" (12 or 19 mm) Monolithic Tempered Glass. Also for use with 9/16" or 27/32" (13.52 or 21.52 mm) Laminated Tempered Glass using Kuraray SentryGlas® Interlayer. Do not use with raw or annealed glass.
GLASS FABRICATION: Two 3/4" (19 mm) Diameter Holes Per Fitting.
Spacing: Maximum spacing between fittings depends on use and mounting conditions; Minimum hole spacing between standoffs is 4" (102 mm). See our engineering report at http://www.crlaurence.com/datasheets/testreports/docs/Standoff_Railing_Sys_Rep_032713.pdf
Product Warning:
For use with 1/2" or 3/4" (12 or 19 mm) tempered glass. Do not use with raw or annealed glass. NOTE: Maximum bracket spacing is 24" (610 mm) on center with 48" (1.22 m) maximum glass panel widths.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
