CRL 316 Polished Stainless 2-3/8" Glass Standoff with Mounting Plate

• Compatible with 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass, or 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer
• High-grade 316 stainless steel alloy (standard) for corrosion resistance

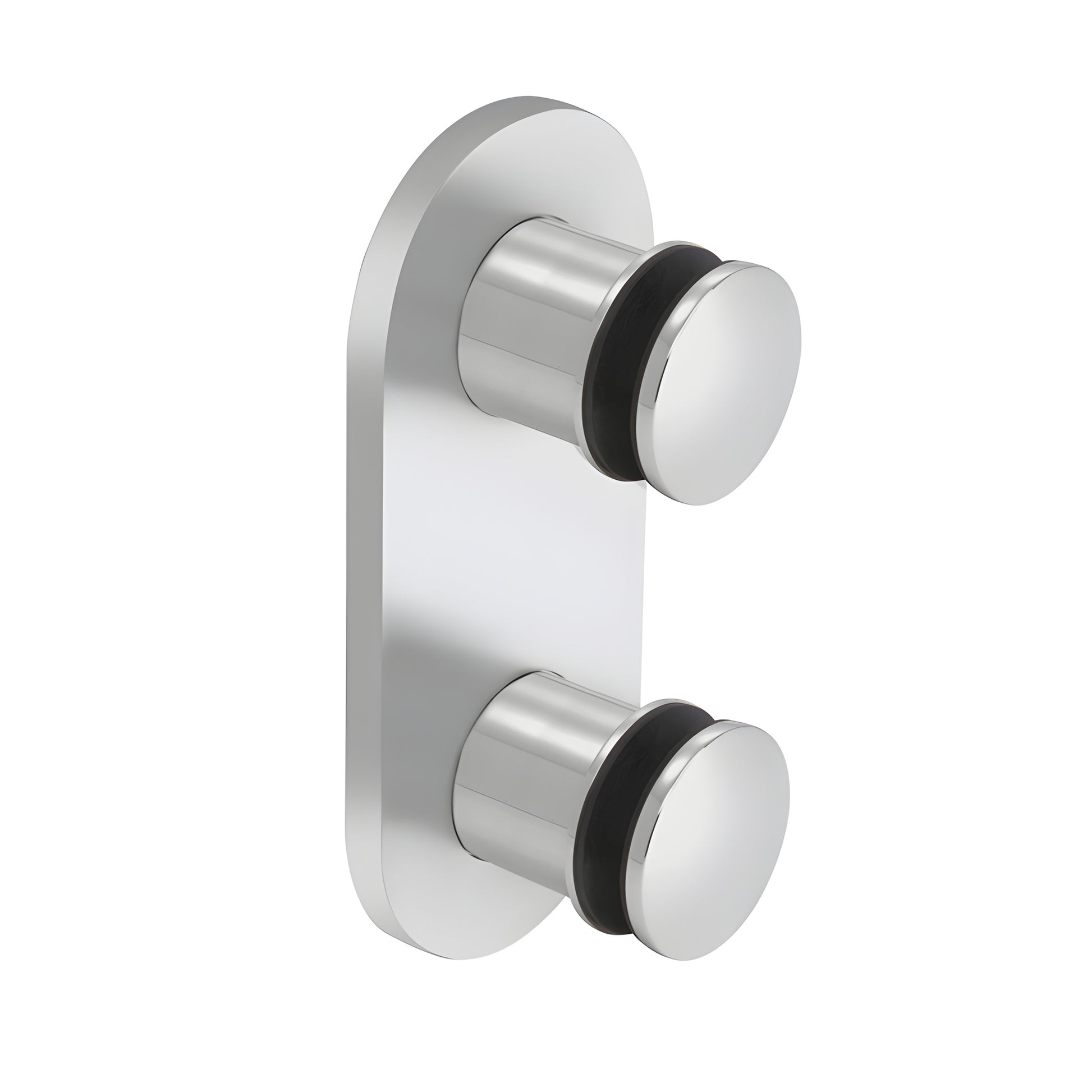

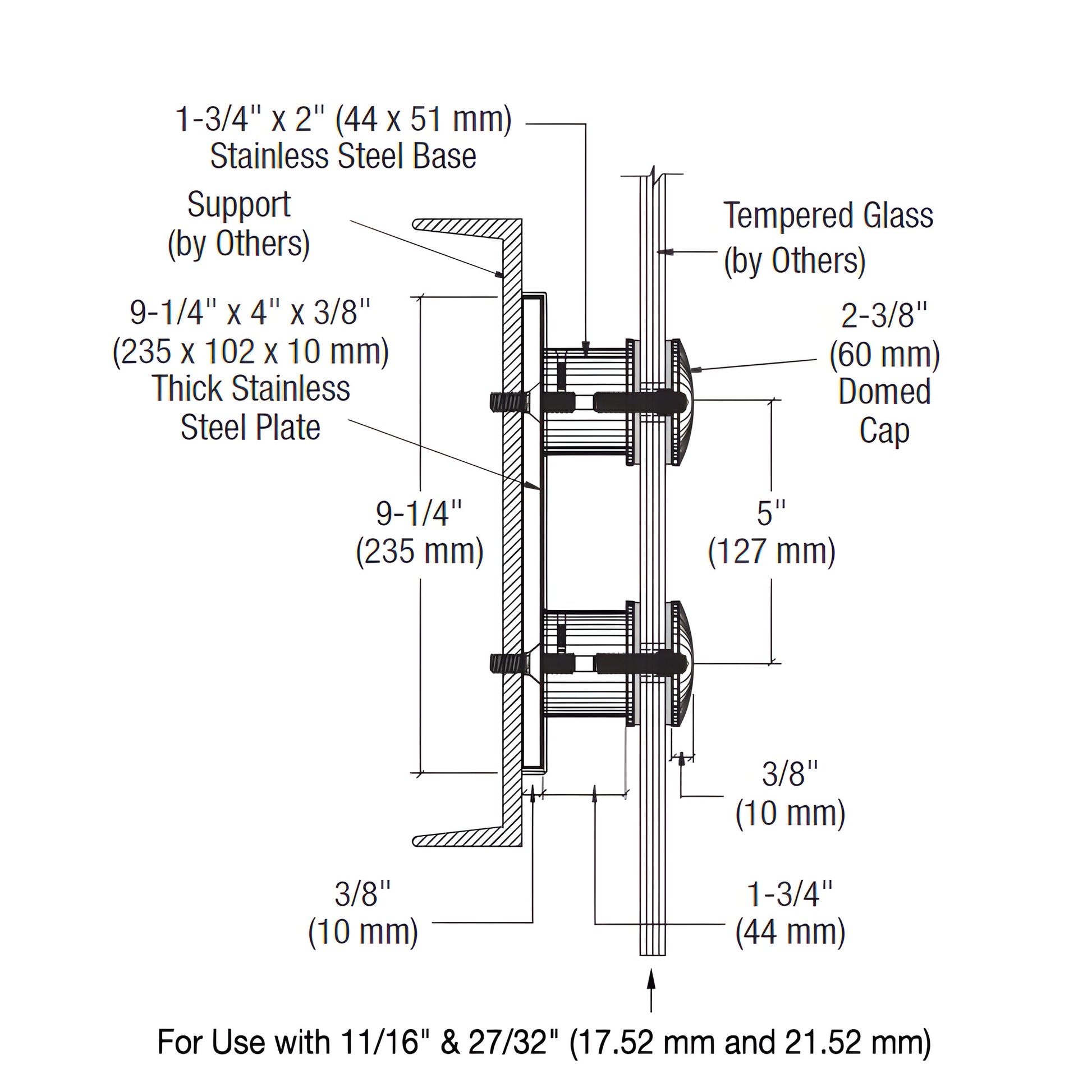

This Point Supported Standoff Fitting (SKU: RS0B25PS) includes a 4" x 9-1/4" (102 x 235 mm) pre-drilled 3/8" (10 mm) thick 316 stainless steel back plate with four anchor points for secure installation on steel, concrete, or wood substrates. The unit features a 2-3/8" (60 mm) diameter domed cap and a 3/8"-16 threaded stainless steel rod to clamp the glass panel. A cover plate is included.

The 2-3/8" (60 mm) diameter standoffs are mechanically fastened to the back plate. Two popular stainless finishes are available from stock; custom diameters and lengths can be ordered for special job-site conditions. Attachment anchors for wood, concrete, or steel are sold separately.

SPECIFICATIONS: For use with 1/2" or 3/4" (12 or 19 mm) monolithic tempered glass, and 9/16" or 27/32" (13.52 or 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer. Do not use with raw or annealed glass.

GLASS FABRICATION: Two 3/4" (19 mm) diameter holes per fitting.

SPACING: Maximum horizontal spacing between fittings depends on application and mounting conditions.


Product Warning:

For use only with 1/2" or 3/4" (12 or 19 mm) tempered glass (do not use with raw or annealed glass). NOTE: Maximum bracket spacing is 24" (610 mm) on center with 48" (1.22 m) maximum glass panel width.

Stainless Steel Advisory:

Durable 316 stainless
