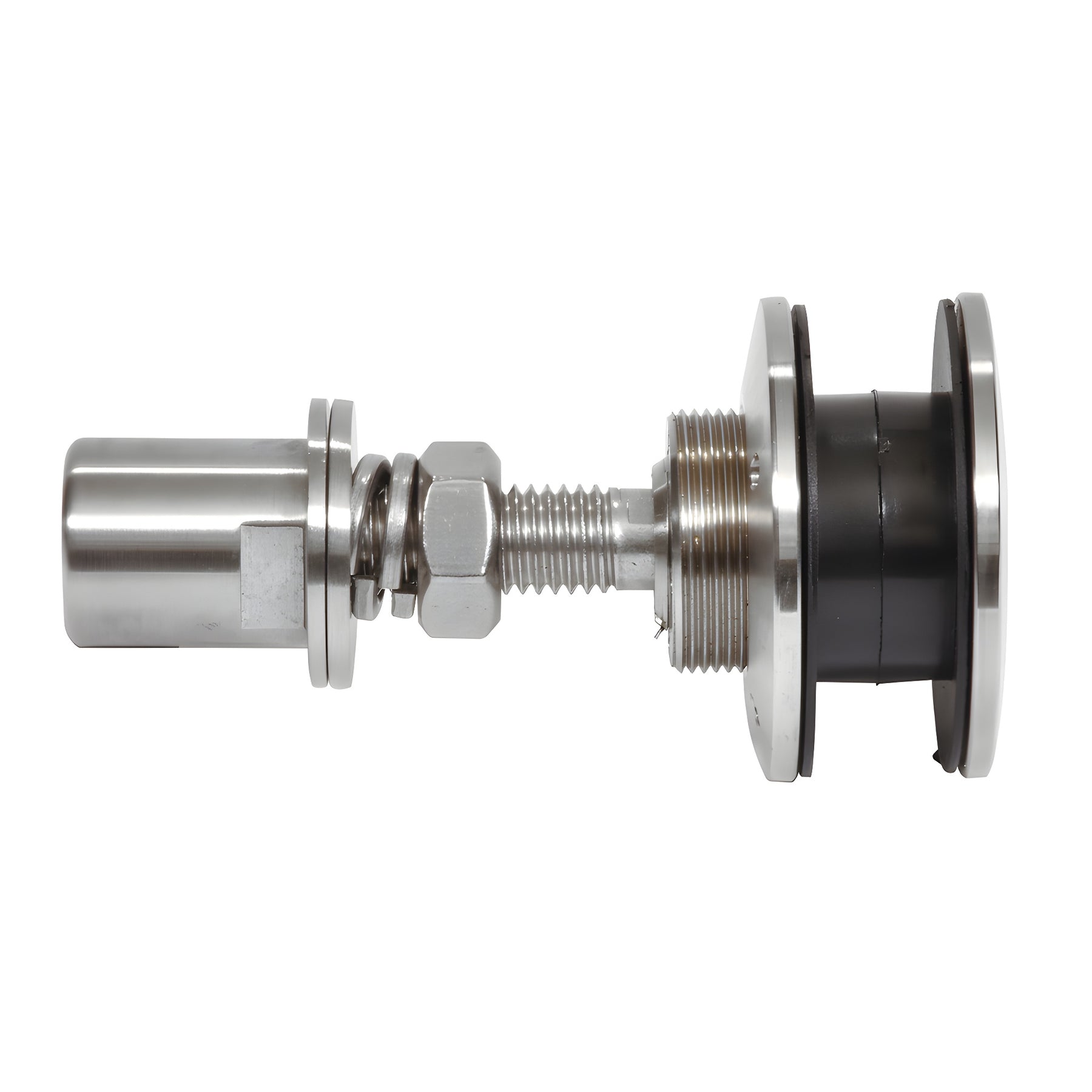

CRL 316 Brushed Stainless Swivel Glass Fastener 1/2" to 1-1/16"
Item# HSF14BS
Shipping Weight: 10.56 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.56 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- Designed for the "All Glass" look
- For use with 1/2" to 1-1/16" (12 to 27 mm) tempered glass
- Made of 316 alloy stainless steel for superior corrosion resistance
- Available in brushed and polished stainless finishes
- Compatible with tempered monolithic and tempered laminated glass
- Ionoplast interlayer recommended for laminated glass applications

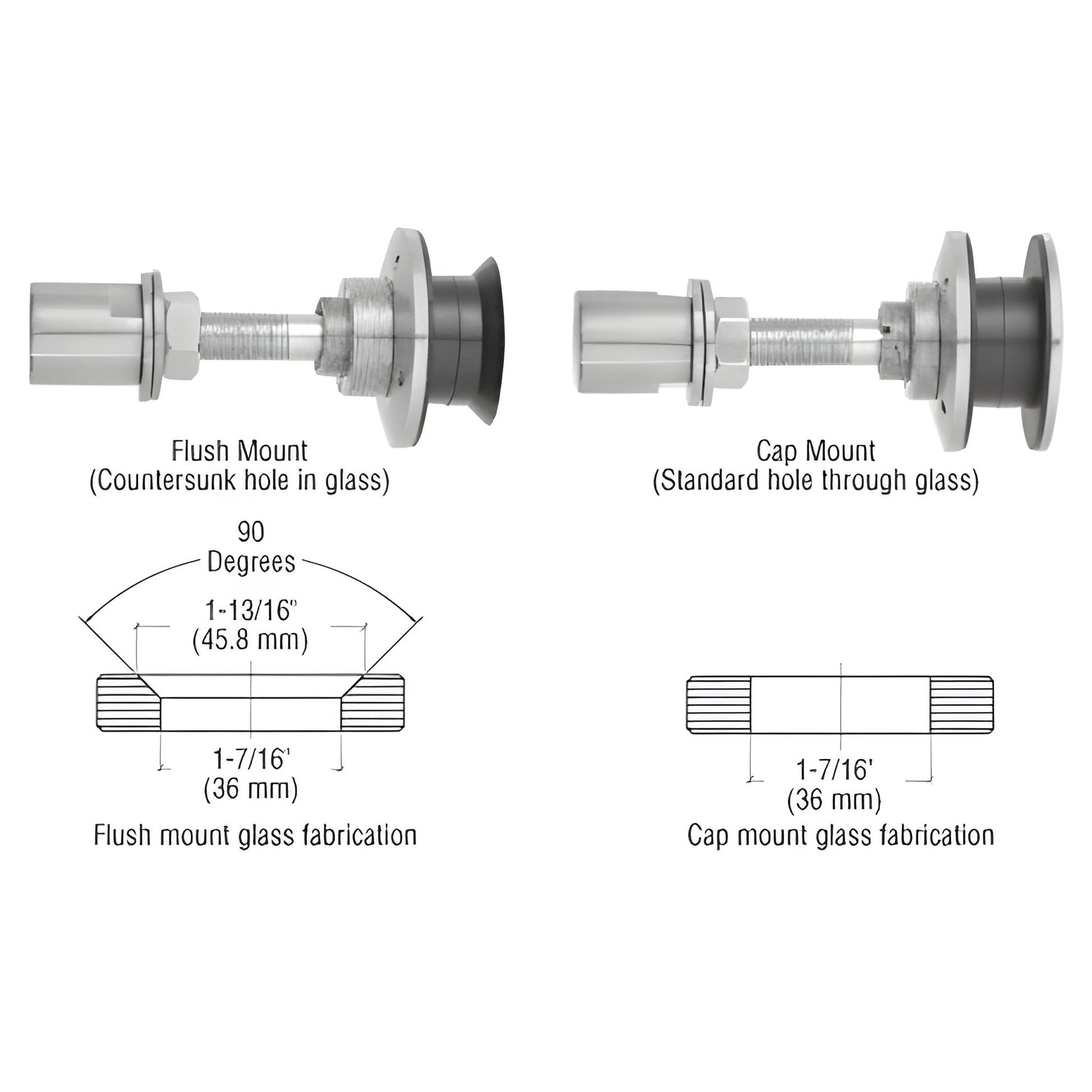

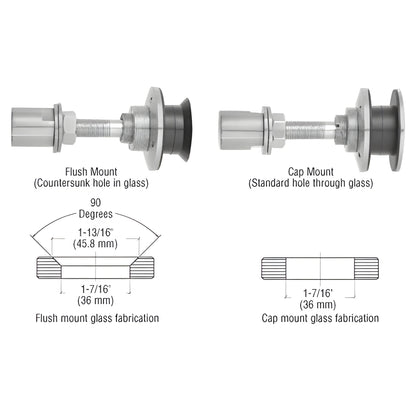

The head of the CRL Swivel Glass Attachment (SKU HSF14BS) tilts up to 6 degrees on a ball-and-socket joint to distribute load evenly across the glass panel—reducing stress concentrations at the hole. Ideal for glass subject to live loads, this swivel head fitting offers a versatile Combination Glass Attachment design: use it for a smooth, flush exterior when the glass is fabricated with a countersunk hole, or install as a cap-mount using the supplied adapter washer with a standard hole.
Note: For flush-mount installations, provide your glass fabricator with a sample Flush Mount Glass Attachment to verify proper fit.
Product Warning:
Do not use with annealed or raw glass.
Most shipping weights are approximate and have not been verified. If exact weight is required for shipping cost calculation, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor and video card.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
High-quality 316 stainless swivel glass attachment for tempered glass—perfect for architectural glass panels and frameless glass systems. Order HSF14BS or contact CRL for a sample and installation guidance.
