Product Details
- Designed for the 'All-Glass' Look
- For Use with 1/2" to 1-1/16" (12 to 27 mm) Tempered Glass
- Made of 316 Alloy Stainless Steel
- Available in Polished and Brushed Stainless Finishes
- Use with Tempered Monolithic or Tempered Laminated Glass
- Ionoplast Interlayer recommended for Laminated Glass

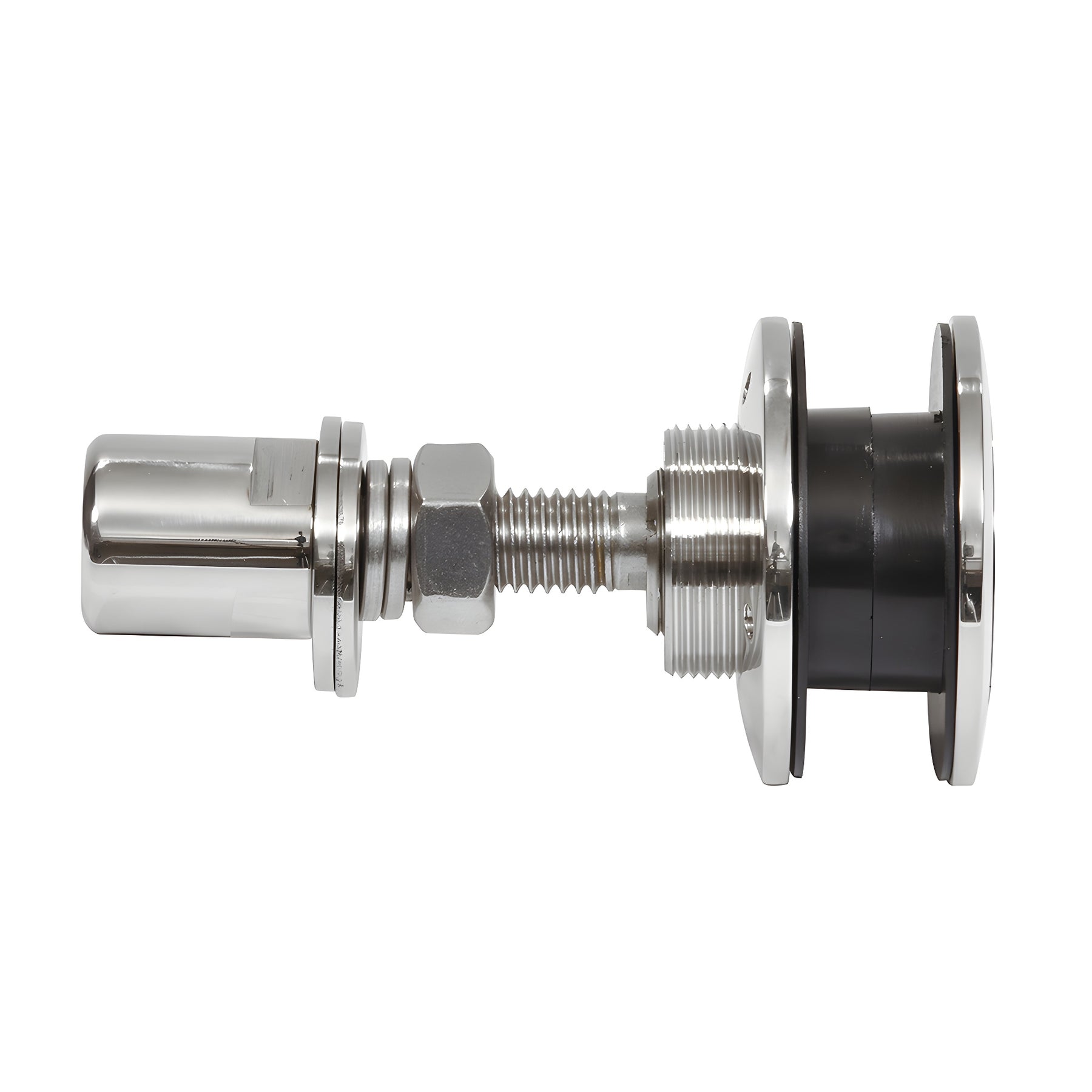

The head of the CRL Swivel Glass Attachment can tilt up to 6 degrees in any direction on its ball and socket joint. This allows for any stress applied to the glass to be more evenly distributed across the entire panel of glass rather than concentrating at the hole. These are typically used in conditions where the glass will be subject to live loads.

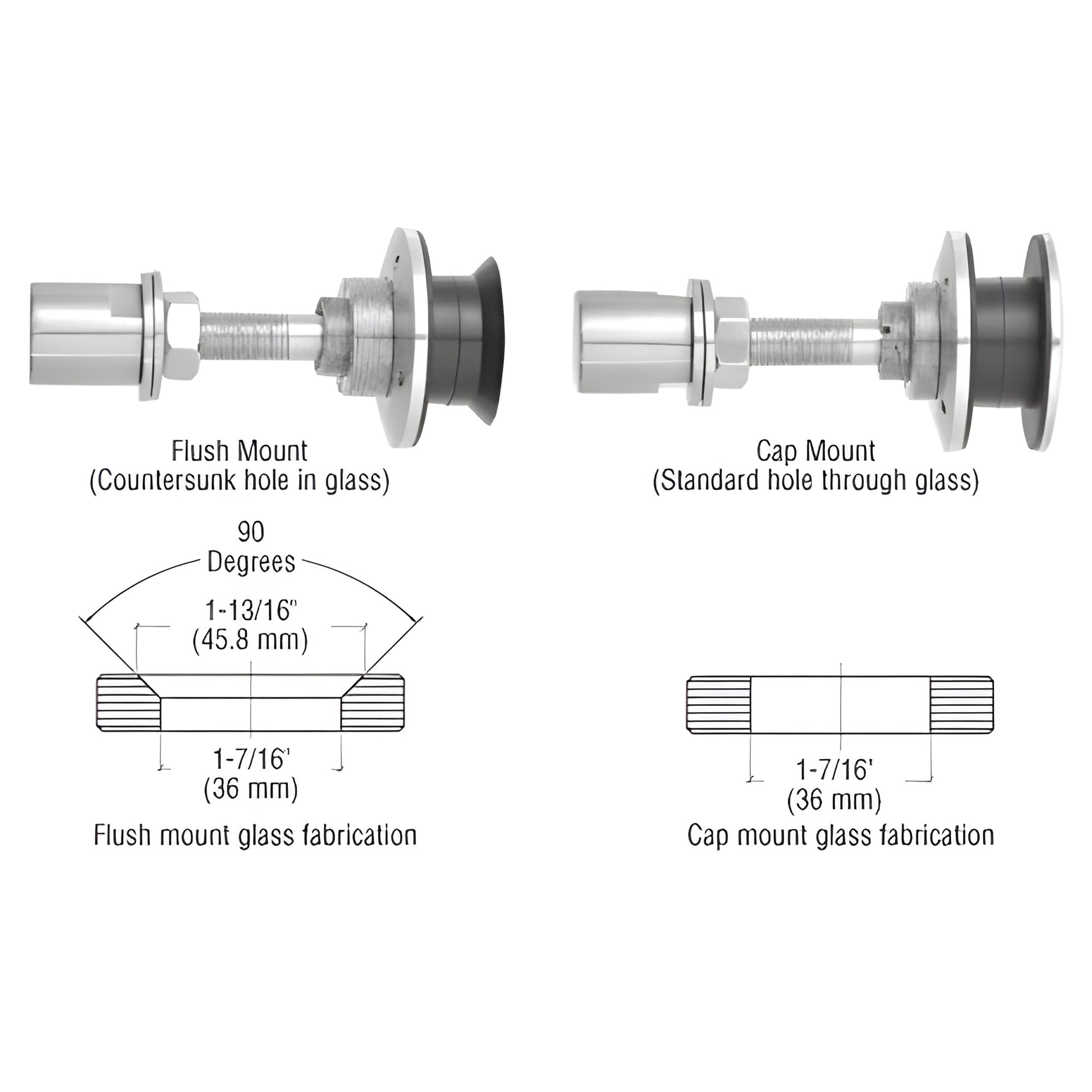

The Swivel Head Fitting also employs our special Combination Glass Attachment design so it can be used for 'flush' mounting for a smooth exterior surface when the glass is fabricated with a countersunk hole. This same Fitting can be used for the 'cap' type of mounting when using the supplied adaptor washer. This requires just a standard hole in the glass.
NOTE: We suggest when using the flush mount method that you give your glass fabricator a sample Flush Mount Glass Attachment to ensure a proper flush fit.
Product Warning:
Do Not Use With Annealed or Raw Glass
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
