CRL 316 Polished Stainless 2-3/8x1-3/4 Glass Standoff Base & Dome Cap
CRL 316 Polished Stainless 2-3/8x1-3/4 Glass Standoff Base & Dome Cap
Regular price
$128.25 CAD
Regular price
Sale price
$128.25 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RS0B2135PS
Shipping Weight: 15.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Material
316 Stainless Steel
Width
2 in. (51 mm)
Overview
- For use with 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass or 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer
- High-grade 316 stainless steel alloy standard for corrosion resistance in exterior and marine environments

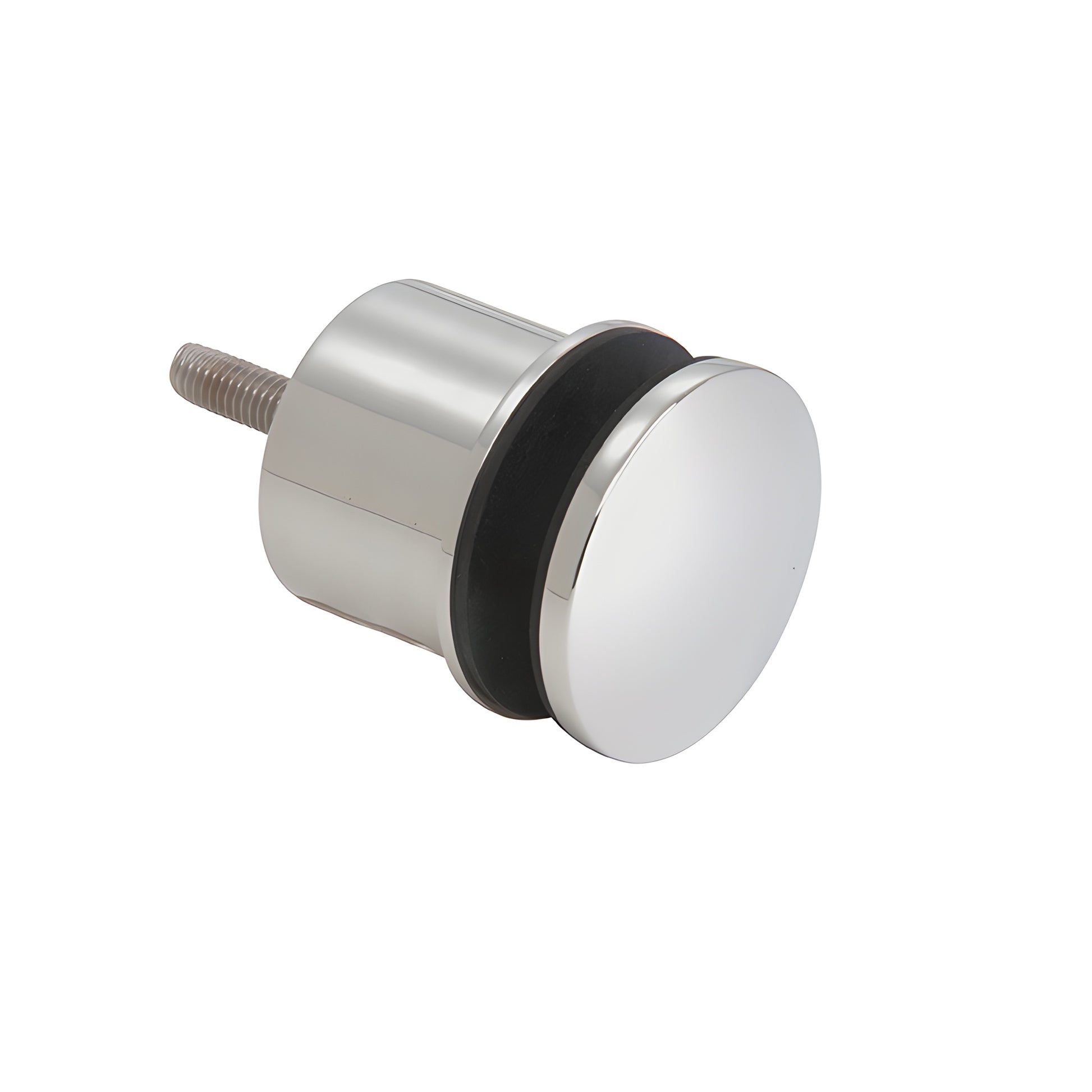

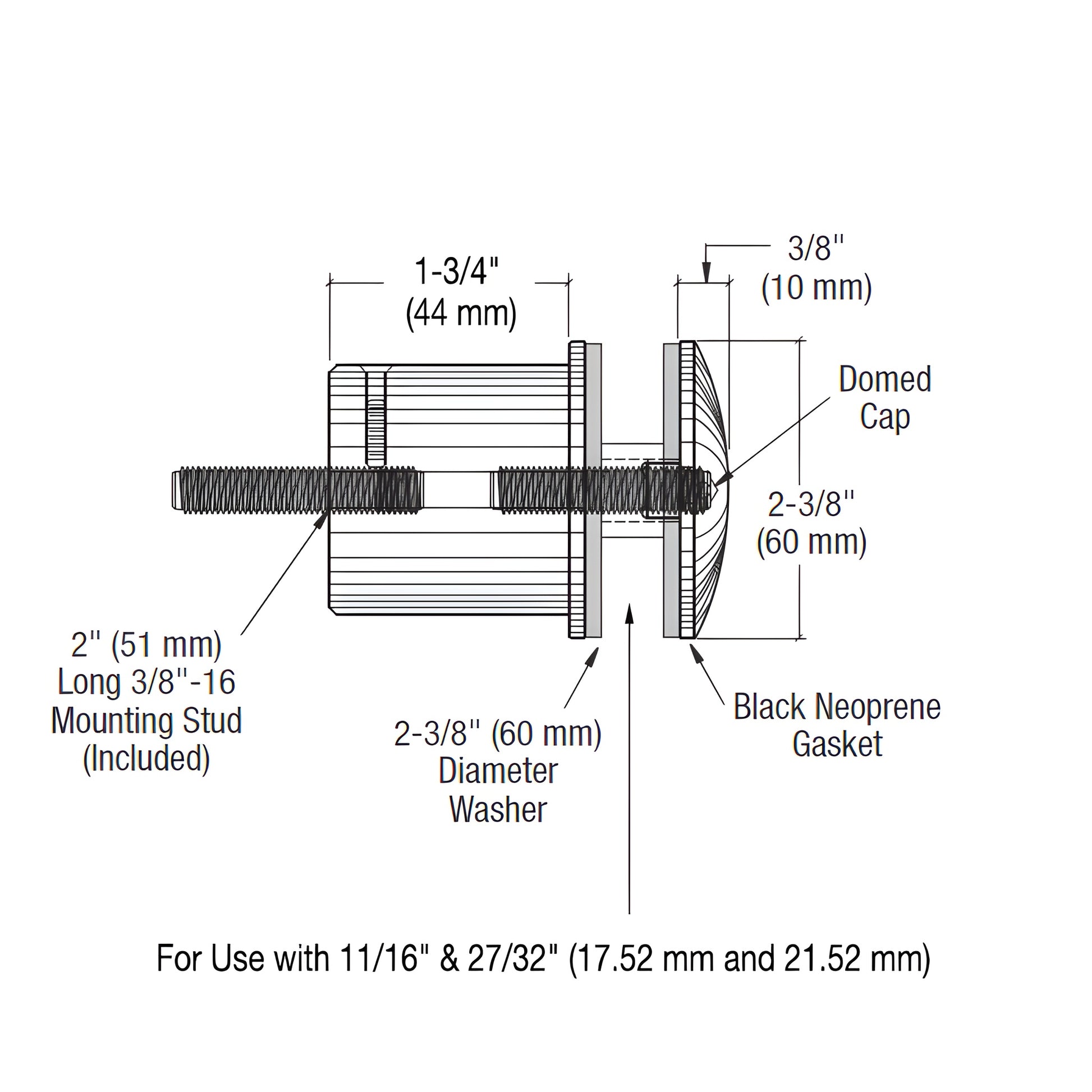

These heavy-duty Point Supported Standoffs are engineered for glass handrail and guardrail applications, providing secure point-mount support for glass panels. The standard standoff measures 2-3/8" (60 mm) diameter with a 1-3/4" (44 mm) projection from the attachment point. It includes a 3/8"-16 x 2" (51 mm) Allen stud for mounting to steel plus the required gaskets and grommet. Attachment anchors for wood and concrete are available to suit site conditions.
SPECIFICATIONS: Compatible with 1/2" or 3/4" (12 or 19 mm) monolithic tempered glass and with 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer.
GLASS FABRICATION: One 3/4" (19 mm) diameter hole per fitting.
SPACING: Maximum horizontal spacing depends on application and mounting conditions; minimum center-to-center height spacing is 4" (102 mm).
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: RS0B2135PS
Choose these 316 stainless steel glass standoffs for durable, marine-grade point-supported glass railing systems. Contact us to request custom lengths or anchoring options and to place an order.
Specifications
CAD Drawings - pdf
