Product Details
- For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
- High Grade 316 Stainless Steel Alloy Standard

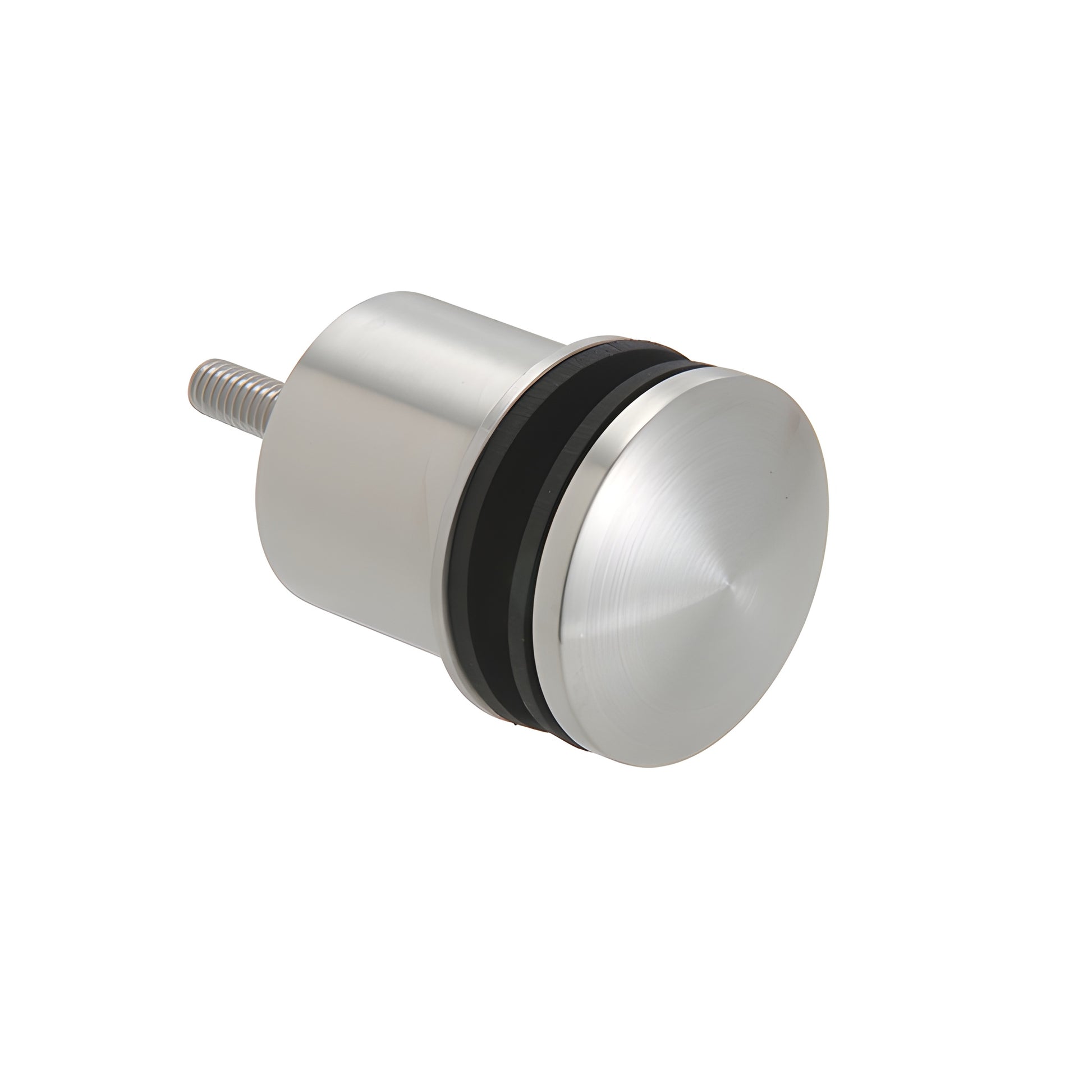

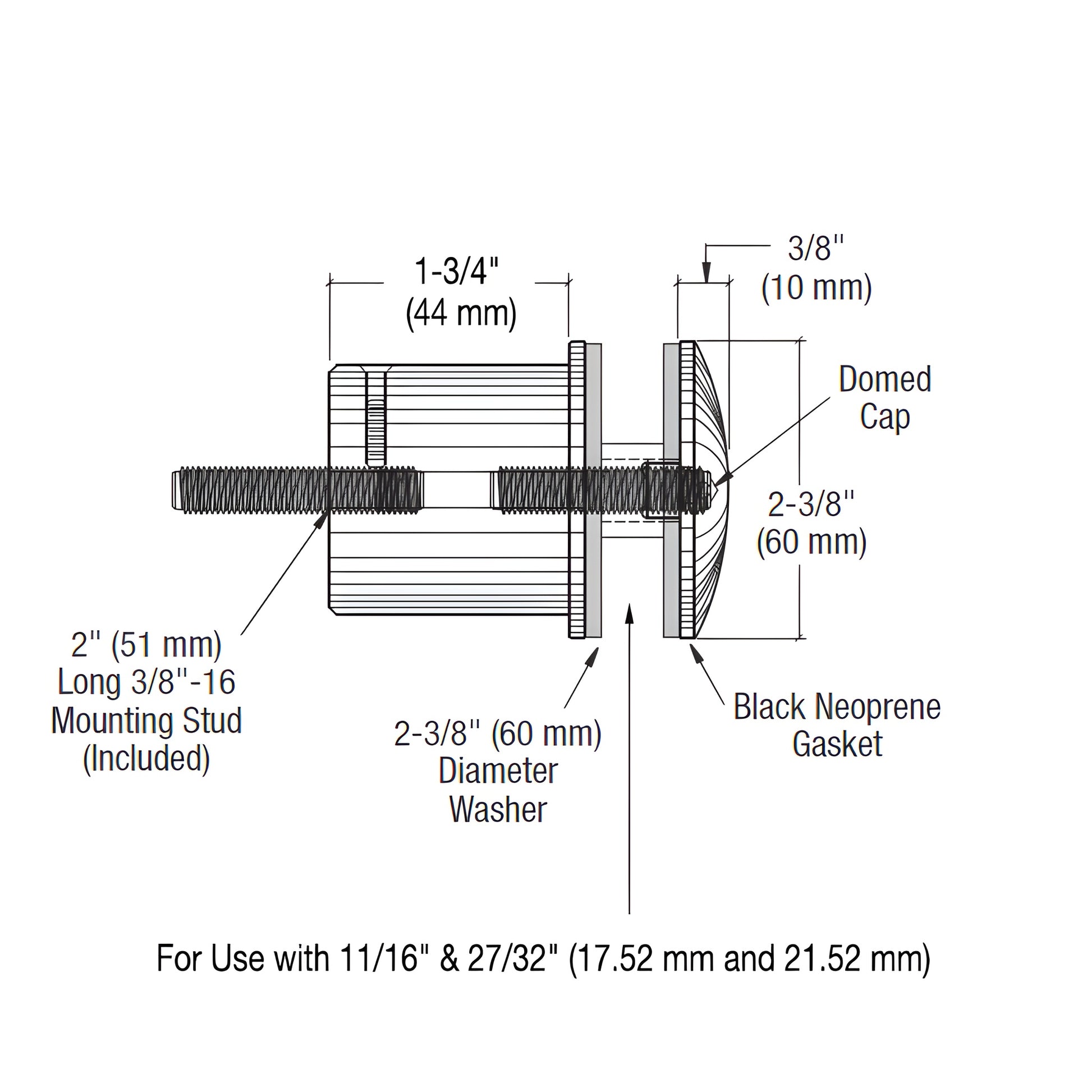

These heavy-duty Point Supported Standoffs are designed for glass Hand Rail or Guard Rail applications. The standoff fitting has a 2-3/8" (60 mm) diameter x 1-3/4" (44 mm) standard projection from the installed attachment point. Custom lengths and diameters are also available. It comes with a 3/8"-16 x 2" (51 mm) Allen Stud for mounting to steel, along with necessary gaskets and grommet. Attachment anchors for wood and concrete are also available.
SPECIFICATIONS: For use with 1/2" or 3/4" (12 or 19 mm) Monolithic Tempered Glass. Also for use with 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass using Kuraray SentryGlas® Interlayer.
GLASS FABRICATION: One 3/4" (19 mm) Diameter Hole Per Fitting.
SPACING: Maximum horizontal spacing between fittings depends on its use and mounting conditions. The minimum height spacing is 4" (102 mm) center-to-center.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
