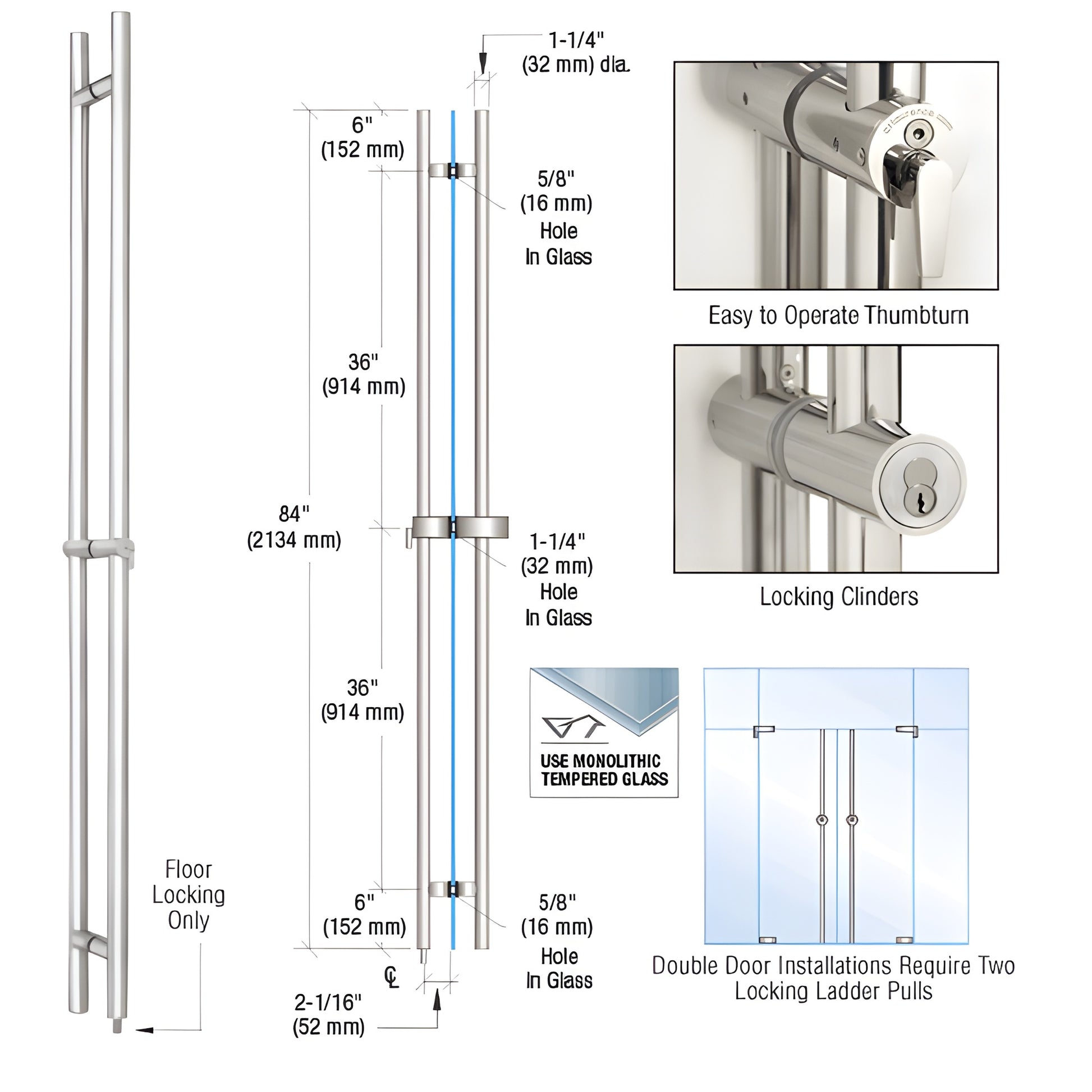

CRL 316 Polished Stainless 84 in Locking Ladder Door Pull

• A.D.A. compatible thumbturn at a comfortable 42" (1.07 m) above finished floor
• Fully concealed deadbolt — locks into the floor only for secure glass-door installations
• Designed for 1/2" to 3/4" (12 to 19 mm) tempered glass
• Adaptor kits available for 1-3/4" (45 mm) thick doors — LLPA134ADT
• 1-1/4" (32 mm) diameter alloy tubing in 316 brushed or polished stainless steel
• Custom sizes ship within one to two weeks
• A.D.A. compliant models available — Ask for a Quote Here

Our CRL LLPA Locking Ladder Pulls (SKU: LLPA84PS) feature a fully concealed deadbolt locking mechanism for secure, low-profile locking on glass doors. Operate the lock easily with the keyed cylinder or the A.D.A. compatible thumbturn—no bending required. Ideal for locking into the floor only, these locking ladder pulls are made for 1/2" to 3/4" tempered glass and are offered in brushed or polished 316 stainless steel finishes.

This locking ladder pull is supplied with a standard 7-pin rim cylinder with interchangeable core so you can re-key, replace, or use a different core as needed. A selection of 7-pin cores is available. If you require proprietary 6-pin cylinders, remove the provided rim cylinder and install your preferred rim cylinder — the pull accepts most standard rim-type cylinders.

NOTE: Glass fabrication is required. Push/pull indicators in complementary finishes and dustproof keepers are sold separately.

Product Warning:
The Medico cylinder will not work with standard LLPA Series ladder pulls. The pivot pin and cylinder spacer must be special ordered and modified by CRL.

Stainless Steel Advisory:
