CRL 316 Stainless Steel 84" Brushed Locking Ladder Pull Handle

• A.D.A. compatible thumbturn
• Locks into the floor only — floor-mounted deadbolt
• Fits 1/2" to 3/4" (12 to 19 mm) tempered glass
• Adaptor kits available for 1-3/4" (45 mm) thick doors — LLPA134ADT
• Operates at a comfortable 42" (1.07 m) above the finished floor
• 1-1/4" (32 mm) diameter alloy tube in 316 brushed or polished stainless steel
• Custom sizes ship within one to two weeks
• A.D.A. compliant models available — Ask for a quote here

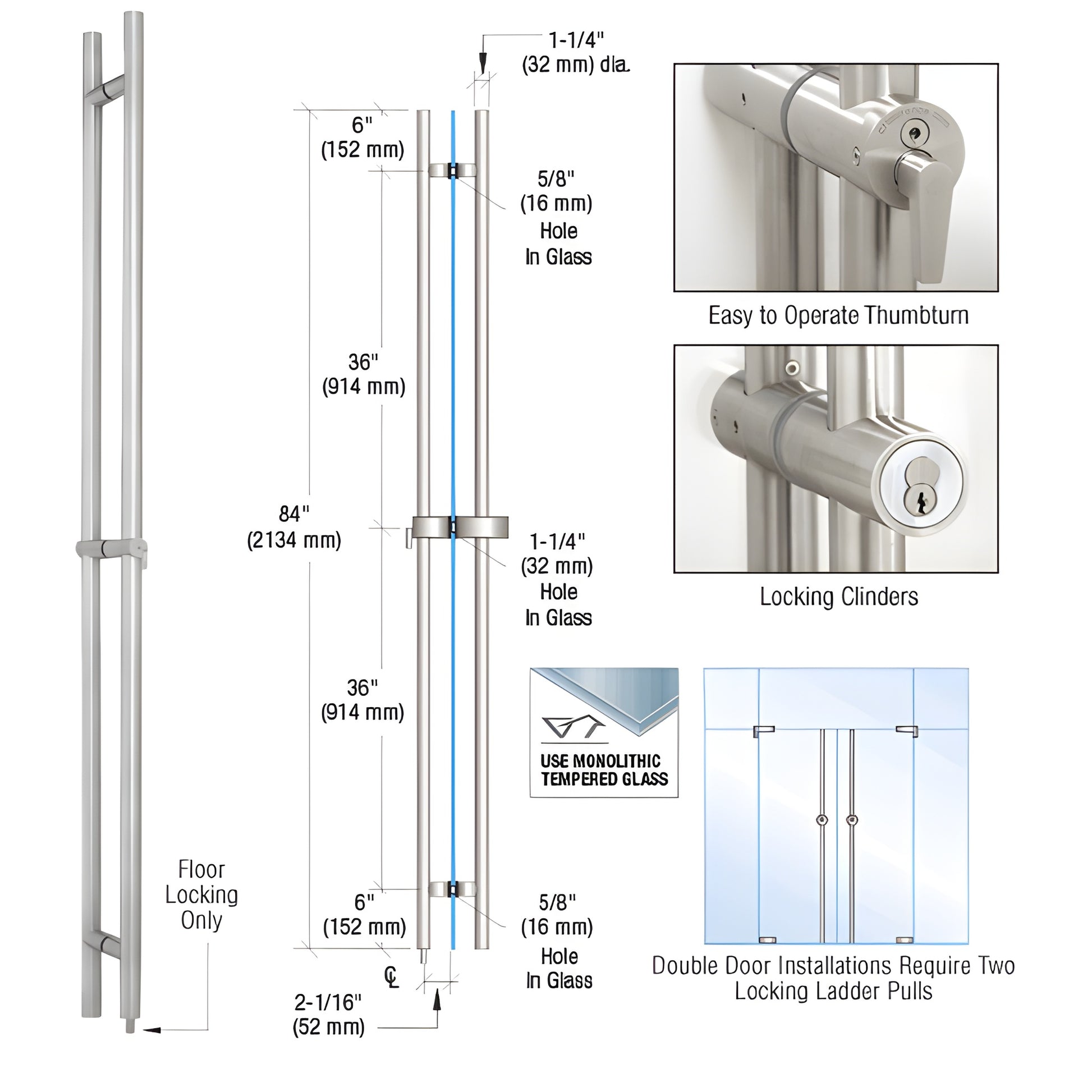

CRL LLPA Locking Ladder Pulls (SKU: LLPA84BS) feature a fully concealed deadbolt locking mechanism designed for glass doors. Operate the lock without bending — use the key or A.D.A. compatible thumbturn mounted at a convenient height. Ideal long-tail keyword: locking ladder pull for glass doors with floor-mounted deadbolt.

Designed for 1/2" to 3/4" (12 to 19 mm) tempered glass, these locking ladder pulls secure into the floor only and are offered in brushed or polished 316 stainless steel finishes.

This unit ships with a standard 7-pin rim cylinder with interchangeable core. Use the supplied core as-is, remove it for re-keying, or replace it with another standard rim-type cylinder. Proprietary 6-pin cylinders can be installed by removing the supplied rim cylinder and fitting your preferred rim cylinder.

NOTE: Glass fabrication is required. Push/pull indicators in complementary finishes and dustproof keepers are sold separately.

Product Warning: The Medico cylinder will not work with standard LLPA Series ladder pulls. The pivot pin and cylinder spacer must be special ordered and modified by CRL.

Stainless Steel Advisory:

For pricing, custom sizes, or A.D.A. compliant options, contact CRL to request a quote or technical assistance.
