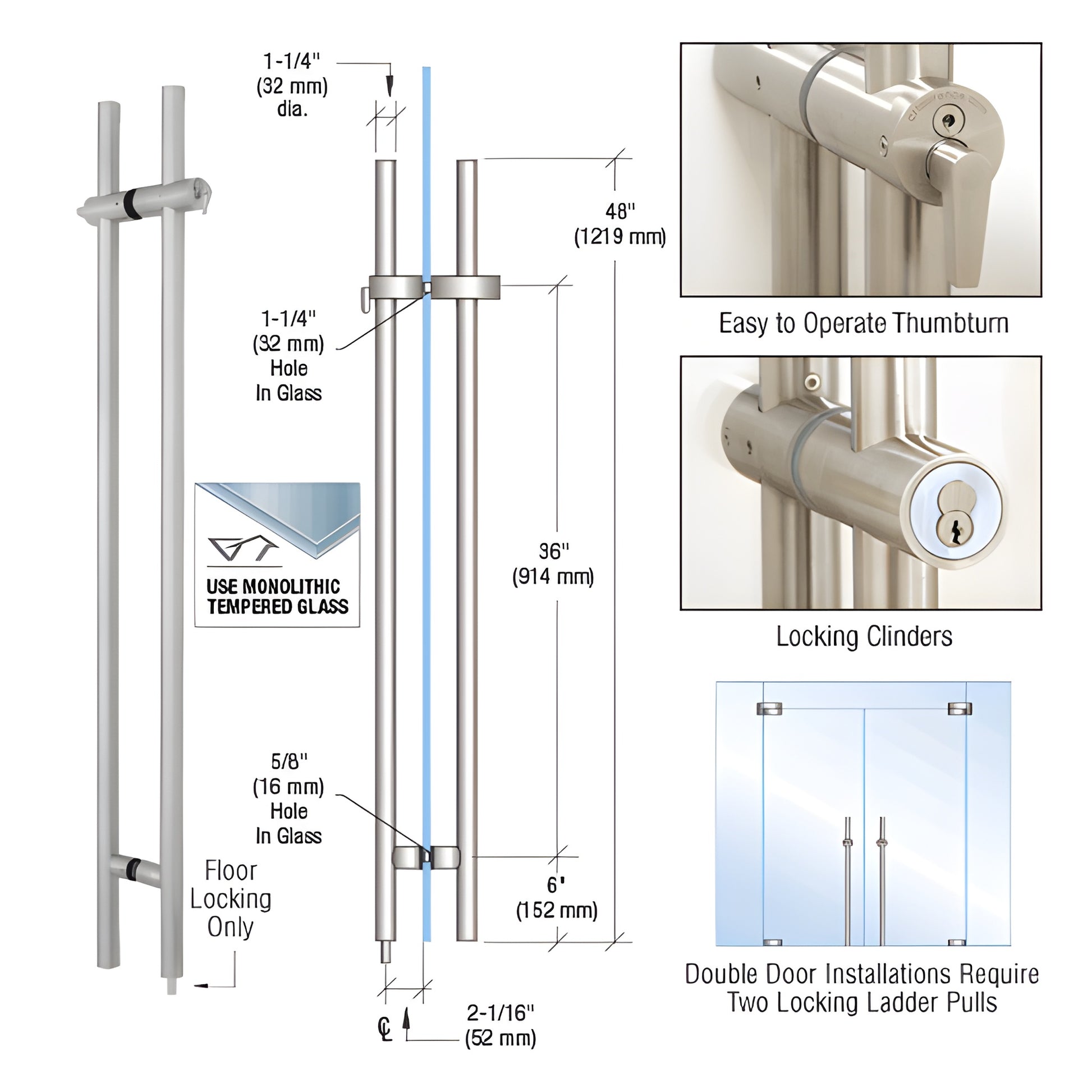

CRL 316 Brushed Stainless Steel 48 in Locking Ladder Door Pull

• A.D.A. compatible thumbturn for easy reach
• Locks into the floor only
• Designed for 1/2" to 3/4" (12 to 19 mm) tempered glass
• Adaptor kits available for 1-3/4" (45 mm) thick doors - LLPA134ADT
• Lock operates at a comfortable 42" (1.07 m) above the finished floor
• 1-1/4" (32 mm) diameter alloy—available in 316 brushed or polished stainless steel tubing
• Custom sizes ship within one to two weeks
• A.D.A. compliant models available - Ask for a Quote Here

Our CRL LLPA Locking Ladder Pulls (SKU: LLPA48BS) feature a fully concealed deadbolt mechanism so you can lock or unlock glass doors without bending—turn the key or ADA thumbturn at a comfortable height. Ideal as a locking ladder pull for glass storefronts, office doors, and commercial glass entrances, these pulls are supplied for 1/2"–3/4" tempered glass and secure into the floor only. Finishes offered: brushed and polished stainless steel (316 option available).

This Locking Ladder Pull ships with a standard 7-pin rim cylinder with interchangeable core—use it as supplied, remove the core for rekeying, or replace with a new 7-pin core. If a proprietary 6-pin cylinder is required, remove the supplied rim cylinder and install your preferred rim cylinder. The LLPA accepts most standard rim-type cylinders.

NOTE: Glass fabrication is required. Push/pull indicators in complementary finishes and dustproof keepers are sold separately.

Product Warning:

The Medico cylinder will not work with standard LLPA Series ladder pulls. The pivot pin and cylinder spacer must be special ordered and modified by CRL.

Stainless Steel Advisory:

For pricing, availability, or a quote for ADA-compliant or custom LLPA
