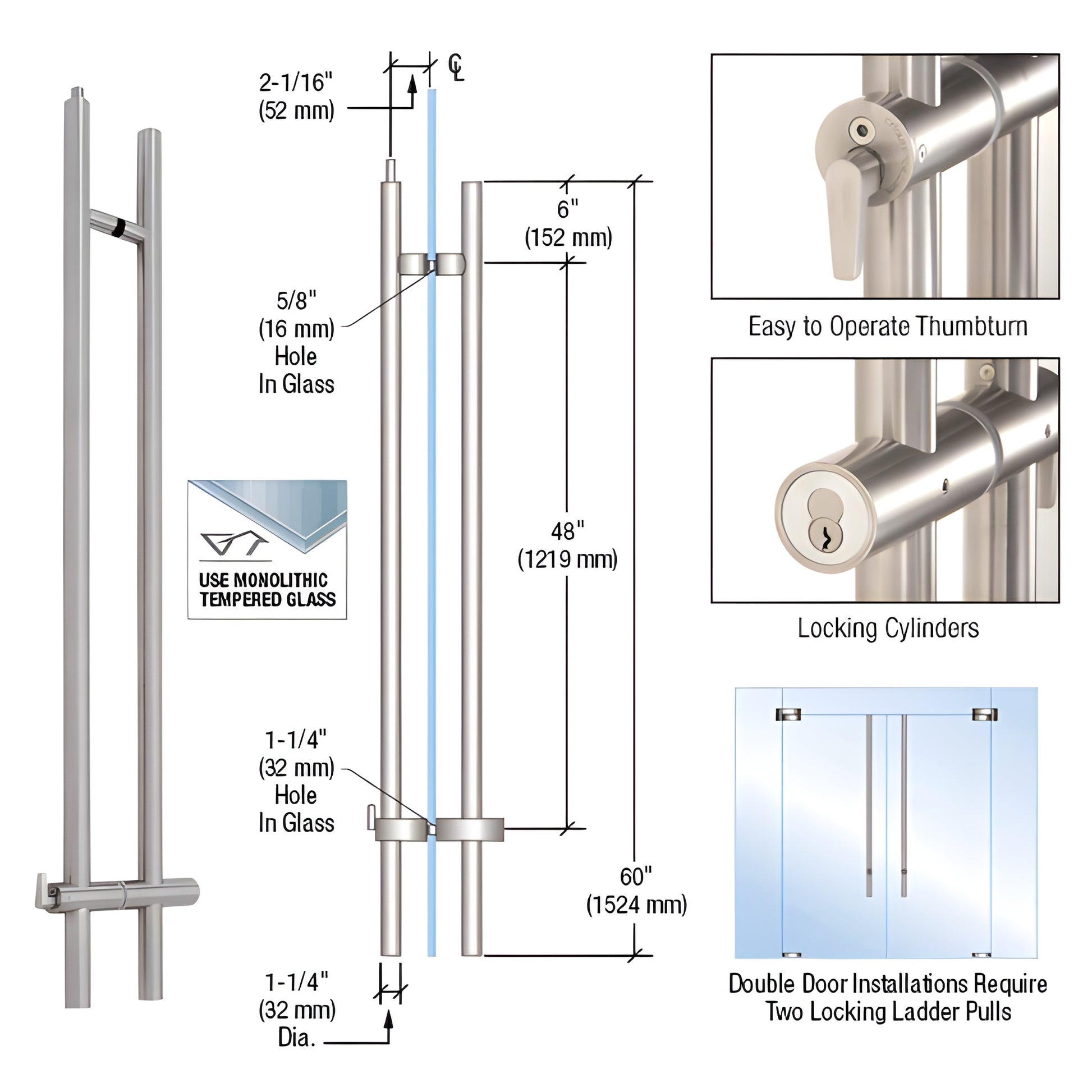

CRL 316 Brushed Stainless Steel 60" Upward-Locking Ladder Door Pull
CRL 316 Brushed Stainless Steel 60" Upward-Locking Ladder Door Pull
Regular price
$2,109.20 CAD
Regular price
Sale price
$2,109.20 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LLPUA60BS
Shipping Weight: 14.109 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.109 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adaptor For 1 3/4 Inch Thick Doors
LLPA134ADT
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Material
316 Stainless Steel
Mounting Points
2
Mounting Type
Back-to-Back
Overall Length
60 in. (1524 mm)
Overview
- Locks into the ceiling only — no floor hardware required
- A.D.A. compatible thumbturn positioned at a comfortable 42" (1.07 m) above the finished floor
- Adaptor kits available for use on 1-3/4" (45 mm) thick doors — LLPA134ADT
- Intended for 1/2" to 3/4" (12–19 mm) tempered glass doors
- 1-1/4" (32 mm) diameter alloy tubing in 316 Brushed or Polished Stainless Steel
- Custom sizes ship within one to two weeks
- A.D.A. compliant models available — request a quote
SKU: LLPUA60BS
CRL LLPUA Series Upward Locking Ladder Pulls feature a fully concealed deadbolt that locks into the ceiling for upward locking operation. Designed for glass doors, these upward locking ladder pulls eliminate bending or reaching — operate with a key or ADA thumbturn at a convenient height. Available in brushed or polished 316 stainless steel for corrosion resistance and a premium finish.
This upward locking ladder pull ships with a standard 7‑pin rim cylinder with an interchangeable core (IC) that can be rekeyed or replaced. The pull accepts most standard rim‑type cylinders; proprietary 6‑pin cylinders may be installed by replacing the supplied rim cylinder. A selection of 7‑pin cores is available.
Note: Glass fabrication is required. Push/pull indicators and dustproof keepers are sold separately.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain‑proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Discover the secure, ergonomic solution for glass doors — contact CRL for pricing and to place an order.
Specifications
CAD Drawings - dwg
