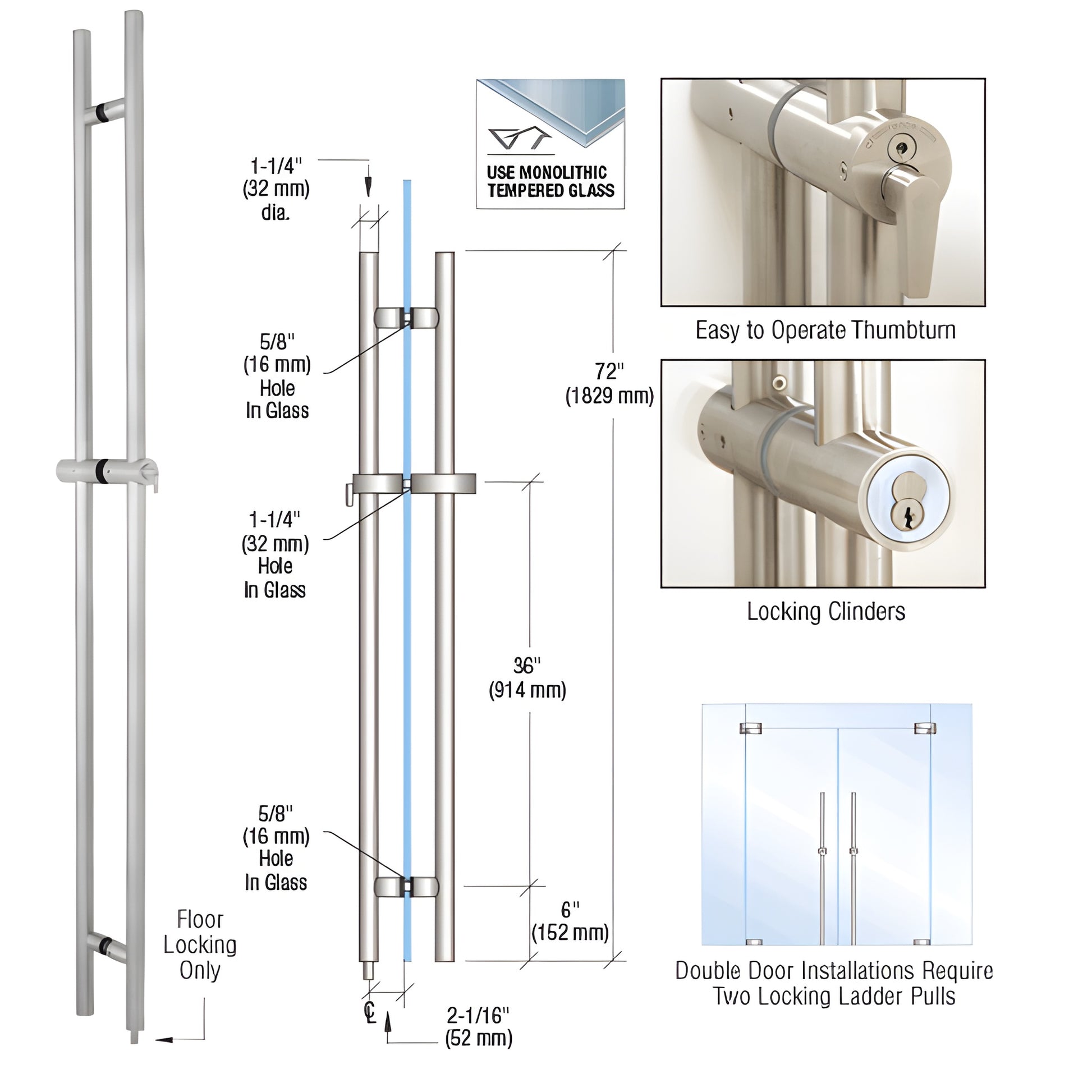

CRL 72 in 316 Brushed Stainless Steel Locking Ladder Door Pull

• A.D.A. compatible thumbturn for easy operation
• Locks into the floor only (deadbolt concealed)
• Designed for 1/2" to 3/4" (12 to 19 mm) tempered glass doors
• Adaptor kits available for 1-3/4" (45 mm) thick doors
• Operates at a comfortable 42" (1.07 m) above the finished floor
• 1-1/4" (32 mm) diameter alloy ladder pull tubing in 316 brushed or polished stainless steel
• Custom sizes ship within one to two weeks
• A.D.A. compliant models available — ask for a quote here

Our CRL LLPA Locking Ladder Pulls (SKU: LLPA72BS) feature a fully concealed deadbolt for a clean look and secure locking. These locking ladder pulls are made for glass doors 1/2" to 3/4" (12–19 mm) thick and lock into the floor only. The thumbturn or key operates at an ergonomic height so users don’t need to bend—ideal for accessible glass door hardware and commercial storefronts. Available finishes: 316 brushed stainless steel and 316 polished stainless steel.

This ladder pull ships with a standard 7-pin rim cylinder with interchangeable core (IC). Use it as supplied, remove the core for re-keying, or replace the core. A selection of 7-pin cores is available. If you require a proprietary 6-pin cylinder, remove the supplied rim cylinder and replace it with your specified rim cylinder. This product accepts most standard rim-type cylinders.

NOTE: Glass fabrication is required. Push/pull indicators and dustproof keepers in complementary finishes are sold separately.

Product Warning:
The Medico cylinder will not work with standard LLPA Series ladder pulls. The pivot pin and cylinder spacer must be special ordered and modified by CRL.

Stainless Steel Advisory:
