Product Details
- Compact Design with Base, Cap, and Mounting Stud
- For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
- High Grade Alloy 316 Stainless Steel Standard
- For Mounting to Steel, Concrete, or Wood Substrate

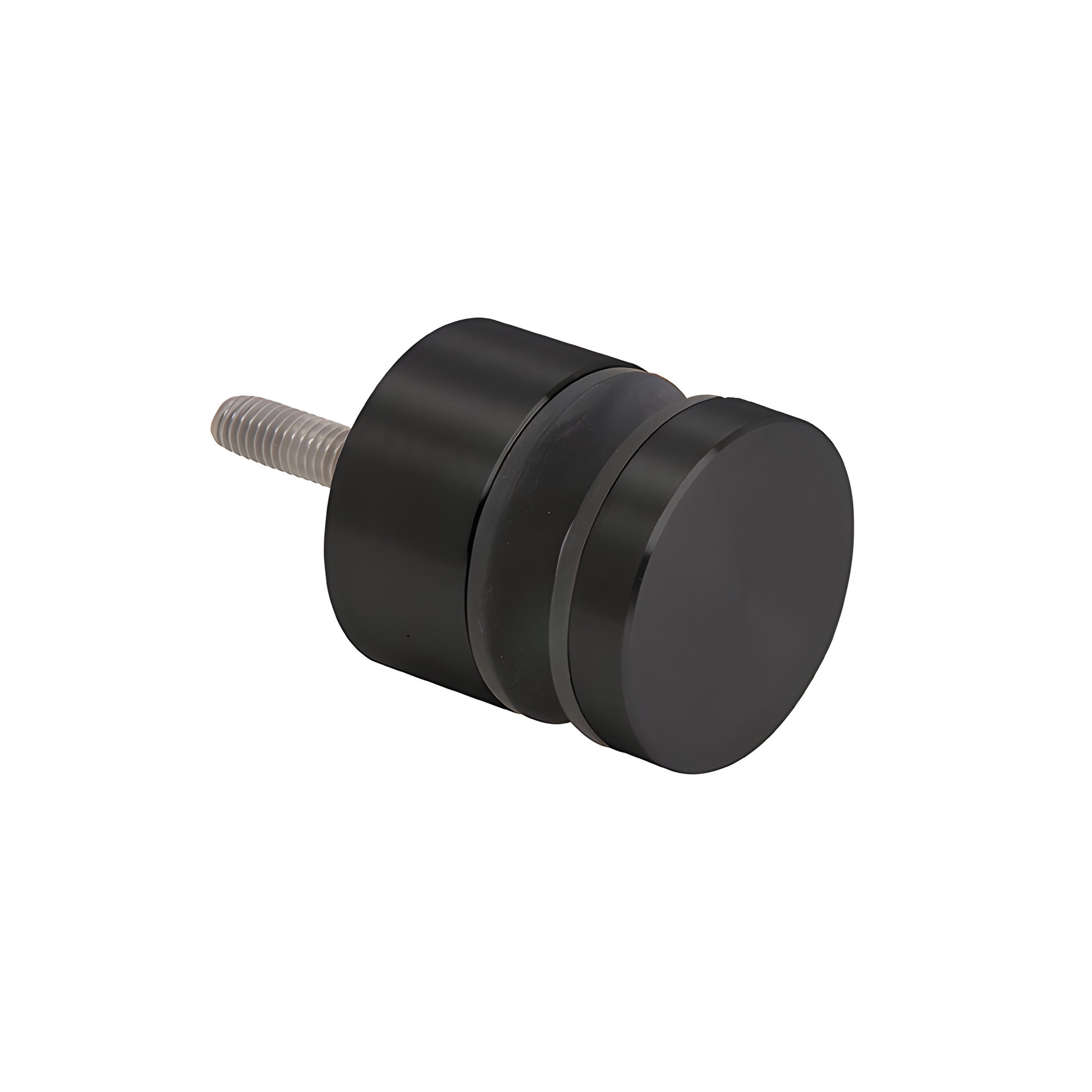

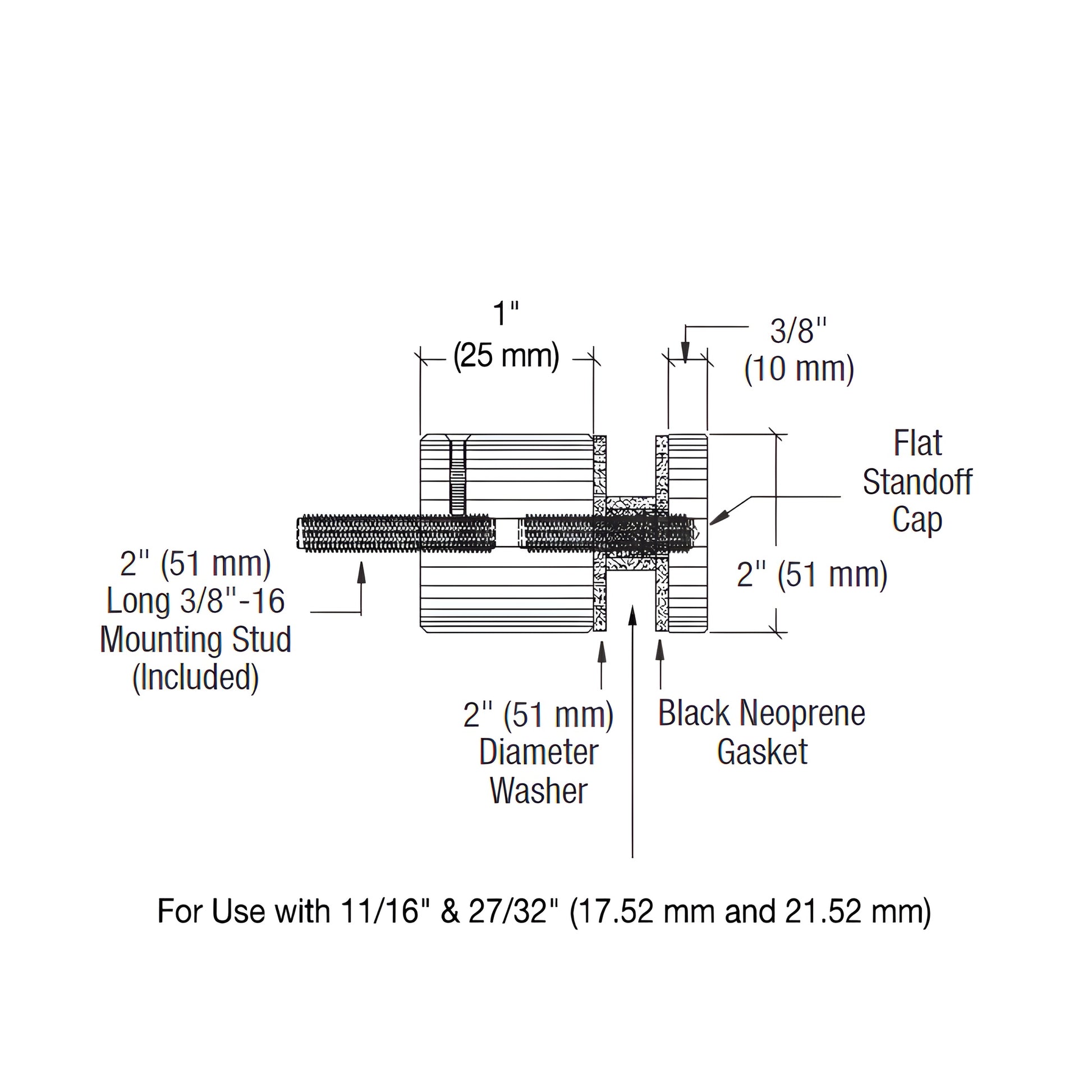

The heavy-duty CRL Glass Rail Standoff Base and Cap works with hand or guard railings. Fabricated with Alloy 316 grade stainless steel in brushed or polished finishes, the standoff fitting is 2" (51 mm) in diameter with a 1" (25.4 mm) base. It comes with a 3/8"-16 x 2" Allen stud for mounting to steel, along with necessary gaskets and grommet. Use our Cat. No. SSW12 Spanner Wrench to tighten the cap.
NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions. A 3/4" hole is needed for glass fabrication details.
Product Warning:
For use with 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass.
