CRL Brushed 316 Stainless Steel Glass Standoff Base & Cap - 1" Proj
CRL Brushed 316 Stainless Steel Glass Standoff Base & Cap - 1" Proj
Regular price
$113.60 CAD
Regular price
Sale price
$113.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RS0B21BS
Shipping Weight: 1.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Material
316 Stainless Steel
Width
2 in. (51 mm)
Overview
- Compact design: Base, cap, and mounting stud
- Fits 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass; also fits 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer
- High-grade Alloy 316 stainless steel construction
- For mounting to steel, concrete, or wood substrate

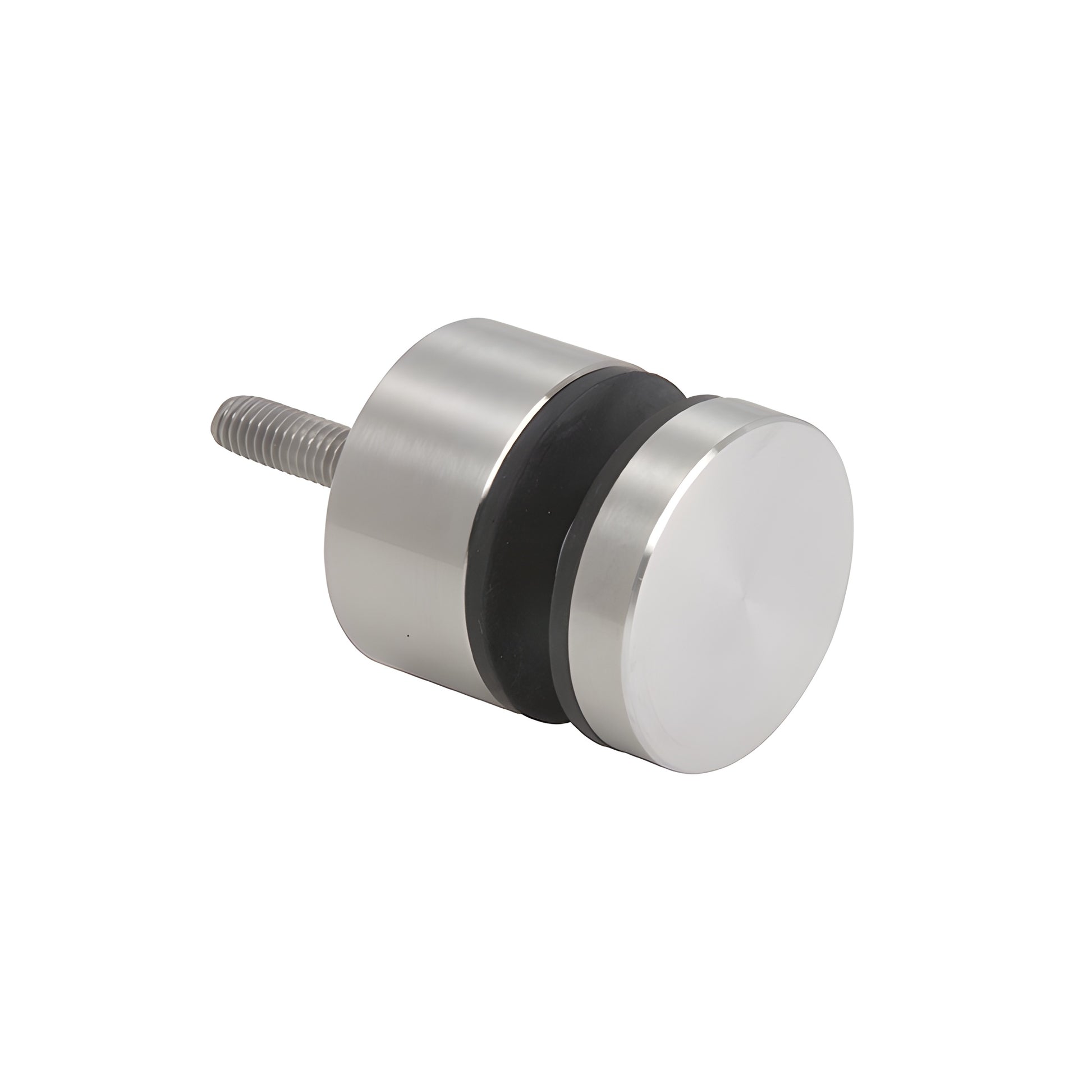

The heavy-duty CRL Glass Rail Standoff Base and Cap (SKU: RS0B21BS) is a precision standoff fitting for hand and guard rail systems. Made from Alloy 316 stainless steel with brushed or polished finish options, the fitting features a 2" (51 mm) diameter cap and a 1" (25.4 mm) base. Includes a 3/8"-16 x 2" Allen stud for steel mounting plus gaskets and grommet. Use Cat. No. SSW12 Spanner Wrench to tighten the cap. This 316 stainless steel standoff fitting is ideal for exterior and interior glass railing applications where corrosion resistance is required.
NOTE: Bracket spacing and maximum glass panel widths vary by application and mounting conditions. Glass fabrication requires a 3/4" hole.
Product Warning:
For use with 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care and maintenance details.
Order the RS0B21BS Glass Rail Standoff Base and Cap for durable 316 stainless steel glass railing hardware—contact us to purchase or for technical support.
Specifications

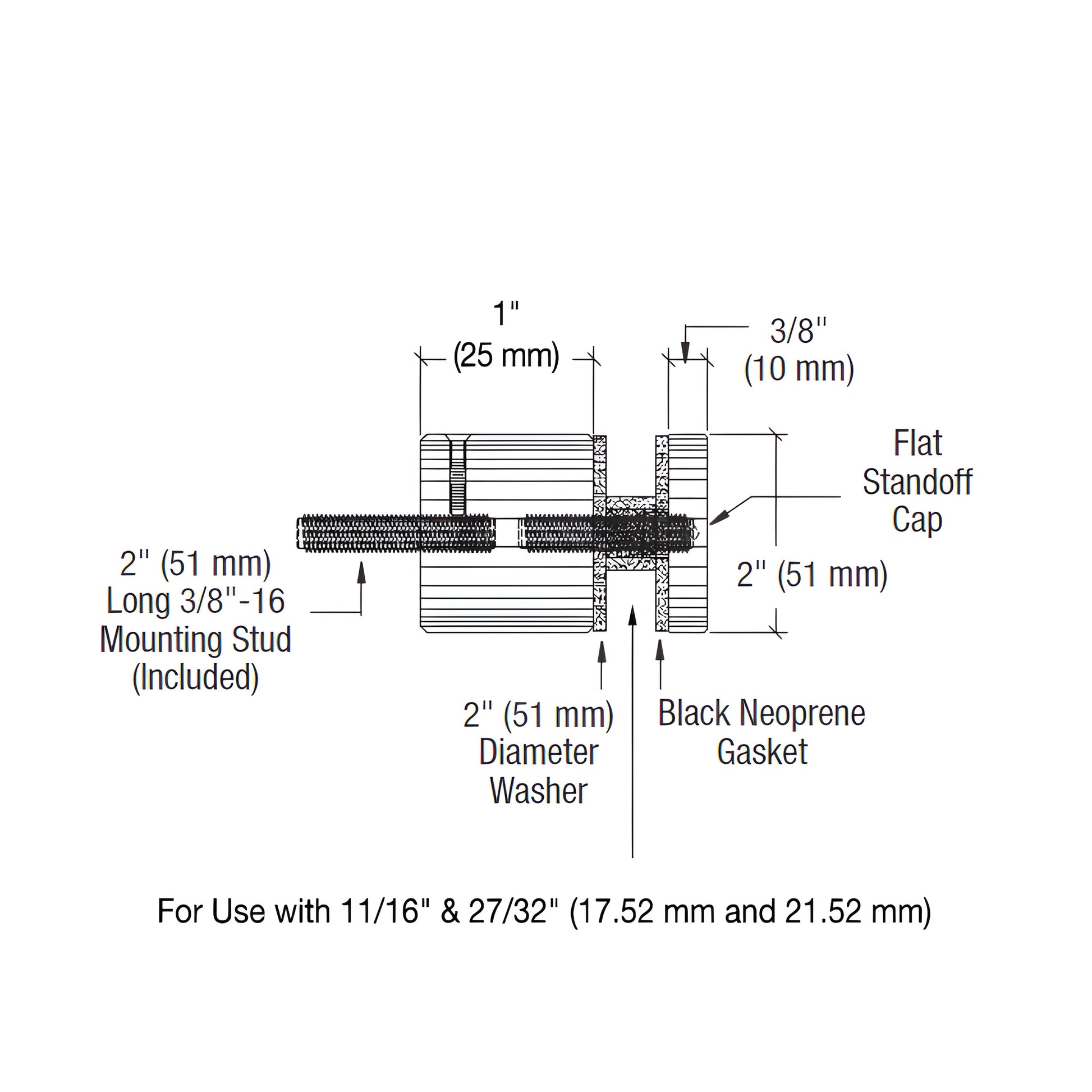

CAD Drawings - dwg
