Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before you complete your order, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor and video card settings.
CRL
CRL 36 in Glass Railing Post – Rigid Glazing Vinyl Sleeve
CRL 36 in Glass Railing Post – Rigid Glazing Vinyl Sleeve
Regular price
$7.92 CAD
Regular price
Sale price
$7.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GV36BL
Shipping Weight: 2.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black
Glazing Thickness
1/4 in. & 3/8 in. (6 mm & 10 mm)
Height
3/4 in. (19 mm)
Length
36 in. (914 mm)
Material
Vinyl
Width
7/16 in. (Bottom) , 5/8 in. (Top) (11 mm (Bottom) , 16 mm (Top))
Overview
- Designed to accommodate 1/4" to 3/8" (6 to 10 mm) tempered glazing
- Black rigid push-in glazing vinyl for use with aluminum windscreen posts and bottom rails

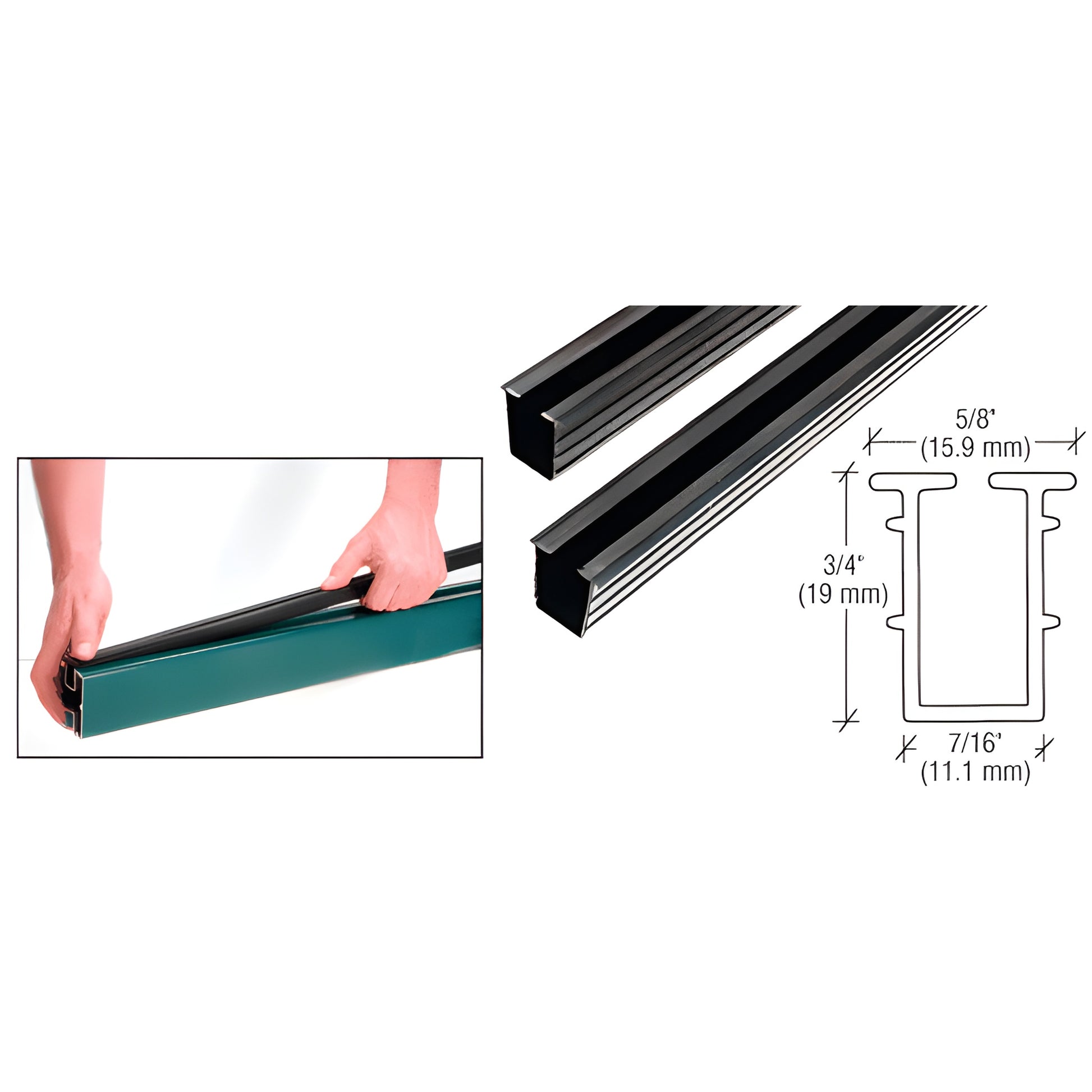

CRL AWS Rigid Glazing Vinyl — SKU GV36BL is a black, rigid push-in vinyl gasket engineered to dry-glaze 1/4" to 3/8" (6 to 10 mm) tempered glass into CRL AWS windscreen system posts and bottom rails. Available in five lengths, the vinyl has an overall width of 5/8" (16 mm), making it an exact-fit glazing solution for aluminum windscreen posts and bottom rails. Its push-in design simplifies installation compared with wet-glaze alternatives and is optimized for tempered glass windscreen assemblies.
Features: rigid push-in profile, fits 6–10 mm tempered glazing, 5/8" (16 mm) overall width, black finish for aluminum windscreen systems.
Order GV36BL today for a reliable, dry-glaze solution for aluminum windscreen posts and bottom rails.
Specifications
CAD Drawings - pdf
