CRL 60 in Rigid Vinyl Glazing Post for Glass Railing
CRL 60 in Rigid Vinyl Glazing Post for Glass Railing
Regular price
$11.88 CAD
Regular price
Sale price
$11.88 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GV60BL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black
Glazing Thickness
1/4 in. & 3/8 in. (6 mm & 10 mm)
Height
3/4 in. (19 mm)
Length
60 in. (1524 mm)
Material
Vinyl
Width
7/16 in. (Bottom) , 5/8 in. (Top) (11 mm (Bottom) , 16 mm (Top))
Overview
- Designed to accommodate 1/4" to 3/8" (6 to 10 mm) tempered glazing
- Black rigid push-in glazing vinyl for use with aluminum windscreen posts and bottom rails

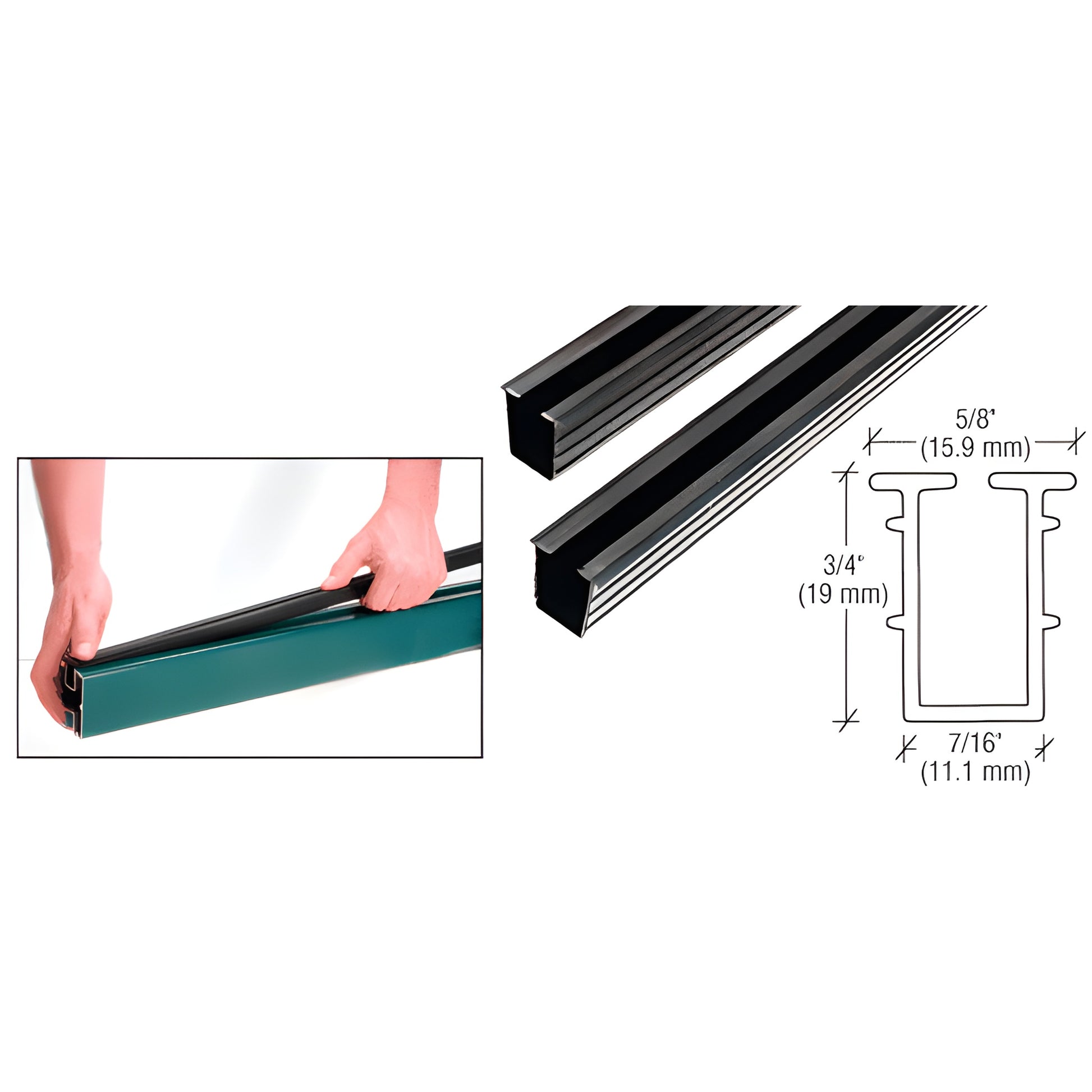

CRL AWS Rigid Glazing Vinyl (SKU: GV60BL) is a black, rigid push-in glazing seal used to dry-glaze 1/4" to 3/8" (6 to 10 mm) tempered glass into CRL AWS windscreen system posts and bottom rails. The vinyl has an overall width of 5/8" (16 mm) and is available in five lengths to fit a variety of aluminum windscreen post and bottom rail applications. This product is ideal for secure, weather-resistant glazing in commercial and residential windscreens where a rigid vinyl gasket is required.
Specifications
CAD Drawings - pdf
