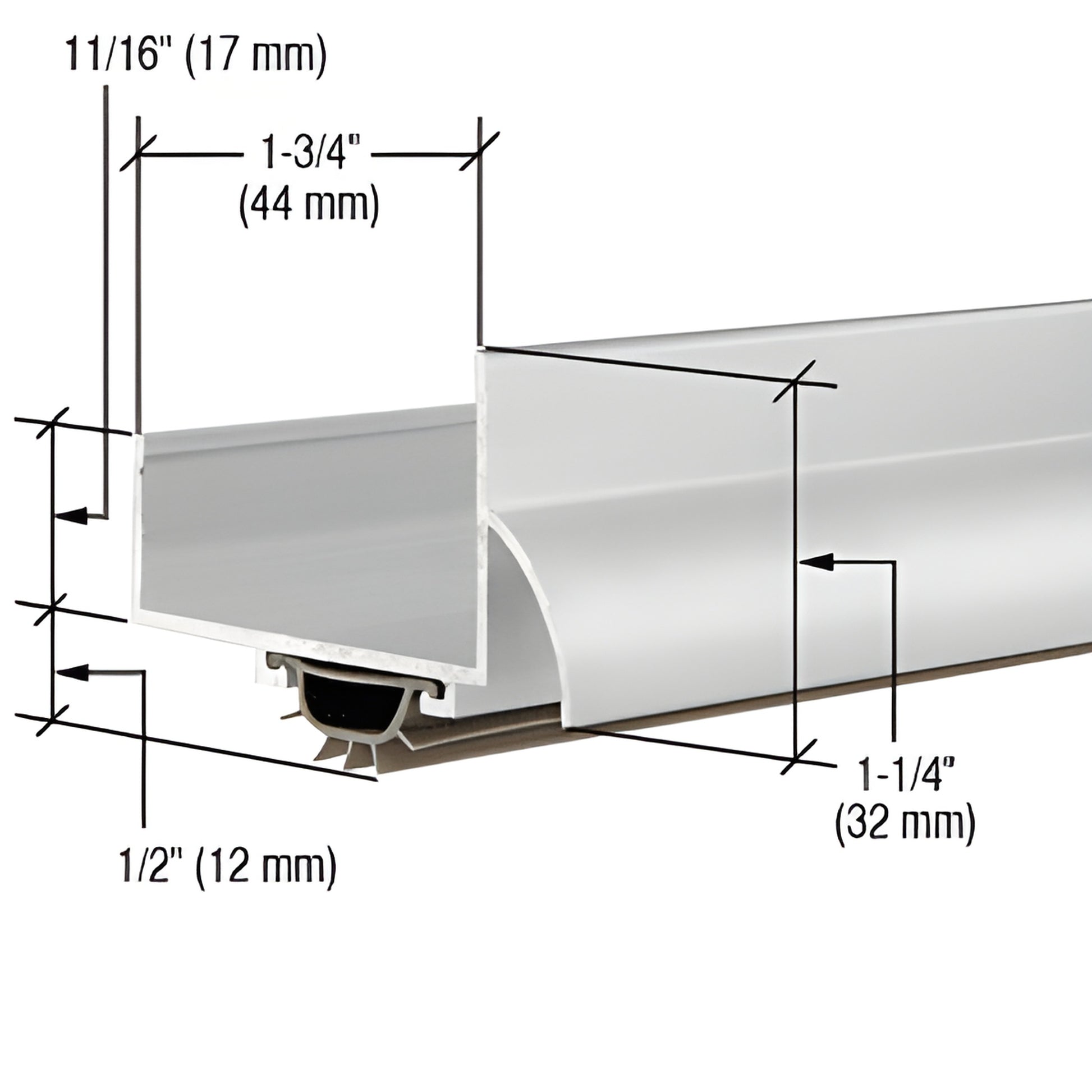

• CRL aluminum U-shaped door bottom with vinyl seal, 47" long for 1-3/4" doors (SKU 17VRA48)
1 1

CRL

CRL 48 in Aluminum U-Shaped Door Bottom Seal - Door Sweep

CRL 48 in Aluminum U-Shaped Door Bottom Seal - Door Sweep

$64.92 CAD
$64.92 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 17VRA48
Shipping Weight: 1.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Bottoms
Yes
Finish/Color
Aluminum
Front Face Height
1-1/4 in. (31.8 mm)
Full Height
1/2 in. (12.7 mm)
Height
1-1/4 in. (31.8 mm)
Length
47 in. (1193.8 mm)
Vinyl Height
1/2 in. (12.7 mm)
Width
1-3/4 in. (44.5 mm)
With Full Notch
No

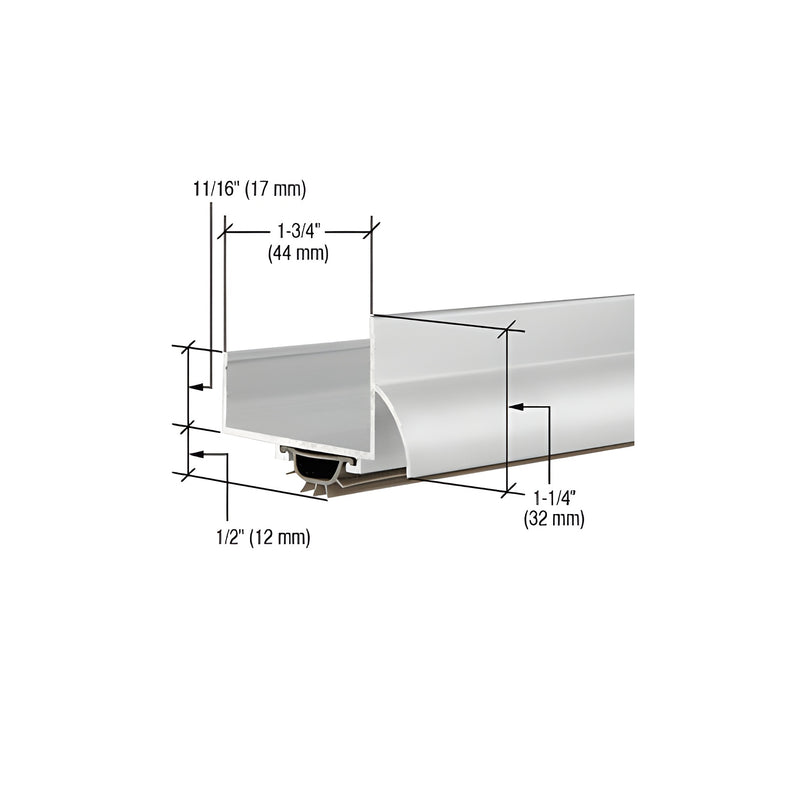

Overview

  • For 1-3/4" (44 mm) Doors
  • Aluminum Drip Cap Diverts Rain from the Door
  • Vinyl Seal Keeps Out Weather

This CRL U-Shaped Door Bottom (SKU: 17VRA48) combines an aluminum drip cap and a flexible vinyl insert to block drafts, rain, and debris. Designed for 1-3/4" (44 mm) doors, it installs easily on exterior and interior doors and is compatible with saddle thresholds.


Models with a 1/2" (12.7 mm) wide full-notch fabrication are available to avoid interference with door stops and weatherstrips. Slots are pre-drilled to accept the supplied #6 x 1/2" pan head screws for straightforward installation.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs and complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor color adjustment.


Ideal for: exterior doors, interior doors with saddle thresholds, retrofit weatherproofing projects.

Order the CRL U-Shaped Door Bottom (17VRA48) for reliable weather sealing and simple installation.
