CRL 48 in Dark Bronze Anodized Aluminum U-Shape Door Bottom Seal
CRL 48 in Dark Bronze Anodized Aluminum U-Shape Door Bottom Seal
Regular price
$69.24 CAD
Regular price
Sale price
$69.24 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 17VRD48
Shipping Weight: 1.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Bottoms
Yes
Finish/Color
Dark Bronze

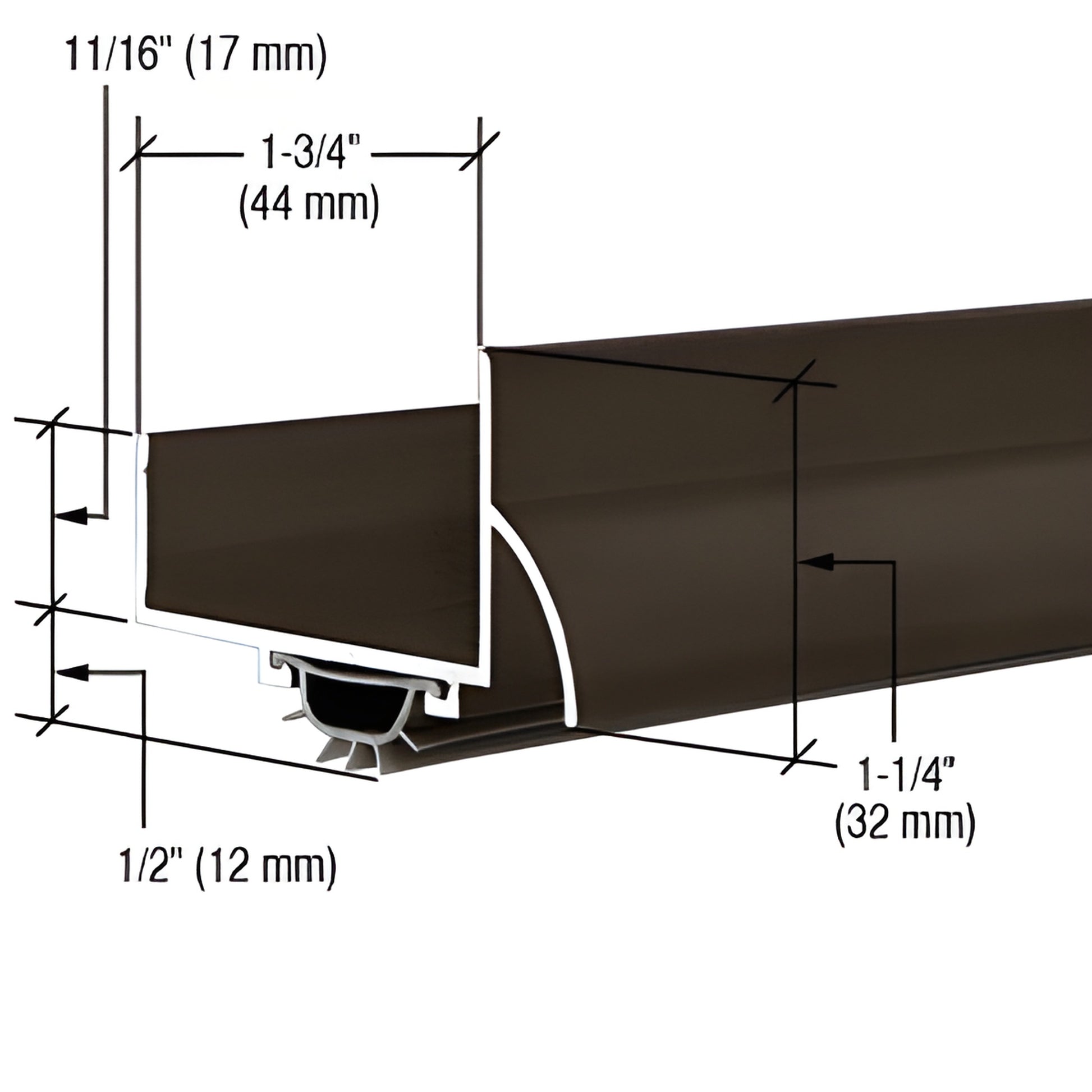

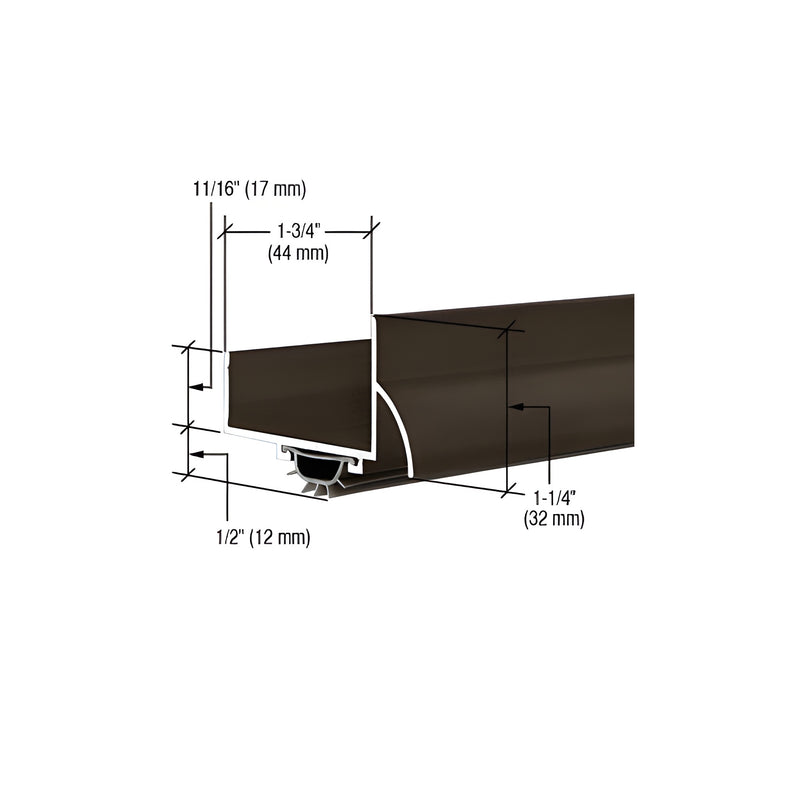

Front Face Height
1-1/4 in. (31.8 mm)
Height
1-1/4 in. (31.8 mm)
Length
47 in. (1193.8 mm)
Vinyl Height
1/2 in. (12.7 mm)
Width
1-3/4 in. (44.5 mm)
With Full Notch
No
Overview
- For 1-3/4" (44 mm) Doors
- Drip Cap Diverts Rain from the Door
- Vinyl Seal Keeps Out Weather
This CRL U-Shaped Door Bottom (SKU: 17VRD48) features an aluminum drip cap that directs rain away from the threshold and an integrated vinyl insert that provides a continuous weather seal. Designed for 1-3/4" (44 mm) doors, it installs easily with the supplied #6 x 1/2" pan head screws and works with saddle thresholds.
Models with a 1/2" (12.7 mm) wide full-notch fabrication are available to prevent interference with door stops and existing weatherstrips, making this an ideal aluminum door threshold seal for retrofit and new-install applications.
Key differentiators: aluminum drip cap for enhanced water diversion, U-shaped profile for snug fit, and durable vinyl weatherseal for reliable protection. Order SKU 17VRD48 today to improve door weather resistance.
