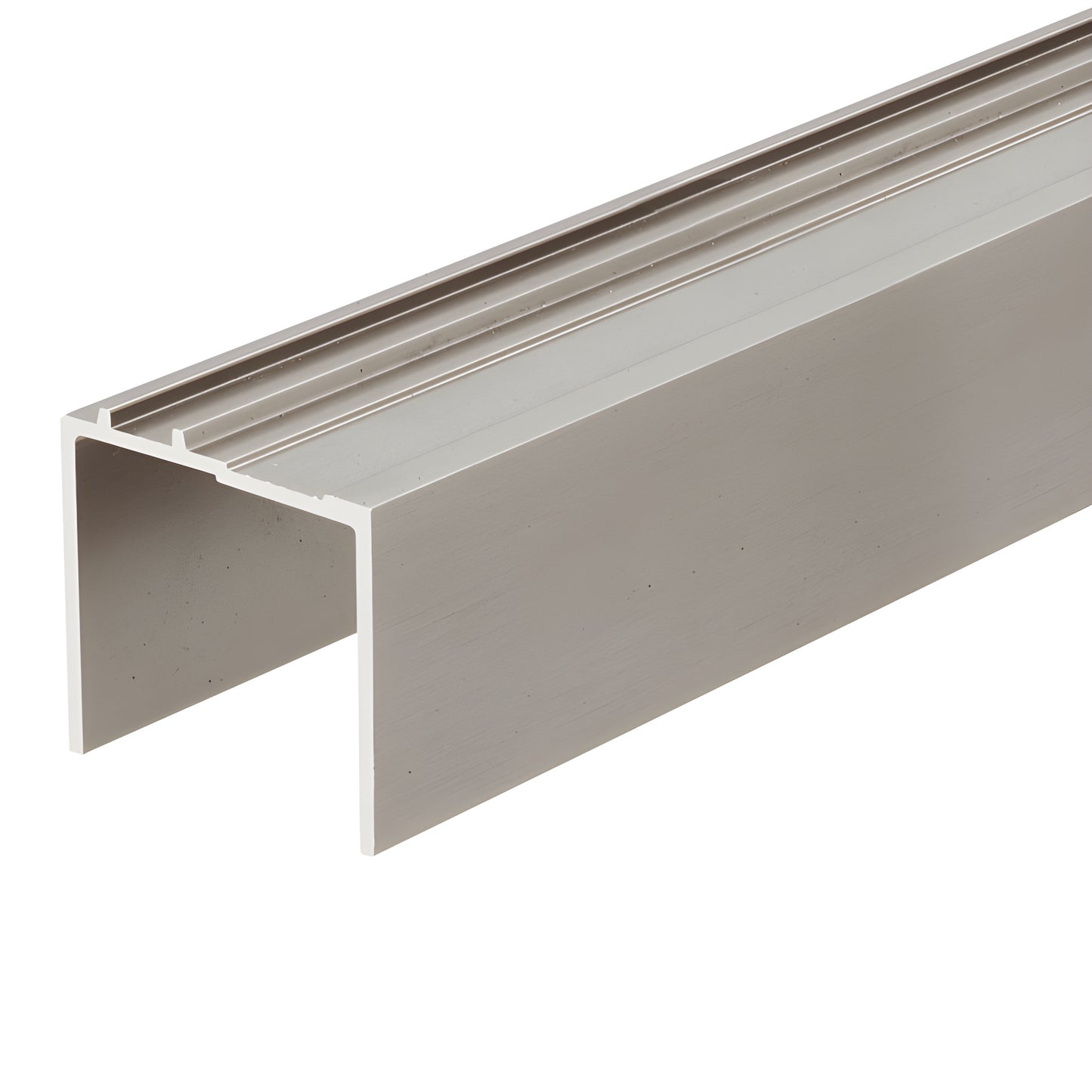

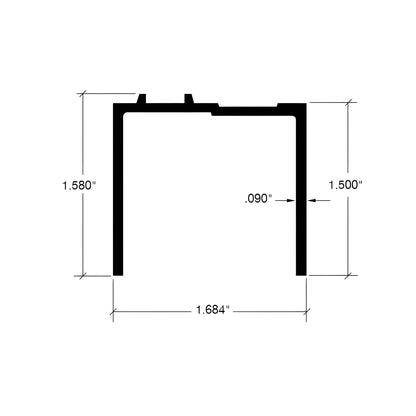

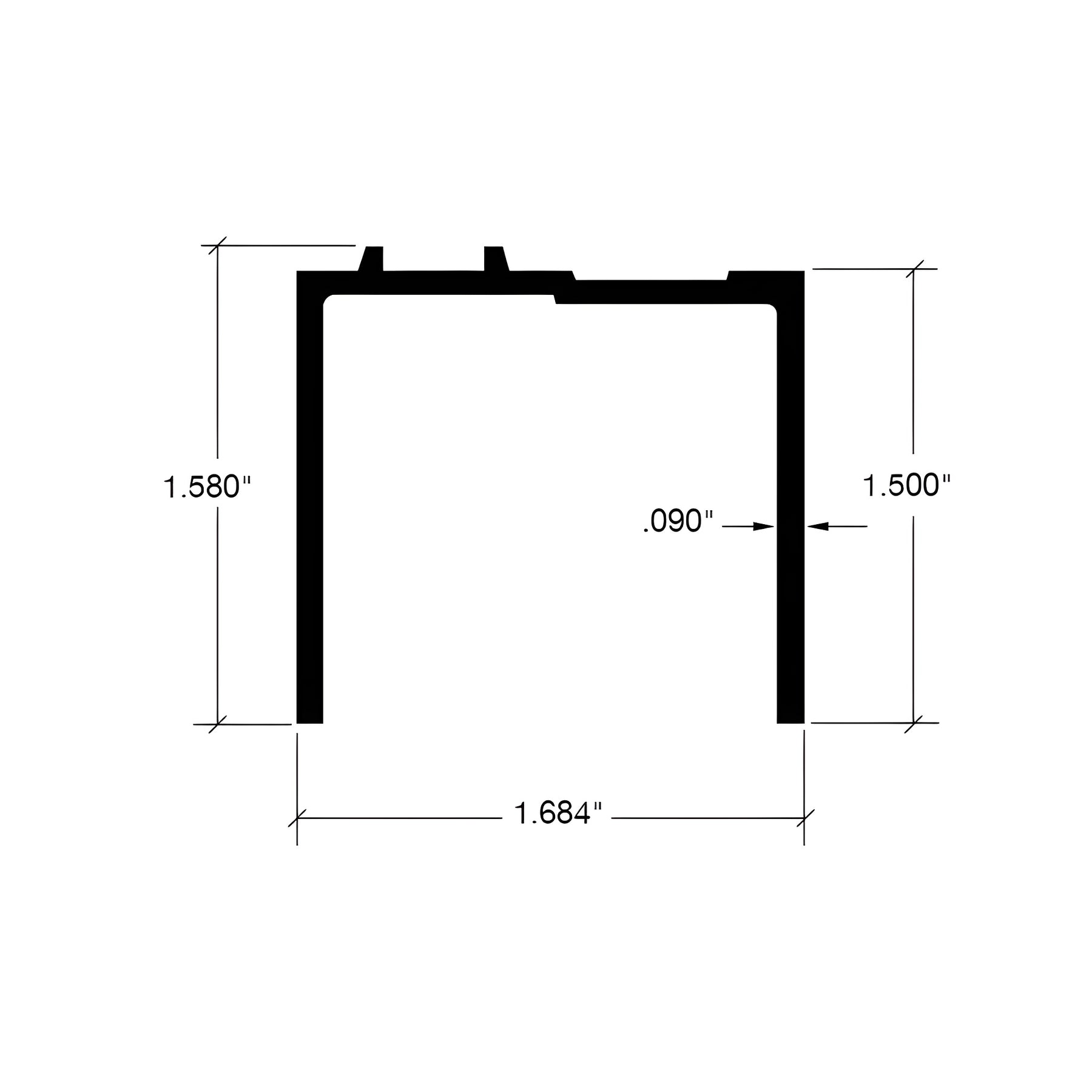

CRL 72-inch Brushed Nickel Sill Spacer Extrusion

• Field-fabricate to fit your opening
• Use with monolithic tempered glass
• Bottom sill spacer can be cut on a taper to level the sill

CRL Tapered Sill Adapter for CK/DK Cottage and EK Suite Series Sliders (SKU: DK7172BN) adds versatility to frameless sliding shower door kits and retrofit projects. Designed for CK/DK Cottage and EK Suite series sliders, this adapter works with stock headers, bottom sills, sidelite sills, side jambs, top hangers and related accessories to build a complete frameless sliding shower enclosure.

Use these components to field-build the enclosure you need, or send CRL a drawing with dimensions and we’ll assemble a customized kit (glass and silicone not included). Installation instructions are included with each custom kit.

NOTE: All fixed panels must be 3/8" (10 mm) thick tempered glass.

SPECIFICATIONS:
Material: Extrusions (Aluminum); Towel Bar (Brass Tubing); Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) — glass not included
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob – one 1/2" (12 mm) diameter hole; Top Hangers – four 1/2" (12 mm) diameter holes (two per glass panel)

Why choose DK7172BN? Tapered sill design allows on-site adjustment for out-of-level thresholds, supports monolithic tempered glass, and integrates with CRL’s complete accessory line for fast kit assembly.

Contact CRL with your shower opening dimensions to order a custom kit or buy components now to begin fabrication.
