Product Details
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The American Style Patch Lock is a heavy-duty version of the AMR205 Lock. The taller profile housing provides additional security due to more glass being secured inside the lock housing. This lock can only be installed in top and bottom corner applications. It can be locked with either double keyed cylinders or a keyed cylinder/thumbturn which are ordered separately. A keeper is supplied with optional keepers available to accommodate most installations.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
COMES WITH: Template and Instructions
DOES NOT INCLUDE:

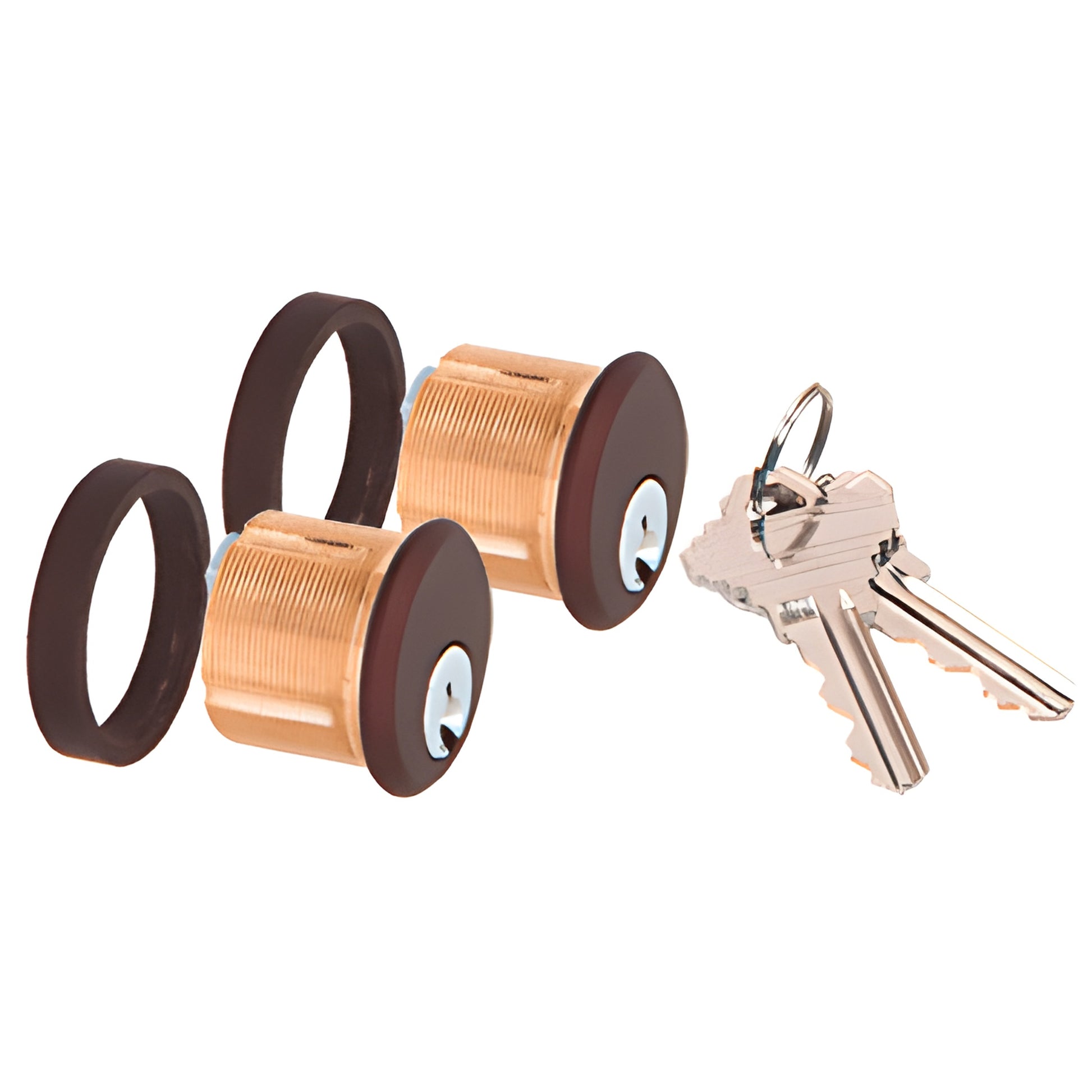

Double Keyed Cylinders; Keyed Cylinder/Thumbturn; Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
