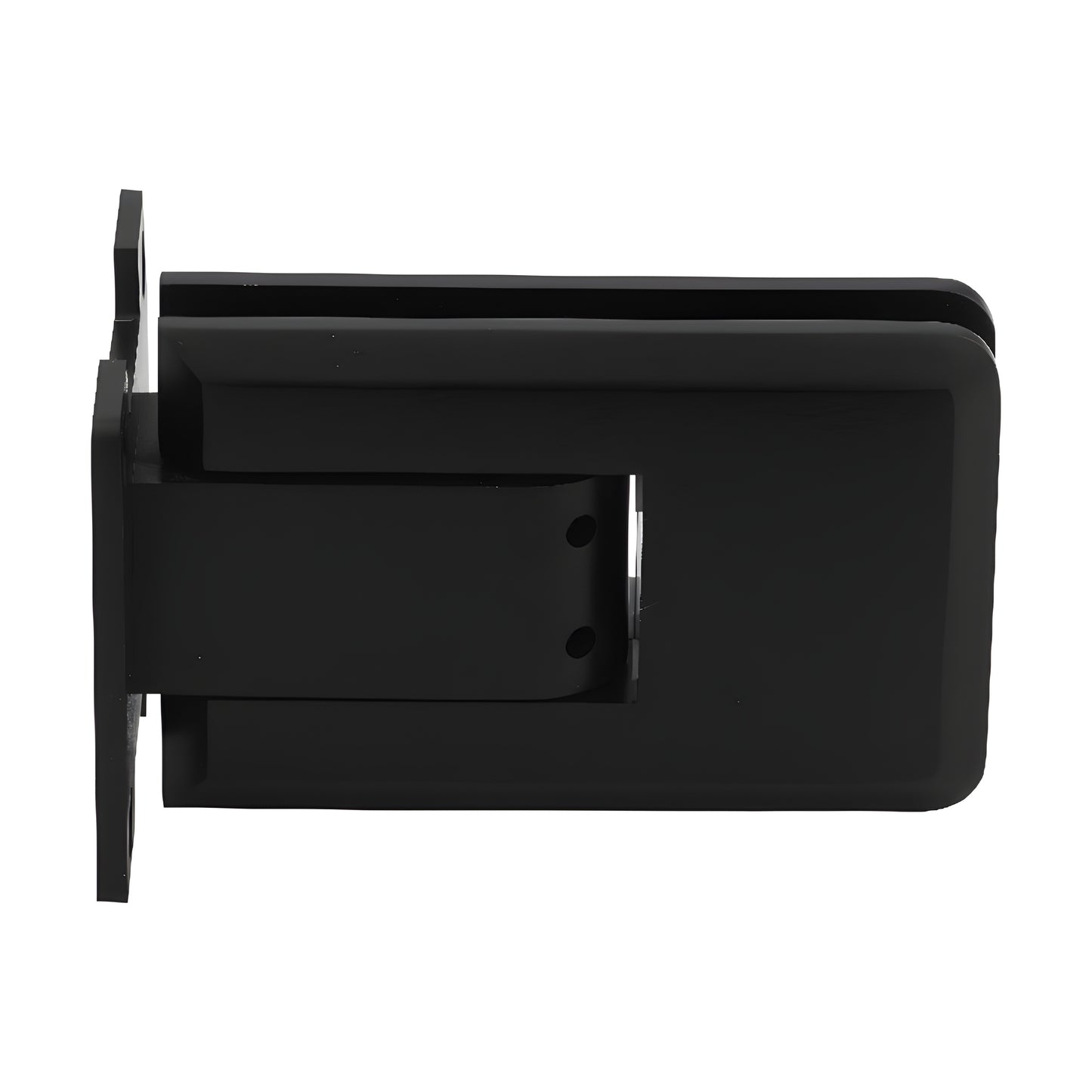

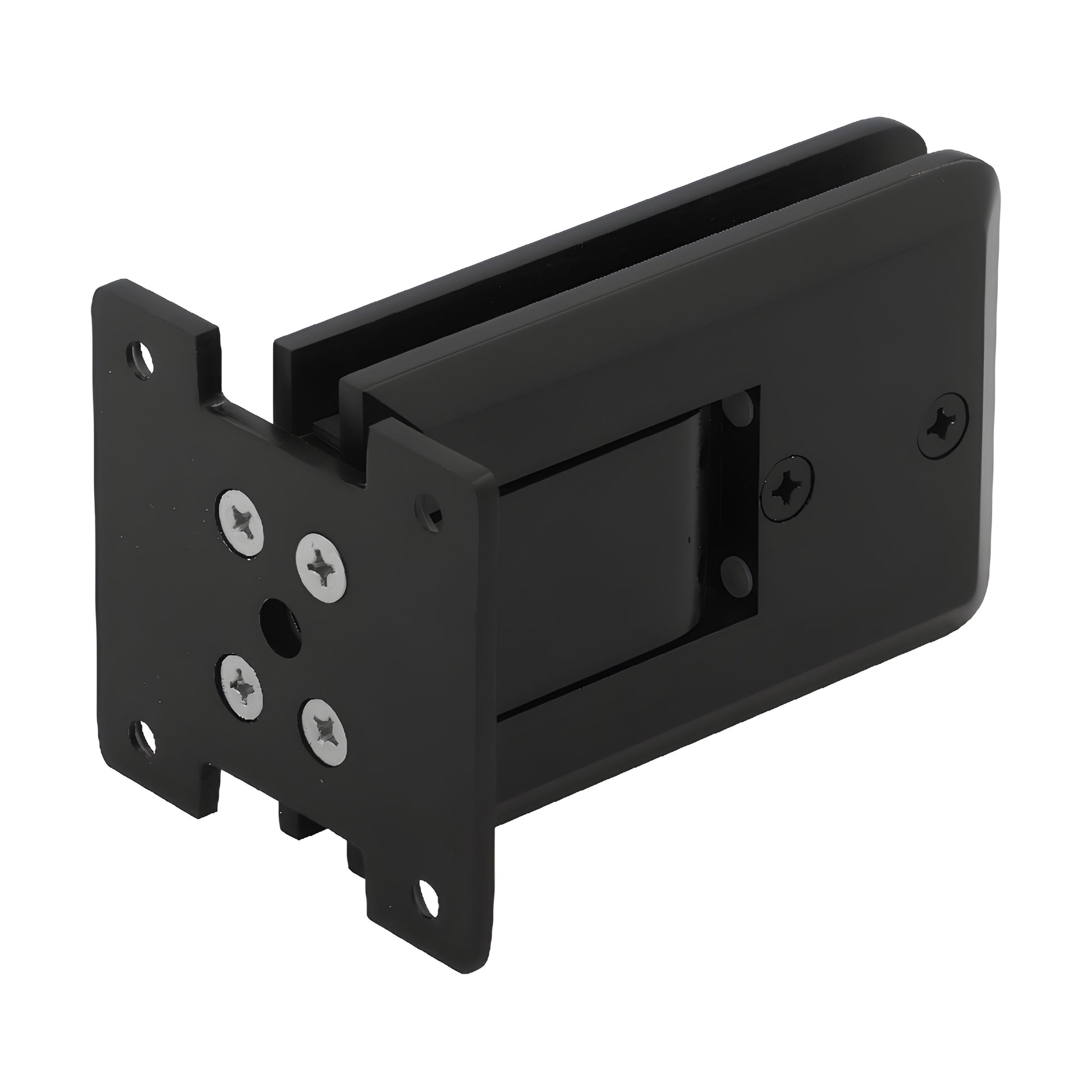

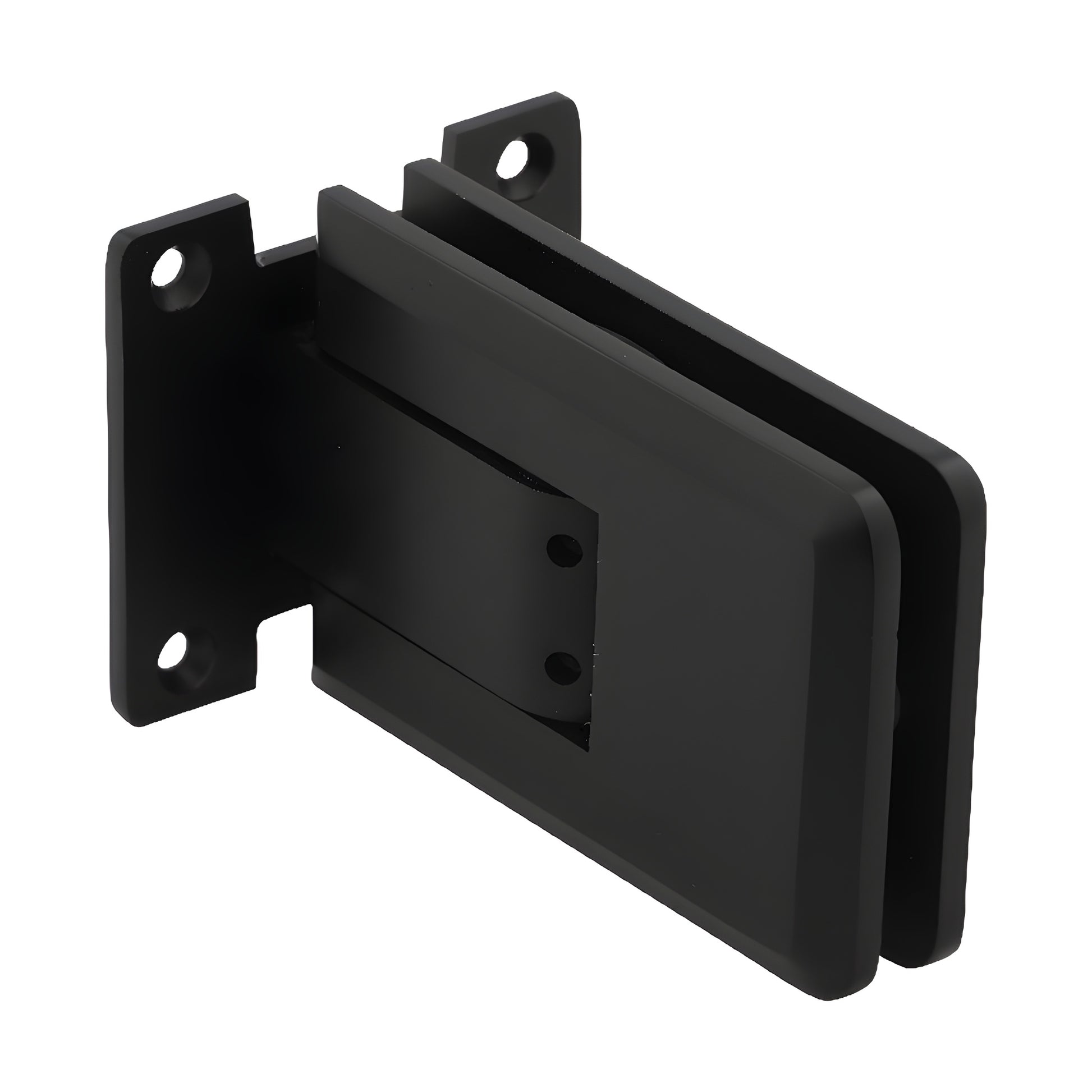

CRL Matte Black Atlas Glass Door Hinge

Item # ATL01MBL

$401.70 CAD

Finish (3)

Overview

SKUATL01MBL
Sold As1 Each
AdjustableYes
Back PlateFull
Edge ProfileBeveled
Finish/ColorMatte Black
Glazing Thickness5/16 in. To 1/2 in. (8 mm To 12 mm)
Height3-9/16 in. (90 mm)
MaterialBrass
Maximum Door Weight140 lbs. (64 kg.)
Maximum Door Weight - 2 Hinges140 lbs. (64 kg.)
Maximum Door Width39 in. (991 mm)
Mounting TypeWall Mount
Self-CenteringYes
SeriesAtlas
Width5-7/8 in. (149 mm)

Description

  • Self-Centering Function
  • Hold Open at 90 Degrees
  • Use Monolithic Tempered Glass
  • Easy to Set Closed Position
  • Ideal for Large Interior 5/16", 3/8" or 1/2" (8, 10 or 12 mm) Tempered Glass Doors and Gates
  • Easy Closed Position Adjustment for Double Door or Inline Panel Applications
  • Five Architectural Finishes

The automatic self-centering function with adjustable spring strength eliminates the need for any closer mechanism, and will self-center the door from any position. When fully opened, the Atlas Hinge will hold open at 90 degrees. These Hinges offer easy to set custom closed positioning.

The solid brass construction and stainless steel components make the Atlas Hinge a natural for environments that may encounter excess moisture.

NOTE: Do not exceed two Hinges per door.

SPECIFICATIONS:
Glass Thicknesses: 5/16" to 1/2" (8 to 12 mm)
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Self-Centering From 0 to 50 Degrees and Precise Closing to 0 Degrees
Special Feature: Holds Open at 90 Degrees;Easy to Set Closed Position
Notch and Hole Required
Includes: Gaskets, Phillips Screws, and Glass Fabrication Dimensions


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
